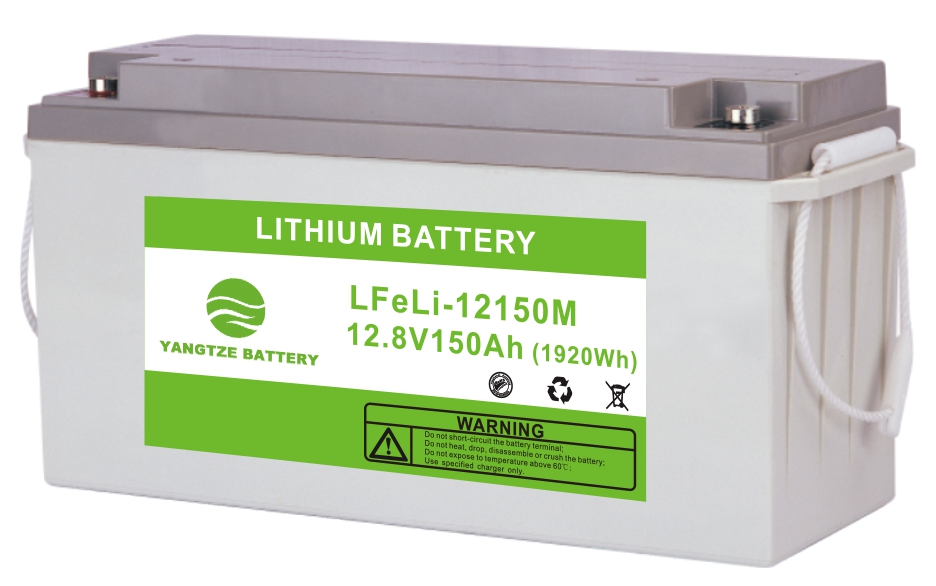

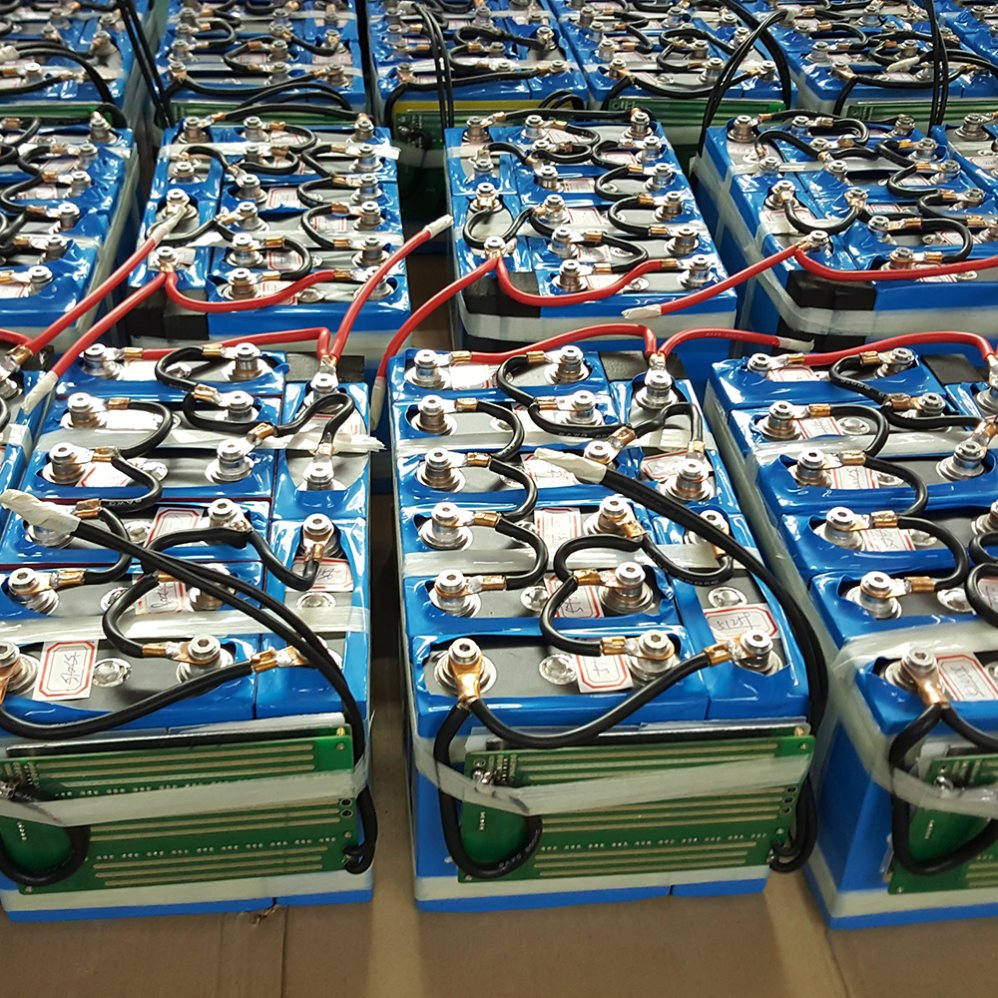

LiFePo4 Battery Lithium Iron Phosphate Lithium Ion Battery 12V 150AH
Offers up to 20 times longer cycle life and five times longer float/calendar life than lead acid battery.
About 40% of the weight of a comparable lead acid battery. A "drop-in" replacement.
Delivers twice the power of lead acid batteries, even at high discharge rates.
Lithium Iron Phosphate chemistry eliminates risk of explosion due to high impact or short circuit.
| Electrical Characteristics | |
| Nominal Voltage | 12.8 V |
| Nominal Capacity | 150Ah |
| Energy | 1920 Wh |
| Internal Resistance(AC) | ≤20mΩ |
| Cycle Life | >2000 cycles @ 1C 100% DOD (Up to 8000 seasonal) |
| Self Discharge | <3% per month |
| Standard Charge | |
| Charge Voltage | 14.6±0.2V |
| Charge Mode | 0.2C to 14.6V, then 14.6V, current to 0.02C (CC/CV) |
| Max. Charge Current | 120A |
| Standard Discharge | |
| Continuous Current | 120A |
| Max. Pulse Current | 140A (<3s) |
| Discharge Cut-off Voltage | 8V |
| Mechanical & Environmental | |
| IP Class | IP65 |
| Charge Temperature | 0ºC to 55ºC |
| Discharge Temperature | -20ºC to 60ºC |
| Terminal Type | M8 |
