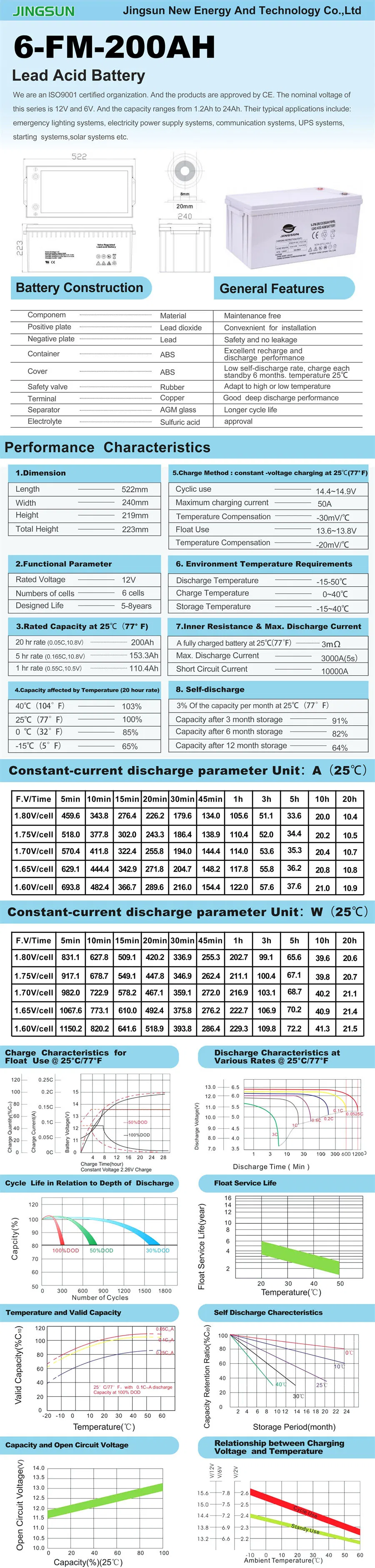

| 1. Functional Parameter | 5. Environment Temperature | ||
| Nominal Voltage | 12V | Discharge Temperature | -20~60ºC |
| Nominal Capacity (10hr) | 200Ah | Charge Temperature | 0~50ºC |
| Number of Cells | 6 cells | Storage Temperature | -20~60ºC |
| 2. Rated Capacity at 25ºC | 6. Resistance & Max. Discharge | ||
| 10 hour rate (0.1C, 10.8V) | 200Ah | Fully Charged Battery (25ºC) | 3.5mΩ |
| 3 hour rate (0.25C, 10.8V) | 144.7 Ah | Max. Discharge Current | 3000A (5s) |
| 1 hour rate (0.55C, 10.5V) | 110.1Ah | Short Circuit Current | 10000A |
| 3. Capacity & Temperature | 7. Self-discharge at 25ºC | ||
| 40ºC (104° F) | 103% | After 3 month storage | 91% |
| 25ºC (77° F) | 100% | After 6 month storage | 82% |
| 0ºC (32° F) | 85% | After 12 month storage | 64% |
| 4. Dimension and Weight | 8. Constant Voltage Charging | ||
| Length / Width | 522mm / 240mm | Cyclic Use | 14.4~14.9V |
| Height / Total Height | 219mm / 223mm | Max Charging Current | 25A |
