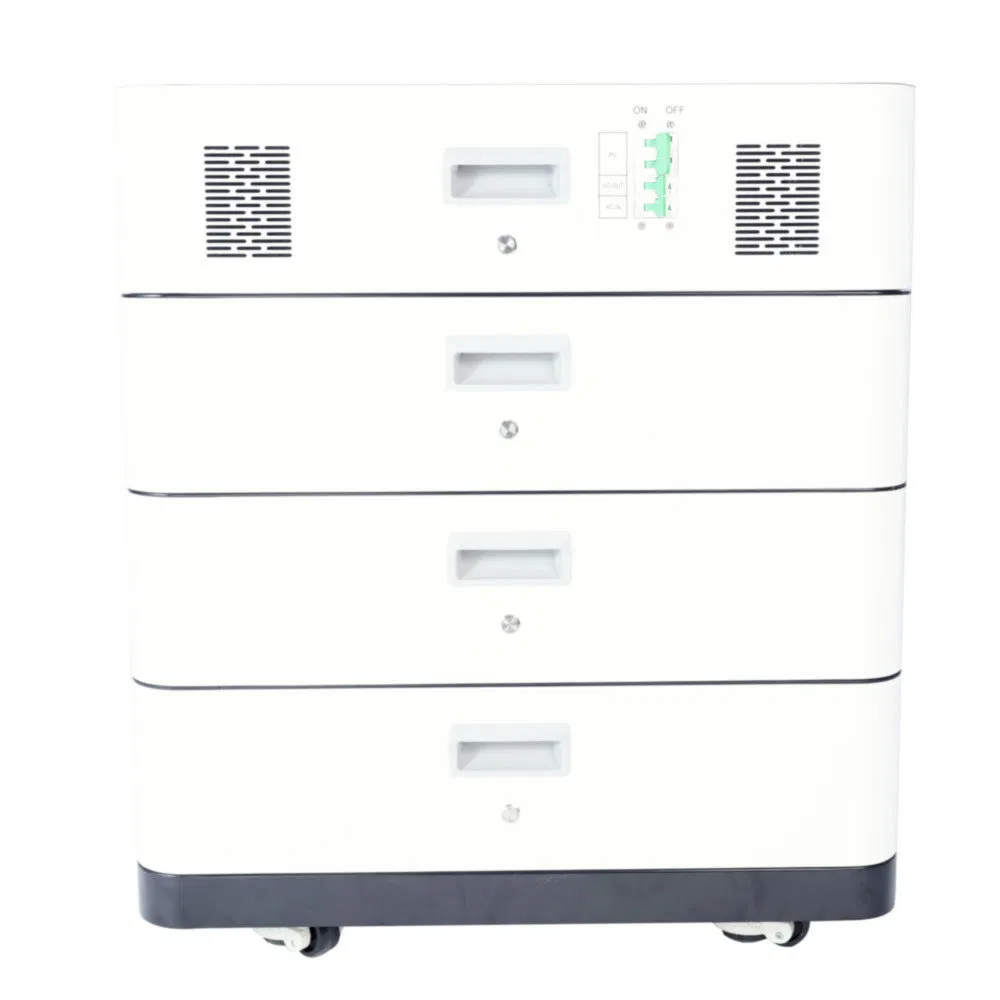

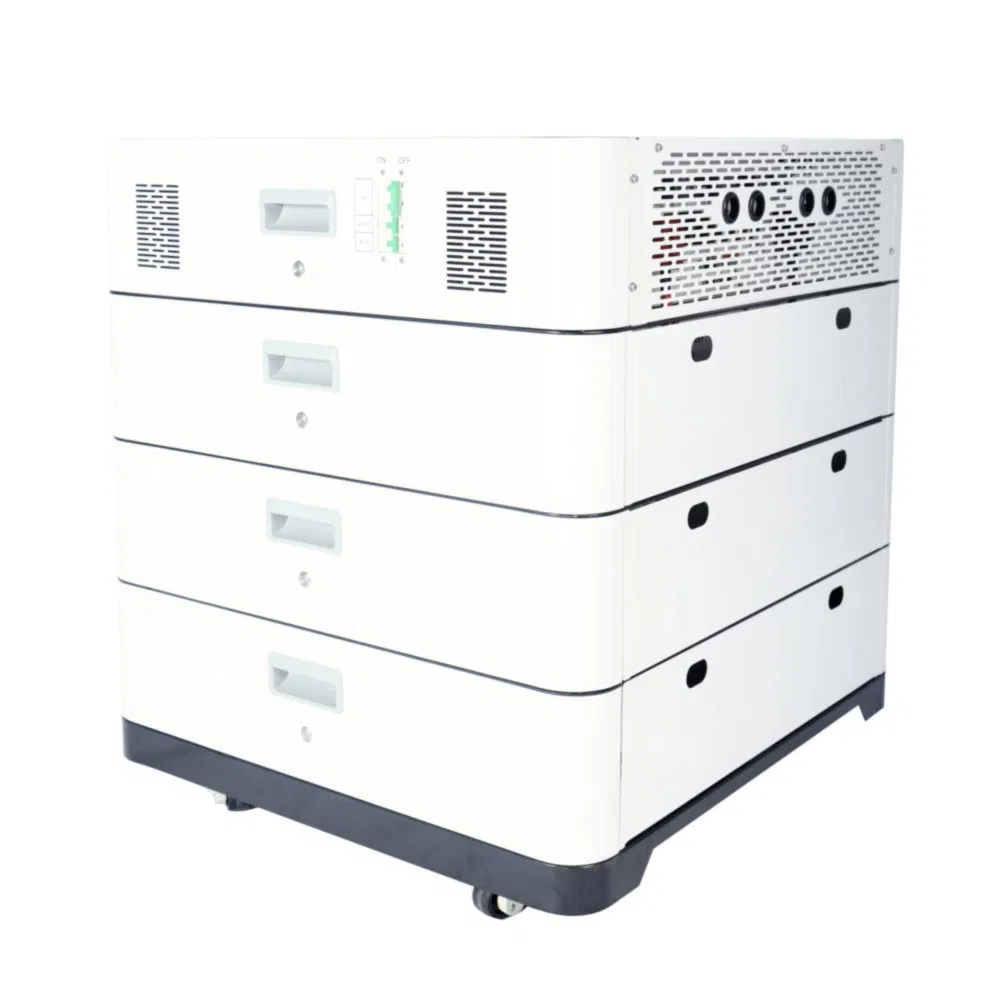

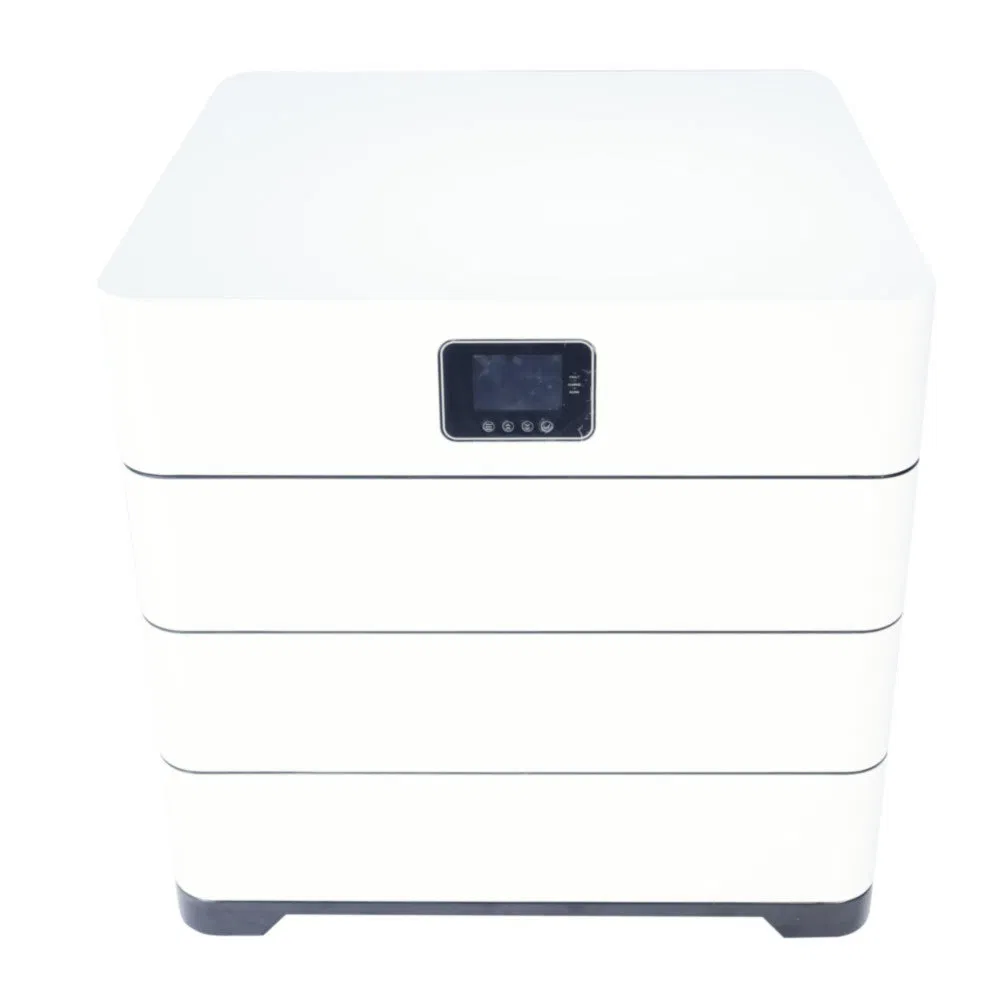

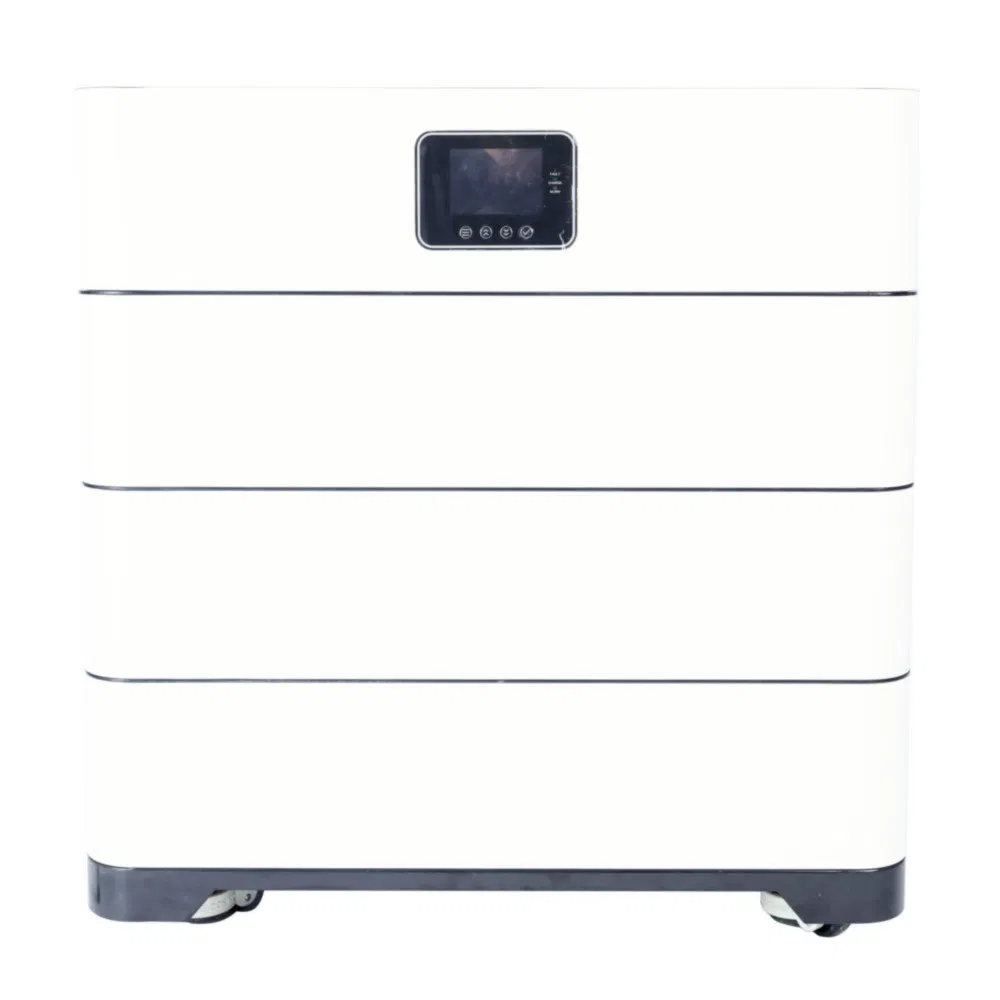

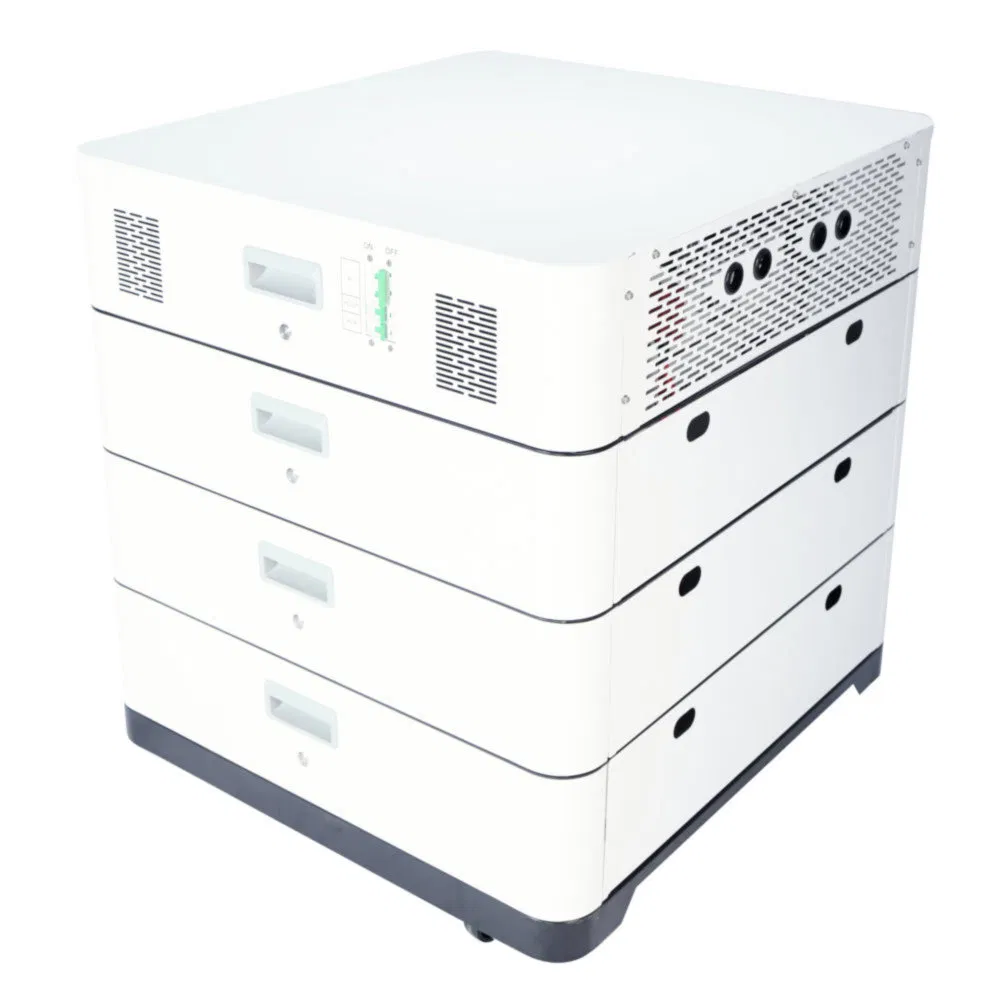

High Consistency Vibration Resistance Stacked Lithium Storage Battery for Residential

Warranty:	5 Years
Cycle Life:	6000 Cycles
Single Module Capacity:	5.12kwh

Basic Information

Model NO.:Stacking Storage Power Supply

Standard Voltage:51.2V

Voltage Range:43.2V~57.6V

Discharge Current:100A

Charge Current:50A

DOD:90%

Installation:Stacked Modular

Module Dimension:550*500*170mm

Net Weight:46kg/Module

Input Power:PV1:5500W / PV2:5500W

Input Voltage:220/230/240VAC

Capacity:1,000,000 pieces/Year

Product Description

MODULAR STACKABLE HOME ENERGY STORAGE SYSTEM

Unlock true energy independence with our Stackable Home Energy Storage System — a powerful, modular solution designed for residential solar storage, backup power, and off-grid living.

🔋

Scalable Capacity

Each 5.12kWh LiFePO4 module can be stacked from 1 to 5 units, delivering up to 25.6kWh.

☀️

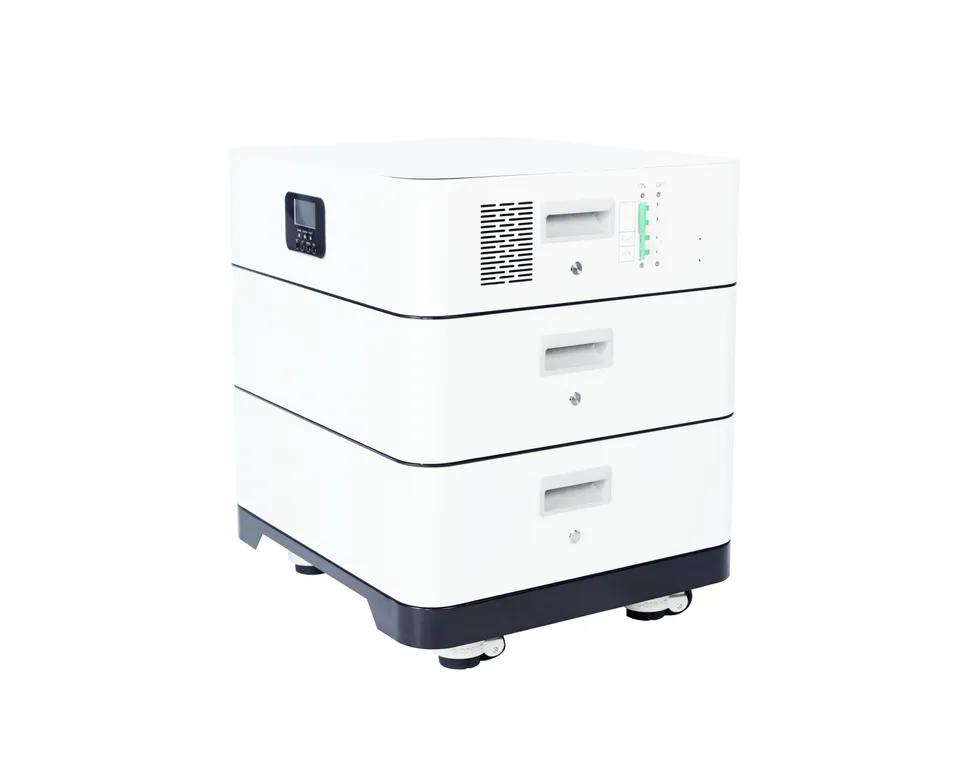

Hybrid Integration

Integrates a 5000W pure sine wave inverter and a 5500W MPPT solar charge controller.

⚡

UPS Function

Built-in UPS ensures reliable, uninterrupted power during grid failures with millisecond response.

Technical Specification

Model Parameters	SMP-EU202-2	SMP-EU202-3	SMP-EU202-5
Module Number	2 PCS	3 PCS	5 PCS
Total Energy	10.24kWh	15.36kWh	25.6kWh
Standard Voltage	51.2V
DOD	90%
PV Max Input Power	5500W + 5500W
MPPT Voltage Range	125~425VDC
Rated Output Power	10000W (Battery mode)
Communication	CAN / RS485 / RS232 / WIFI

Detailed Visuals

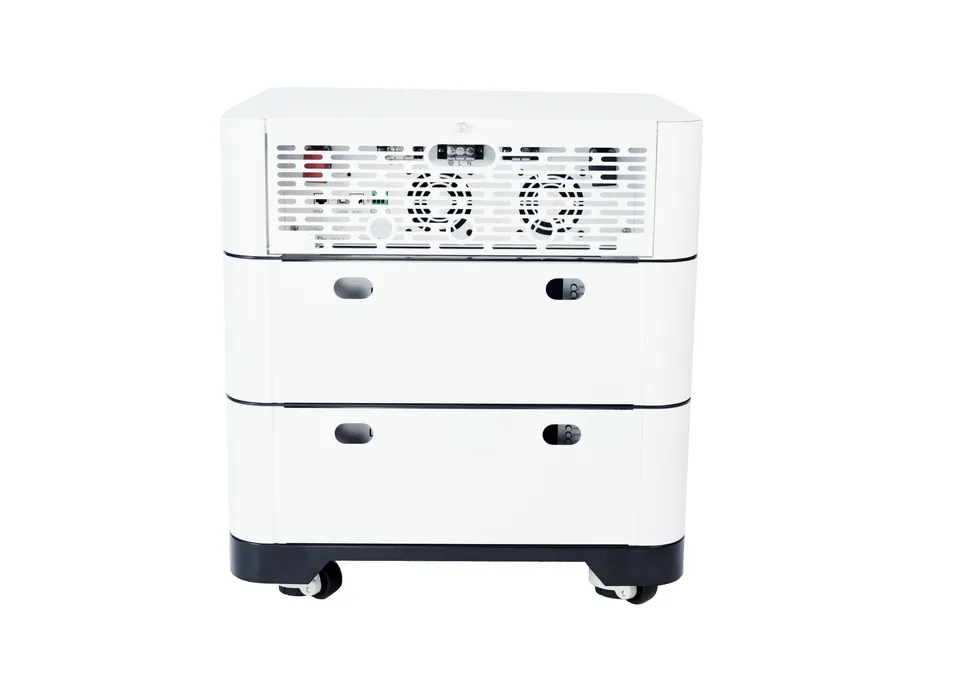

Modular & Scalable: Easily expand capacity as needs grow.

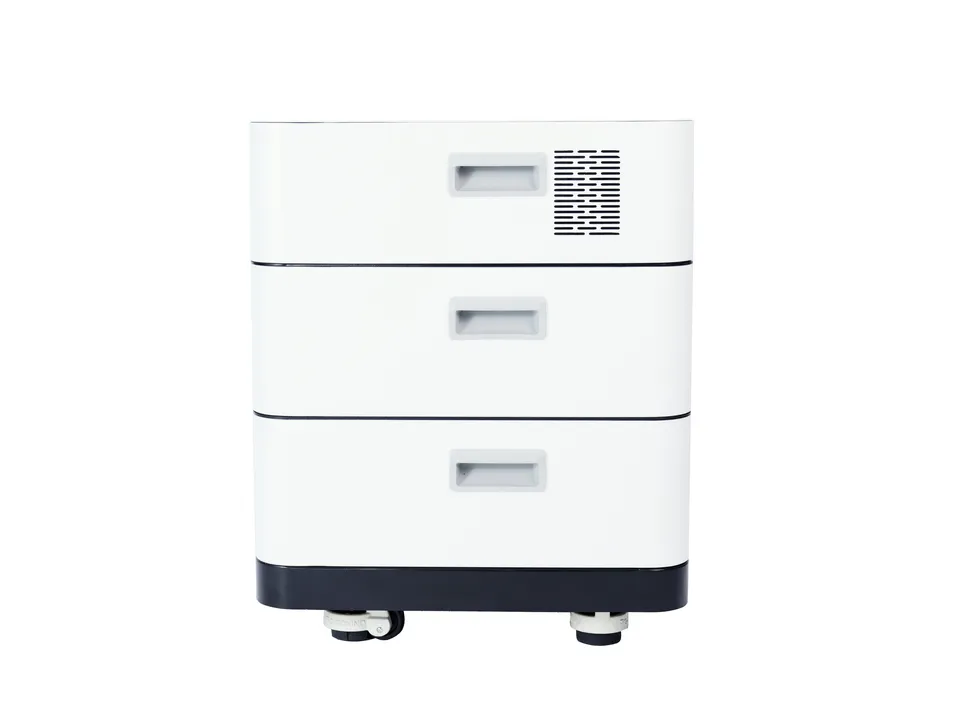

LiFePO4 Tech: Long-lasting cells with 6,000+ cycles.

Integrated Inverter: 5000W stable AC output.

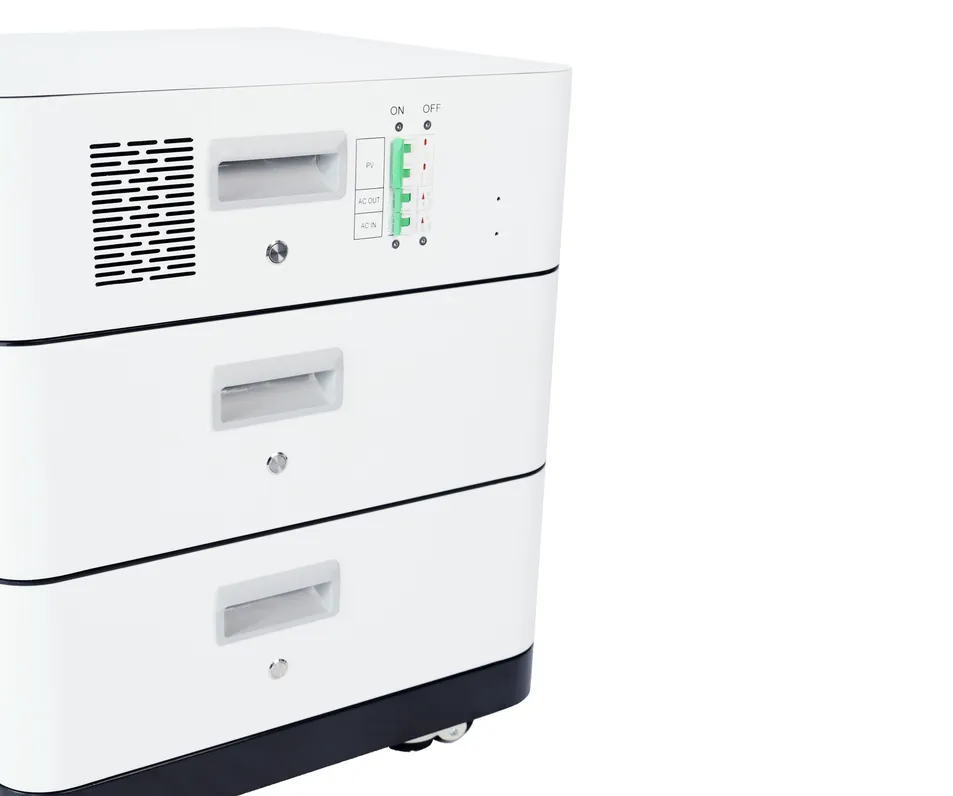

Wide MPPT Range: High solar harvest efficiency.

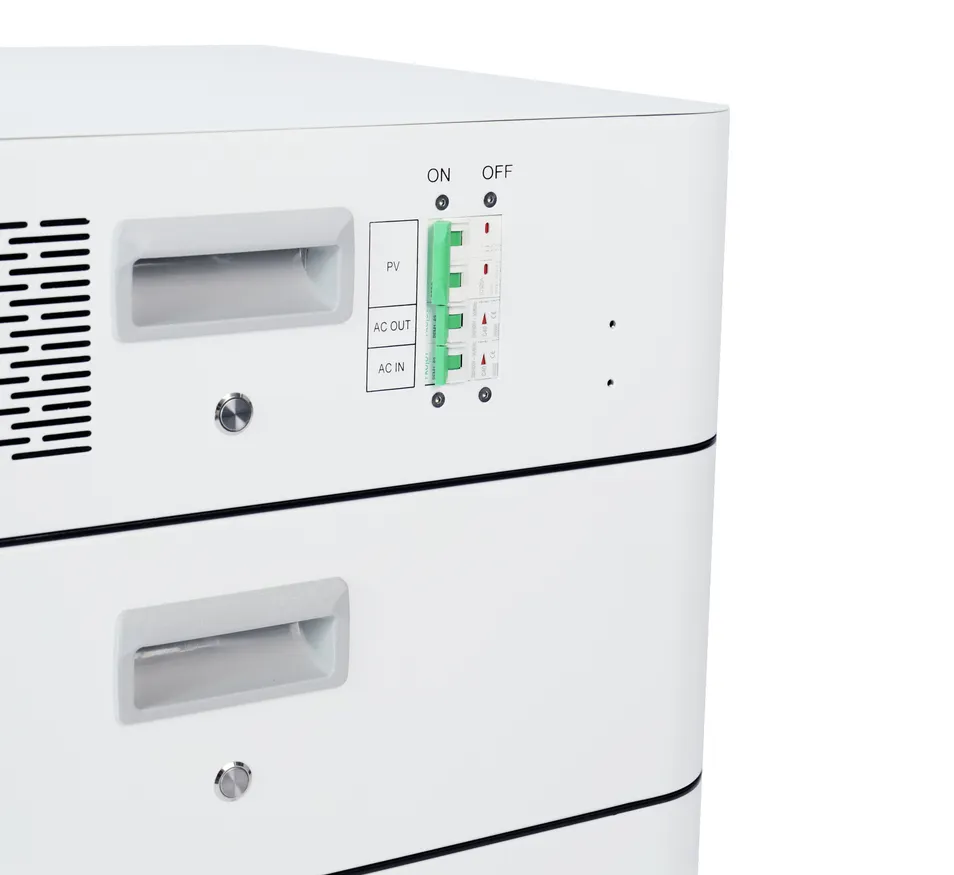

Automatic UPS: Instant switch during grid failure.

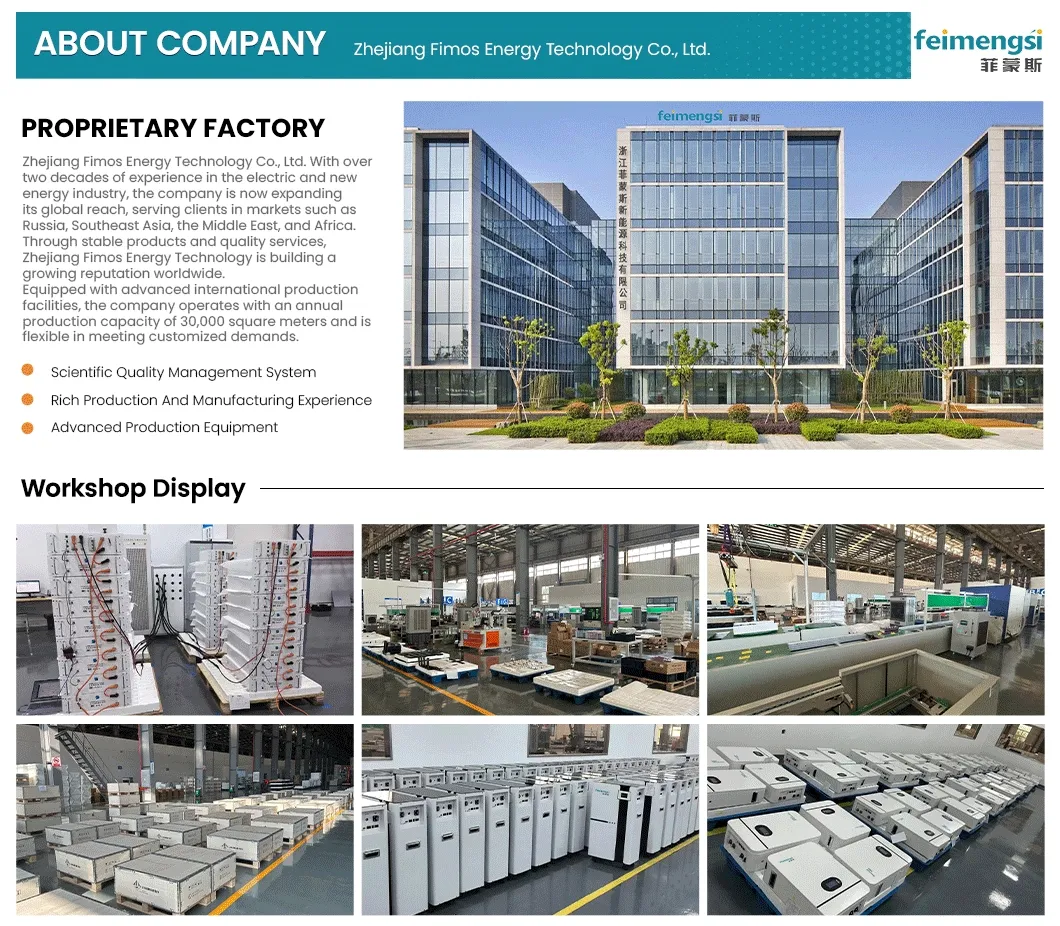

Manufacturing & Quality

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a professional manufacturer integrating industry and trade, specializing in high-consistency lithium storage solutions.

Can the battery system be customized?

We support full on-demand customization, including logo, color, and specific appearance dimensions to meet your project needs.

What payment methods do you accept?

We support multiple payment options including T/T, Western Union, PayPal, and cash. Details can be negotiated based on order volume.

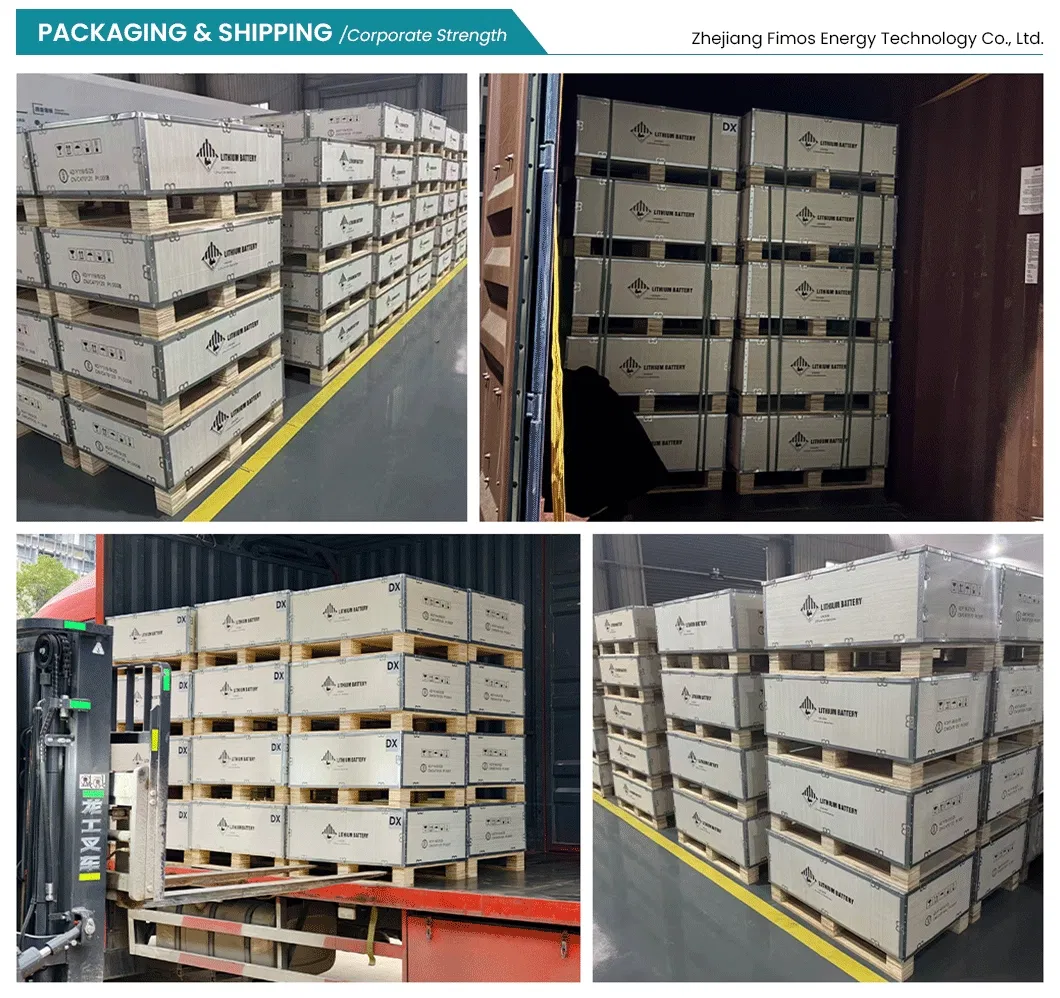

What are the available shipping modes?

Depending on the order size and destination, we offer sea, air, and land transportation to ensure safe and efficient delivery.

How can I get a detailed quotation?

Please provide your specific technical requirements and project details. Our team will design a customized solution and provide a formal price quote.

What is the lifespan of the battery modules?

Our LiFePO4 modules are built for durability, offering over 6,000 cycles with deep discharge capabilities.
