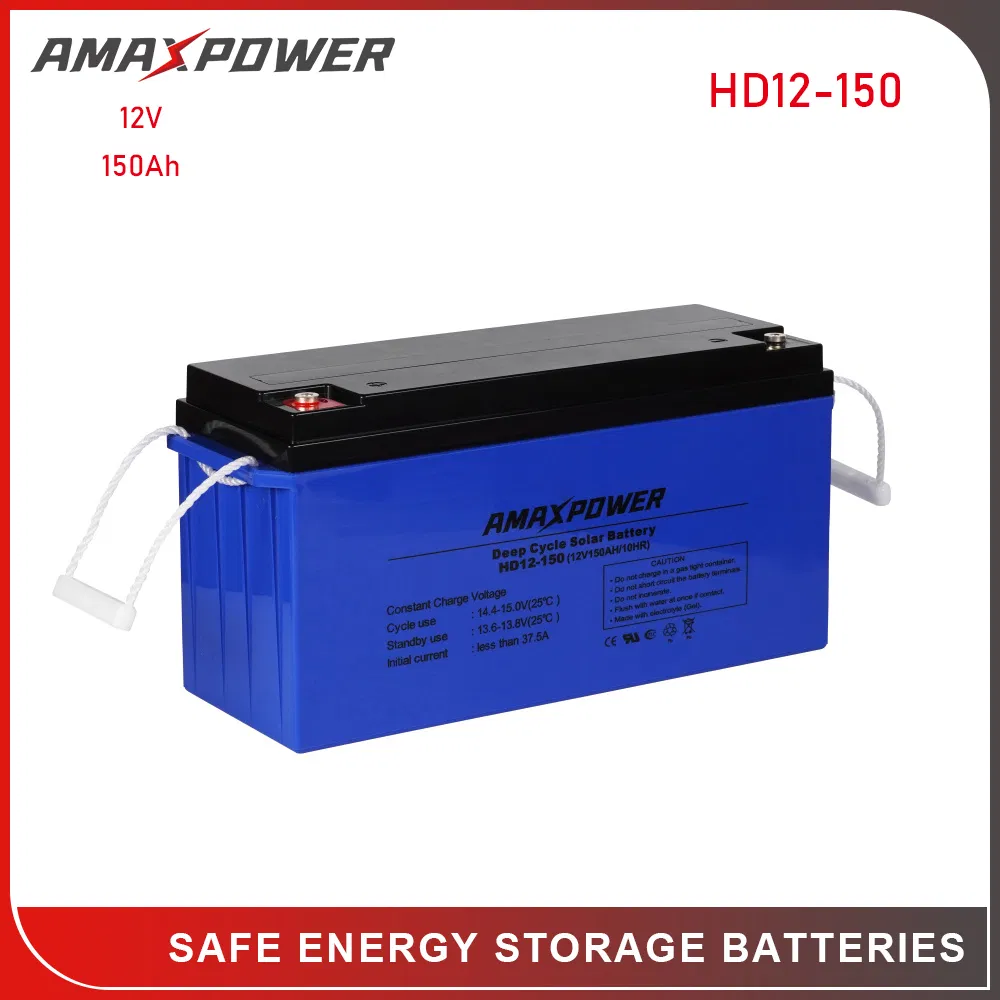

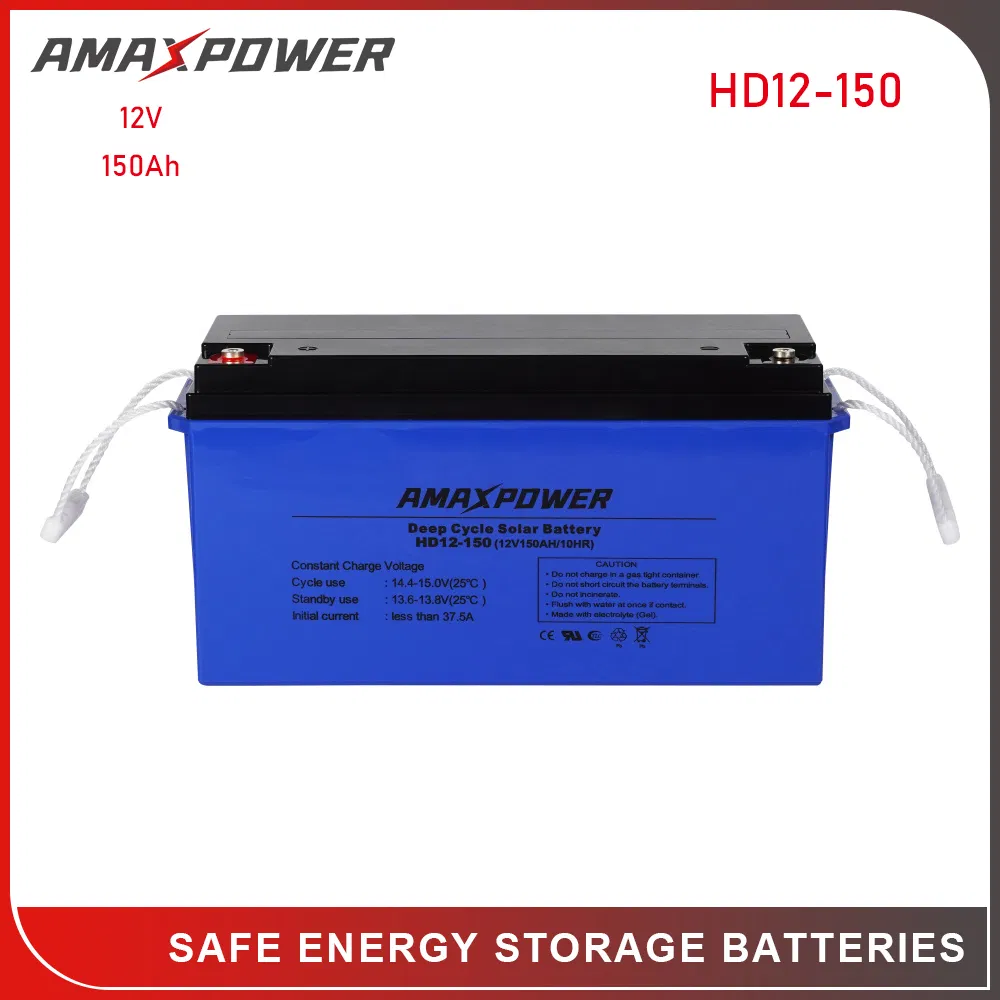

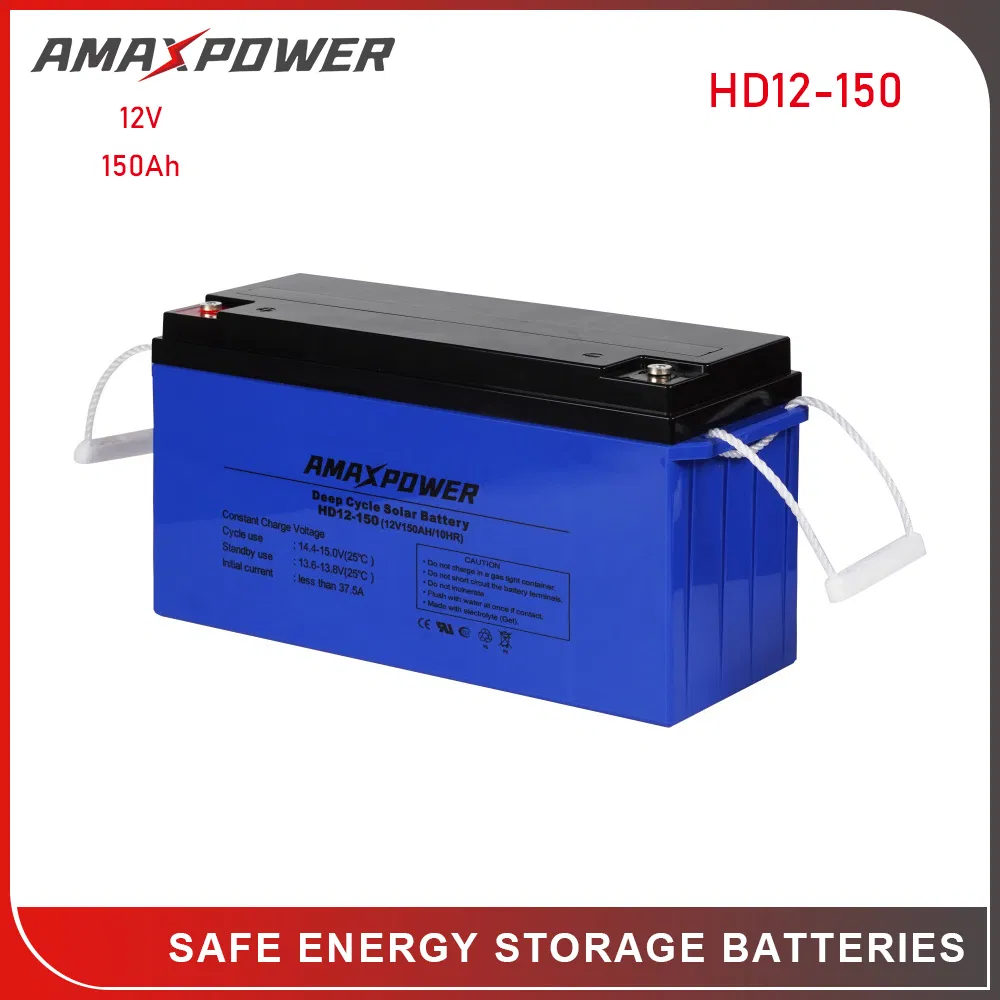

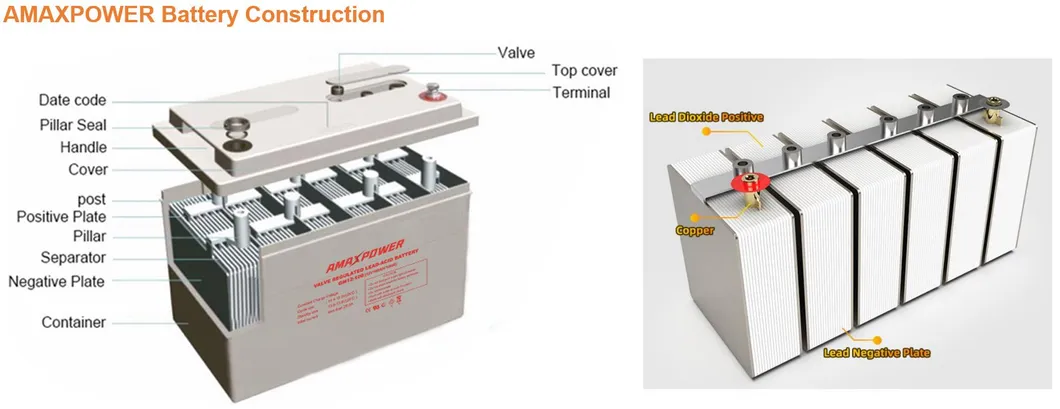

The HD Series is a maintenance-free deep cycle gel battery designed for float service with a 15-20 year design life. It offers 30% more life than standard gel batteries and 50% more than regular lead-acid AGM batteries. Utilizing 4BS lead paste technology and unique corrosion-resistant grids, it is the premier choice for frequent cycle discharge in extreme HOT and COLD environments.
Designed life exceeds 15 years in optimal float conditions.
Reliable operation from -30ºC to 60ºC environments.
99.999% lead reduces self-discharge and extends service life.
| Parameter | Value |
|---|---|
| Nominal Voltage | 12V (6 cells) |
| Nominal Capacity | 150Ah @ 10 hour-rate |
| Internal Resistance | Approx. 5.0mΩ (Full charged at 25ºC) |
| Max. Discharge Current | 900A (5S) |
| Cycle Use Voltage | 14.4 - 15.0V |
| Float Use Voltage | 13.6 - 13.8V |
| Container Material | ABS Plastic |

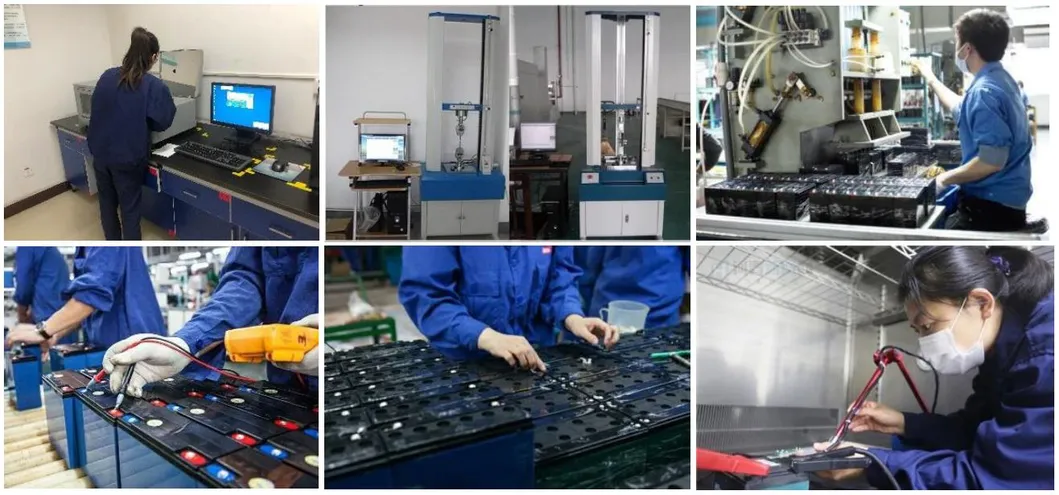

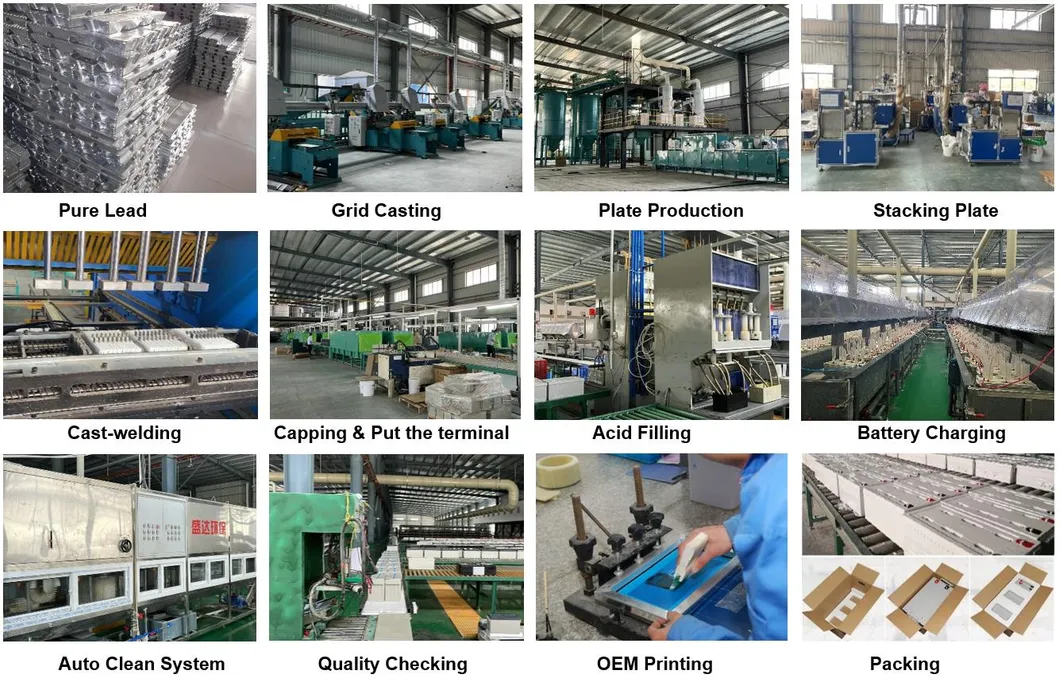

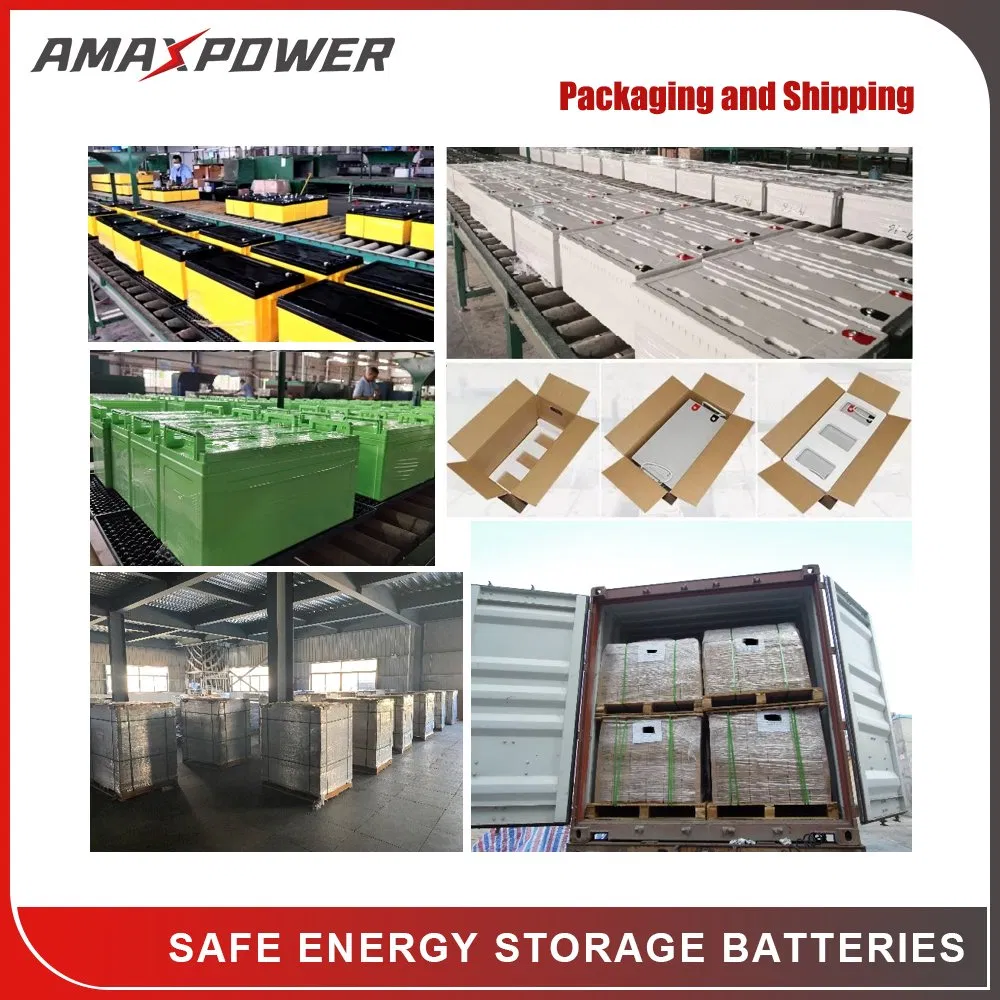

Our production facility spans 50,000 square meters with an annual capacity of 2,000,000kVAh. We strictly comply with ISO quality management systems to ensure 100% pass rates.

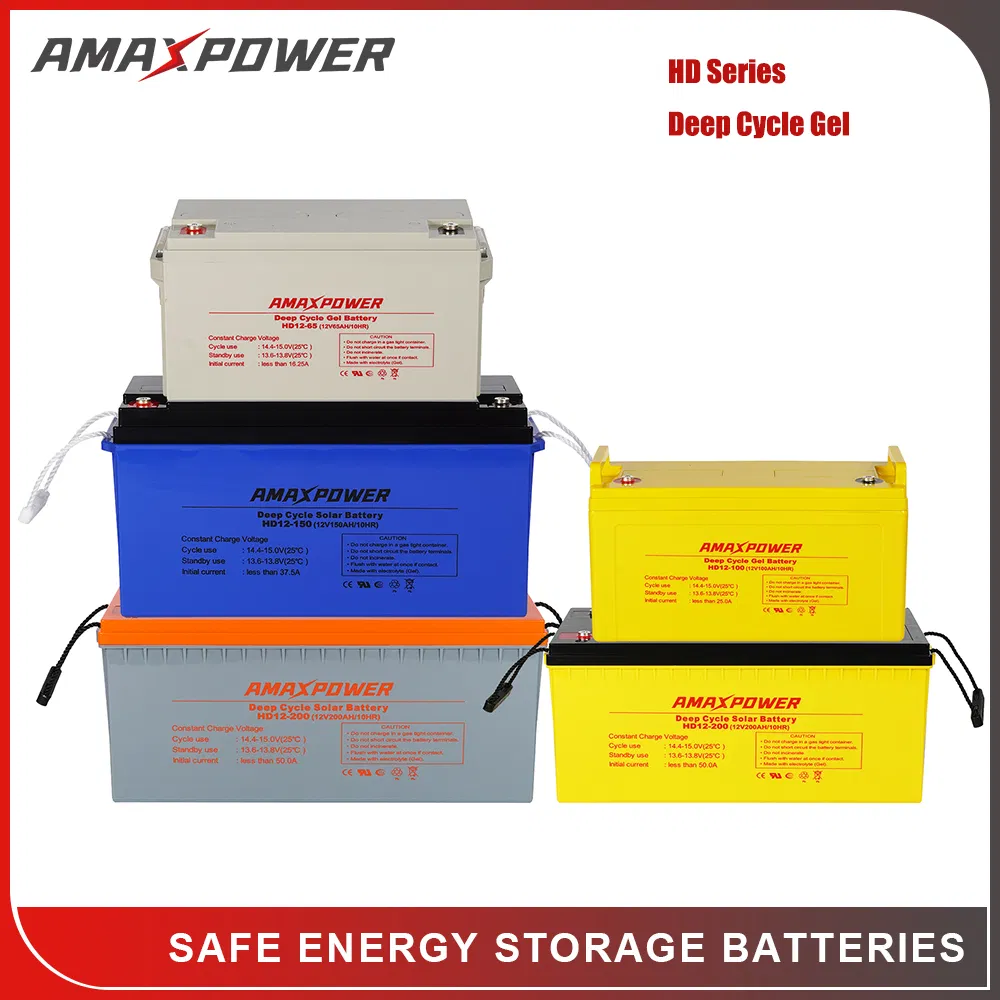

| Model No. | Voltage(V) | Capacity (AH) | Weight (Kg) | Length (mm) | Width (mm) | Height (mm) |
|---|---|---|---|---|---|---|
| HD12-38 | 12 | 38 | 12.2 | 197 | 166 | 174 |
| HD12-65 | 12 | 65 | 20.5 | 350 | 166 | 179 |
| HD12-100 | 12 | 100 | 31.5 | 407 | 174 | 209 |
| HD12-150 | 12 | 150 | 45.0 | 484 | 171 | 241 |
| HD12-200 | 12 | 200 | 64.0 | 522 | 240 | 216 |
| HD12-250 | 12 | 250 | 75.5 | 520 | 268 | 220 |
