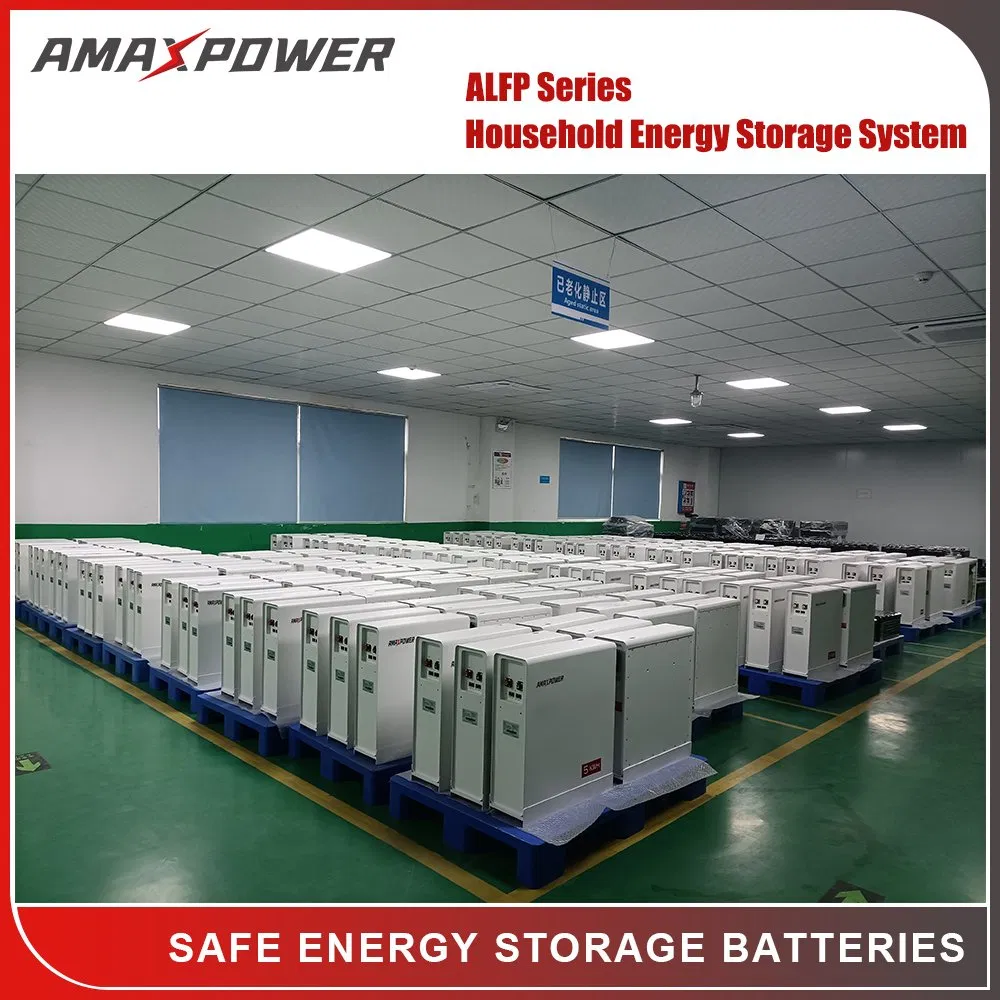

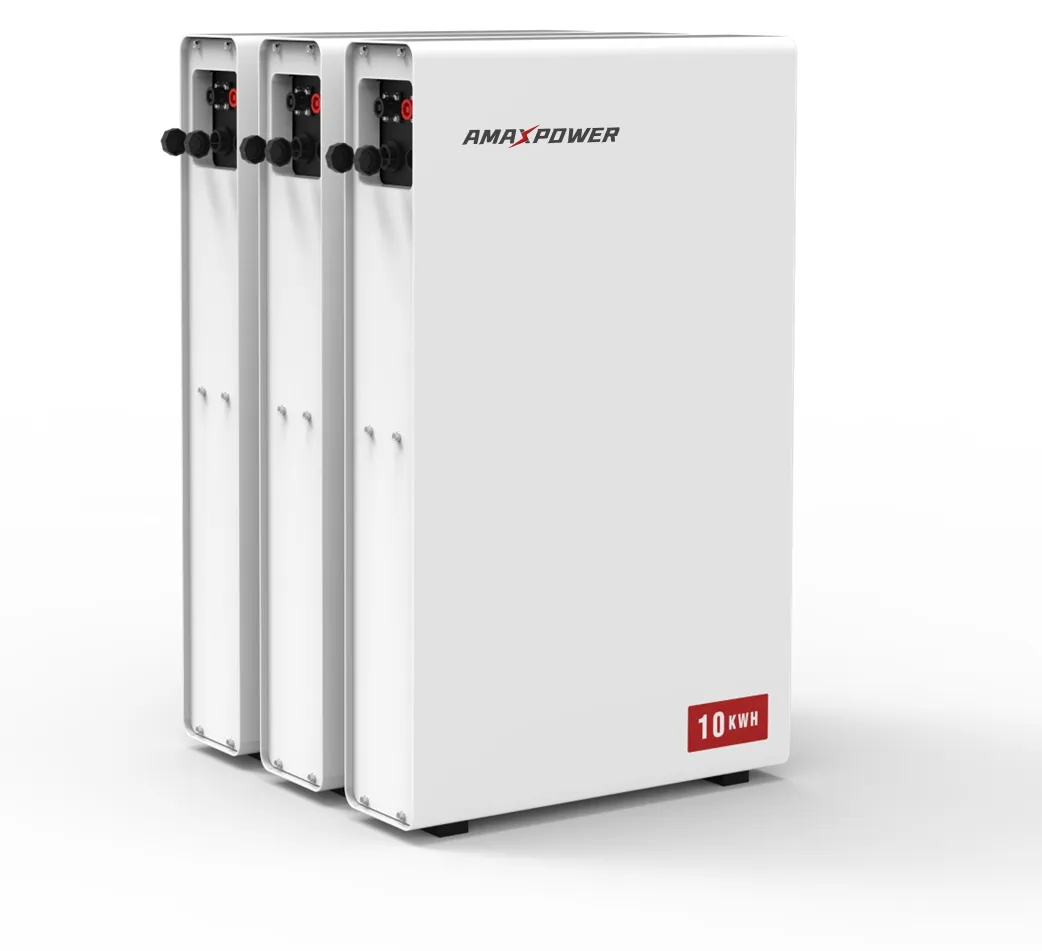

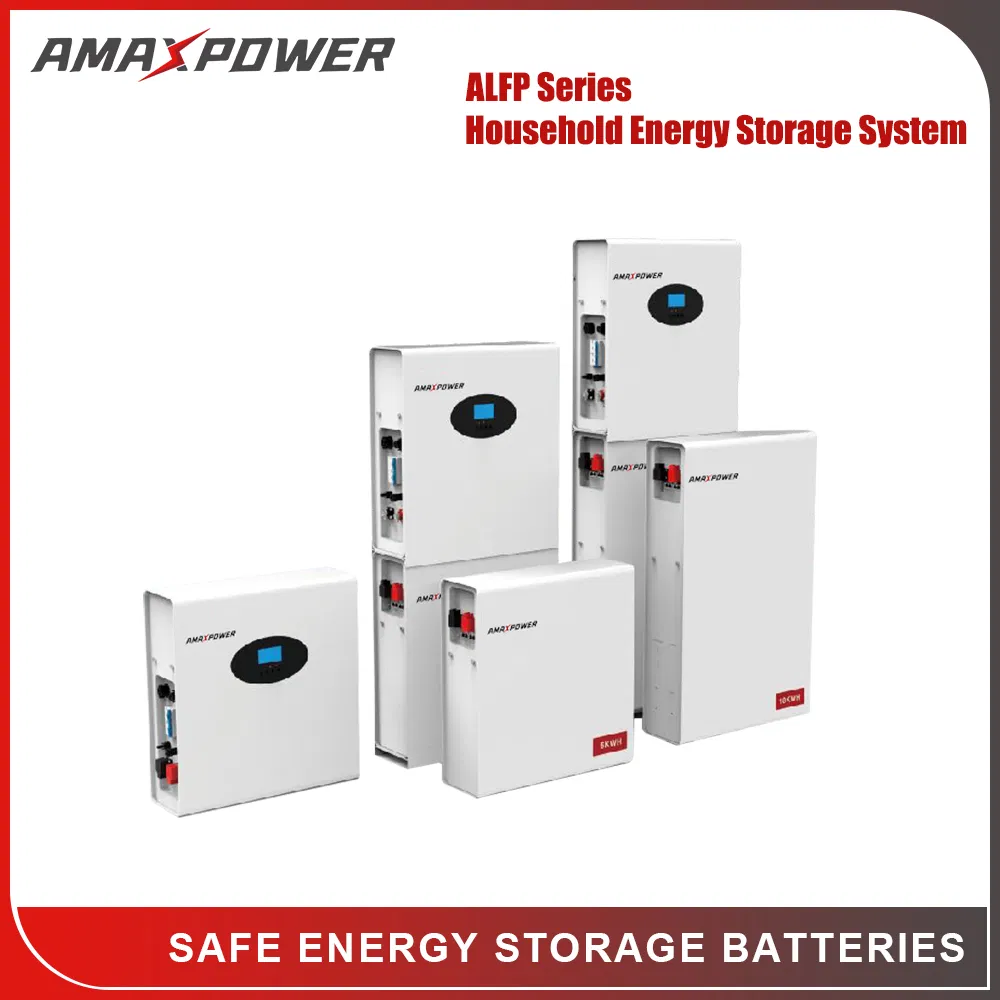

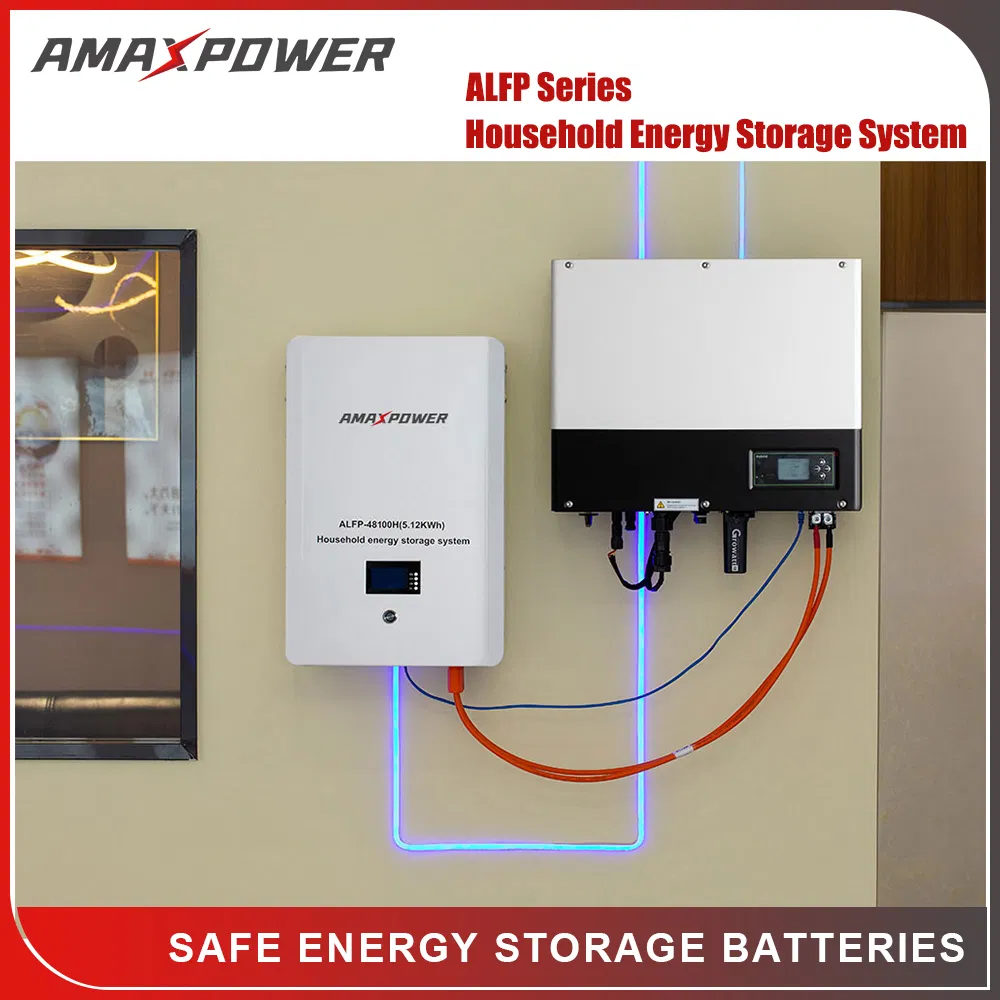

ALFP Series Household Energy Storage System for 5KWh/10KWh/15KWh RESS type LiFePO4(lithium iron phosphate) battery products. The lithium iron phosphate chemistry eliminates the risk of explosion or combustion due to high impact, overcharging or short circuit situation. Compatible to most leading inverters (Deye, Growatt, Voltronic, Goodwe, Victron, SMA), featuring high energy density and safety.

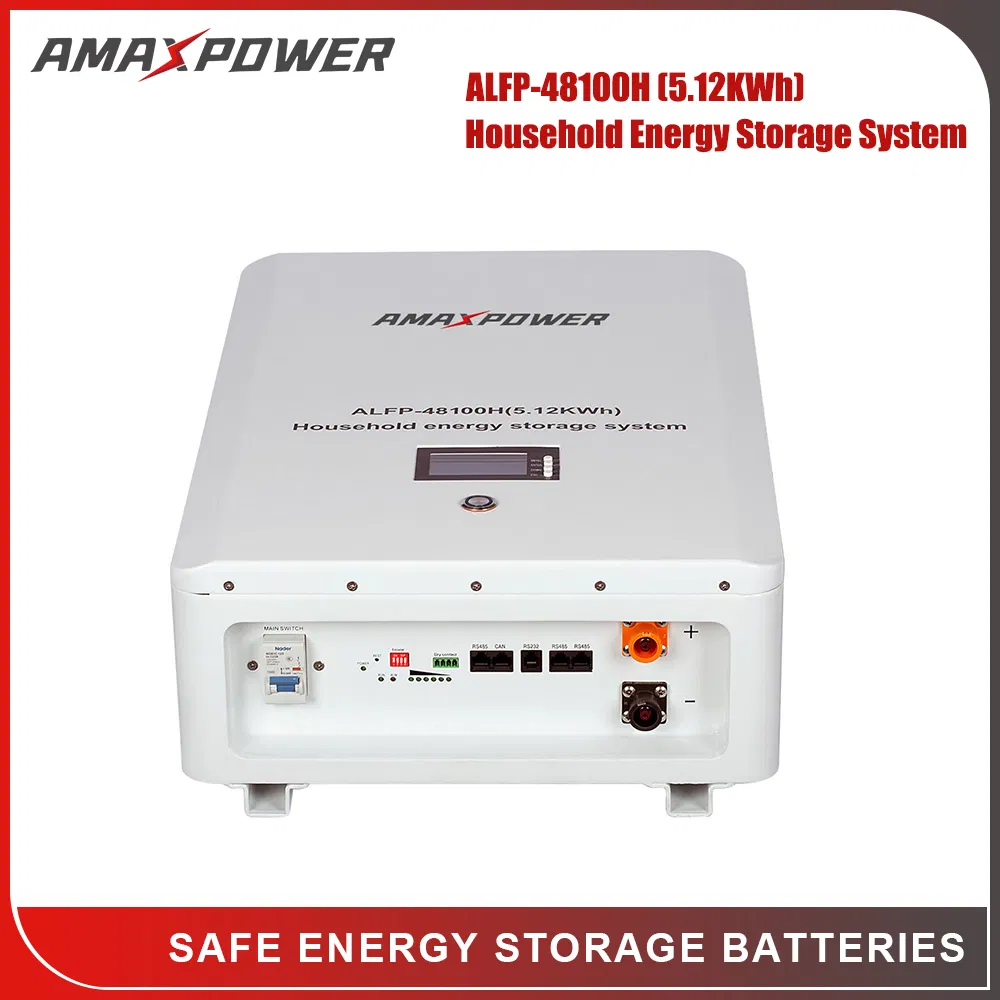

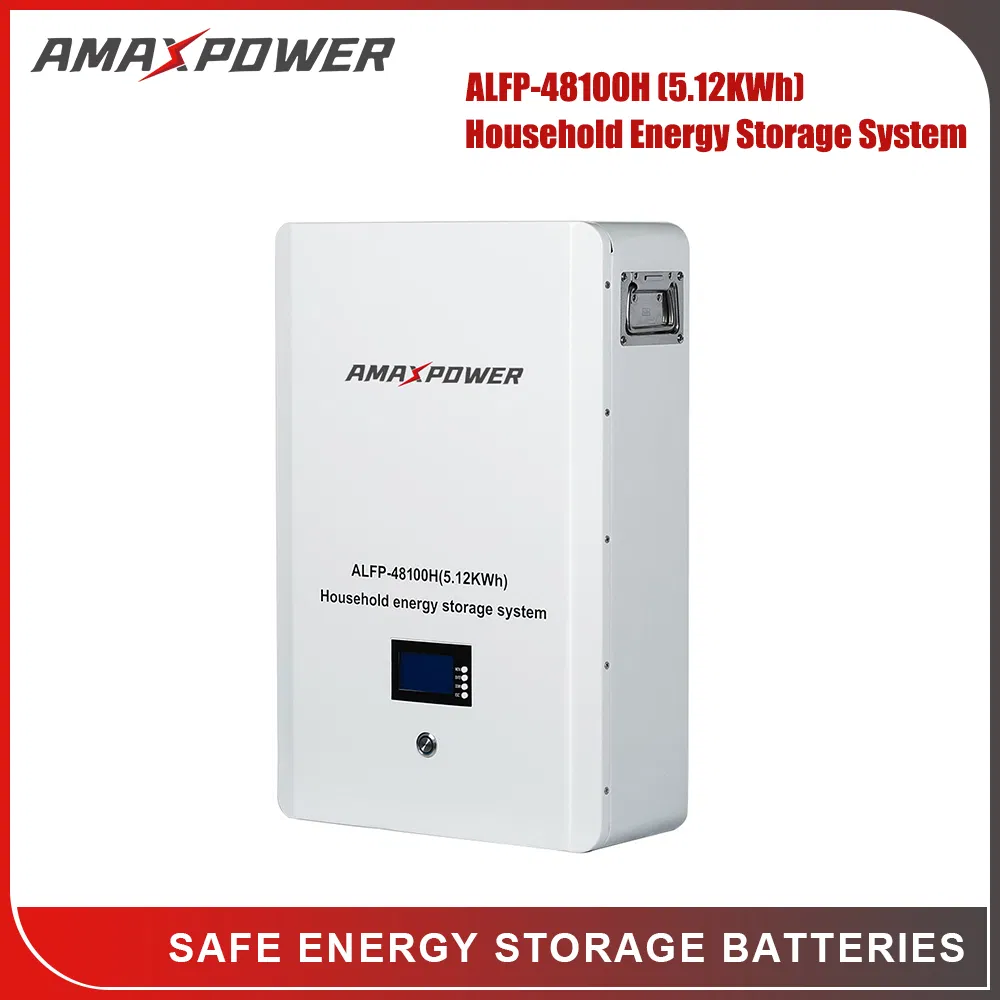

| MODEL SPECIFICATION | ALFP-48100H (5.12kWh) | ALFP-48150H (7.68kWh) | ALFP-48200H (10.24kWh) | ALFP-48200F (10.24kWh) | ALFP-48300F (15.36kWh) |
|---|---|---|---|---|---|
| Normal Voltage(dc) | 51.2V | 51.2V | 51.2V | 51.2V | 51.2V |
| Dimension(W/D/H) | 600*442*170mm | 600*500*150mm | 630*460*180mm | 740*450*260mm | 880*448*260mm |
| Weight (NW Kg) | 50 | 65 | 85 | 91 | 118 |
| Max. Charge/Discharge | 100A | 100A | 100A | 150A | 200A |
| Cycle life (0.5C) | ≥6000 times @80%DOD | ||||
| IP Degree | IP54 | IP32 | |||
Ideal for household solar energy, RV/Marine energy storage, low-speed vehicles, solar street lights, communication base stations, UPS backup power, and off-grid power generation.

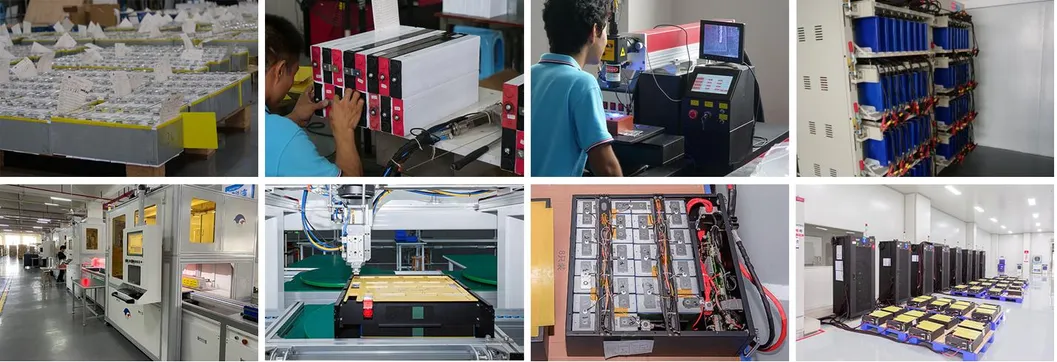

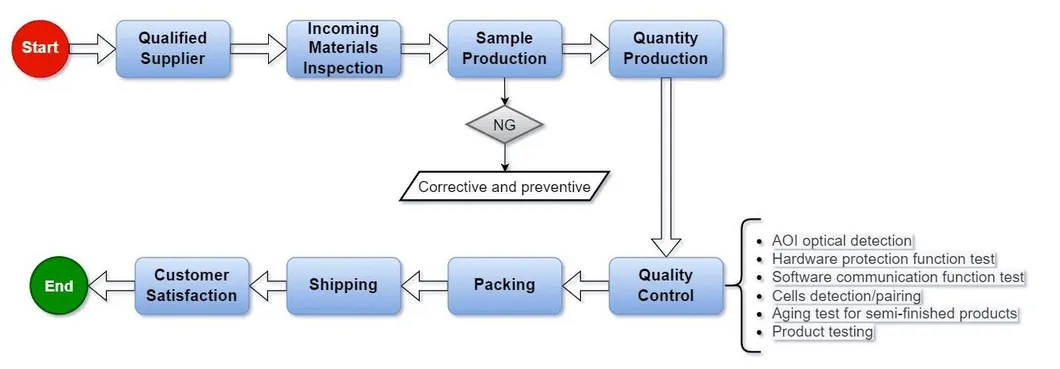

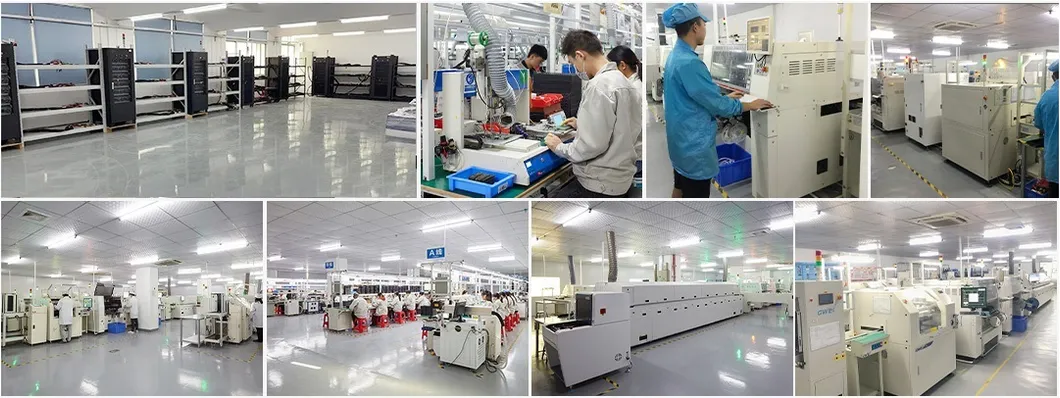

Founded in 2005, the manufacturer operates within a 500,000-square-meter modern industrial park with an annual capacity of 2,000,000kVAh. Specializing in VRLA and Lithium batteries, the facility adheres strictly to ISO management systems.
