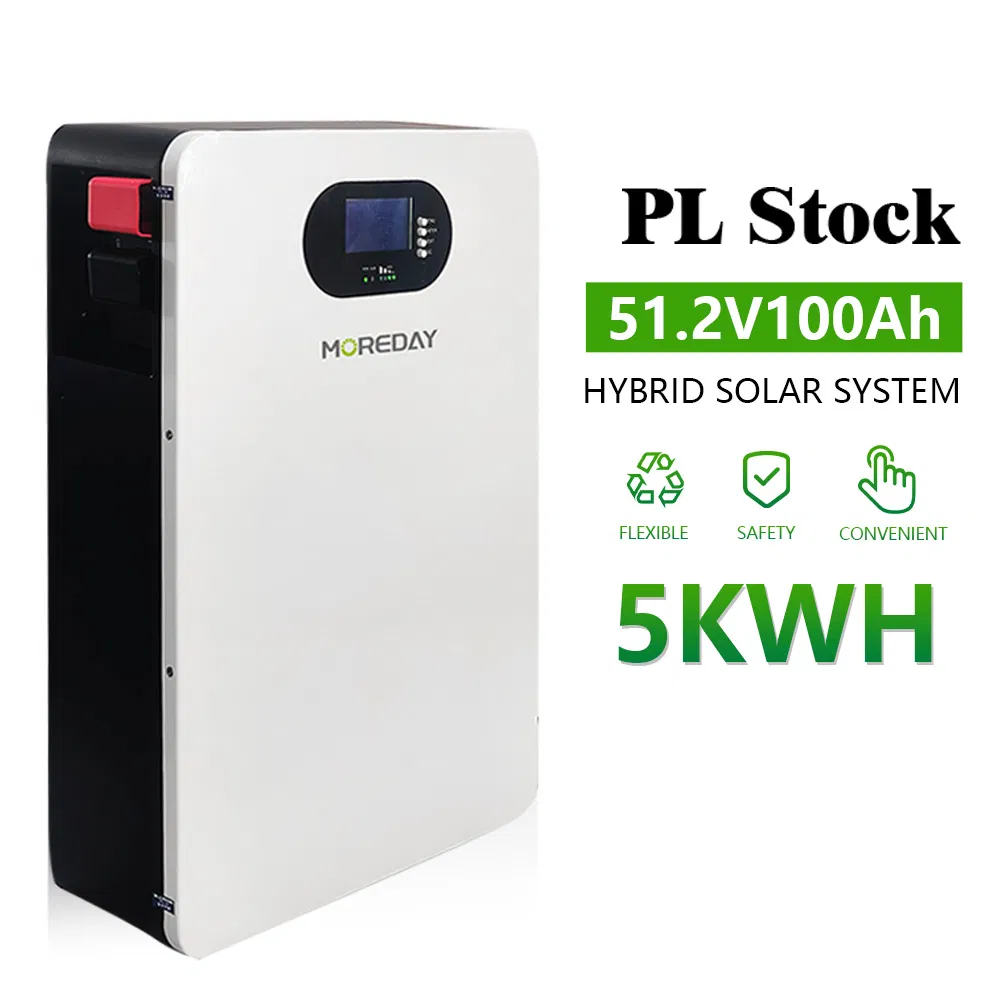

Moreday 48V 100ah 5kwh LiFePO4 Lithium Battery Pack for Home Solar Energy Storage System

1 / 5

Moreday 48V 100ah 5kwh LiFePO4 Lithium Battery Pack for Home Solar Energy Storage System

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Info

Model NO.MDES

Cycle Life6000

Nominal Capacity100ah

Transport PackageWooden Box

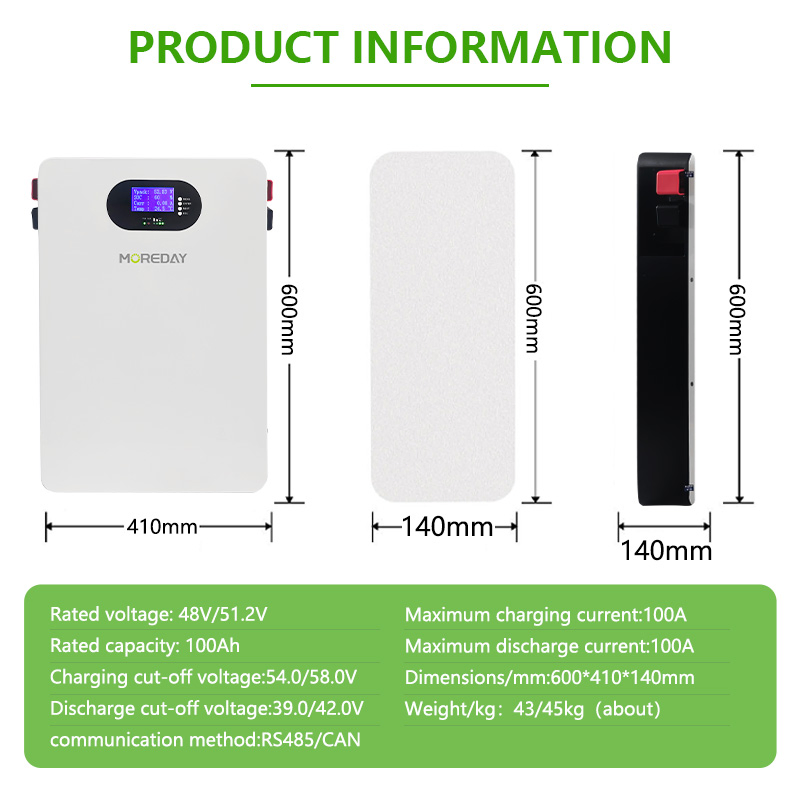

Specification600*410*140mm

OriginChina

Production Capacity2000

Packaging & Delivery

Package Size65.00cm * 46.00cm * 24.00cm

Package Gross Weight50.000kg

Product Description

1. Reliable LiFePO4 Chemistry High-quality lithium iron phosphate (LiFePO4) cells provide over 6000 cycles, ensuring long lifespan, stability, and safety for home solar energy storage.

2. Compact 5kWh Capacity Design Ideal for small to medium residential energy needs, supports power backup, solar charging, and off-grid systems with consistent performance.

3. Smart BMS Protection Integrated battery management system monitors voltage, temperature, and current with RS485/CAN communication for enhanced control and safety.

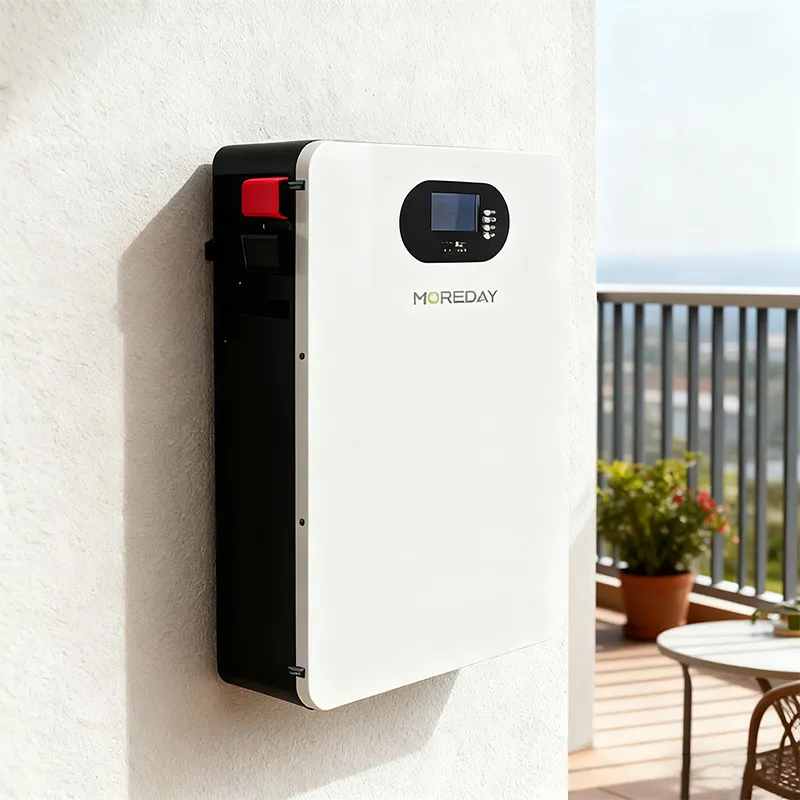

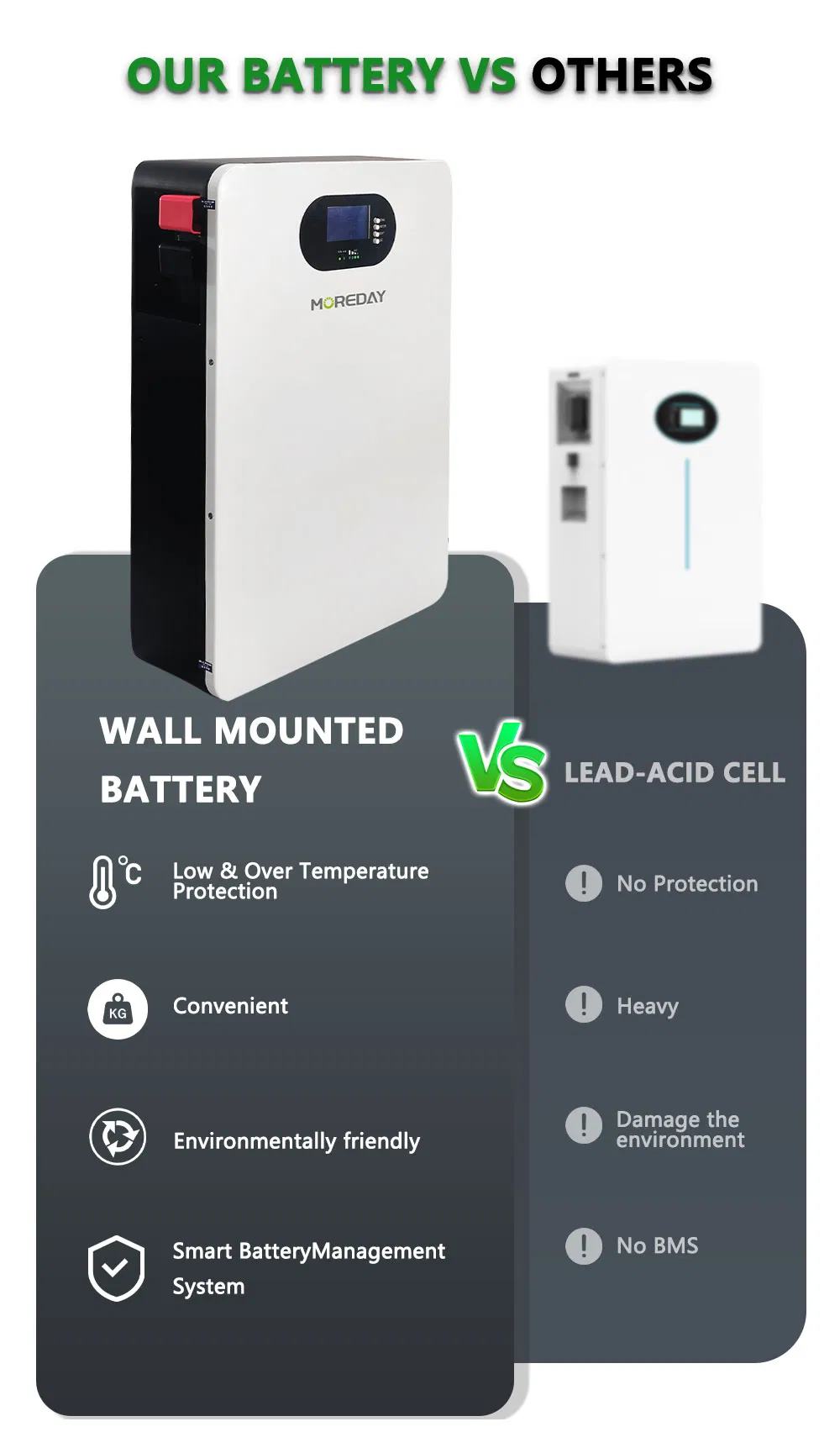

4. Wide System Compatibility Compatible with 48V inverters and solar charge controllers. Designed for easy wall mounting and quick connection.

5. Efficient Charge and Discharge Maximum 100A charge/discharge current, charging cutoff voltage 54V, discharge cutoff 39V, delivering efficient and reliable power supply.

Technical Specifications

Model	5KWh(IP65)	5KWh/A1	10KWh/A1	14.3KWh/A1
Nominal Voltage	48V / 51.2V
Rated Capacity	100Ah	100Ah	200Ah	280Ah
Charge Cut-off Voltage	54.0V / 58.0V	54.0V / 58.0V	54.0V / 58.0V	54.0V / 58.0V
Discharge Cut-off Voltage	39.0V / 42.0V
Max. Charge Current	100A	100A	100A	100A / 150A
Max. Discharge Current	100A	100A	100A / 200A	100A / 200A
Communication Protocol	RS485 / CAN
Dimensions (mm)	770 × 520 × 90	600 × 410 × 140	850 × 485 × 145	850 × 420 × 230

Product Detail View

Related Energy Solutions

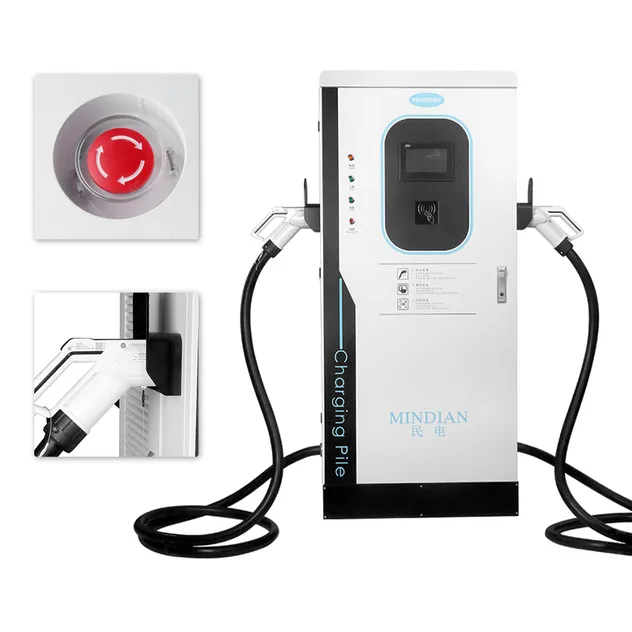

DC charging pile series standard power 30kW-160kW

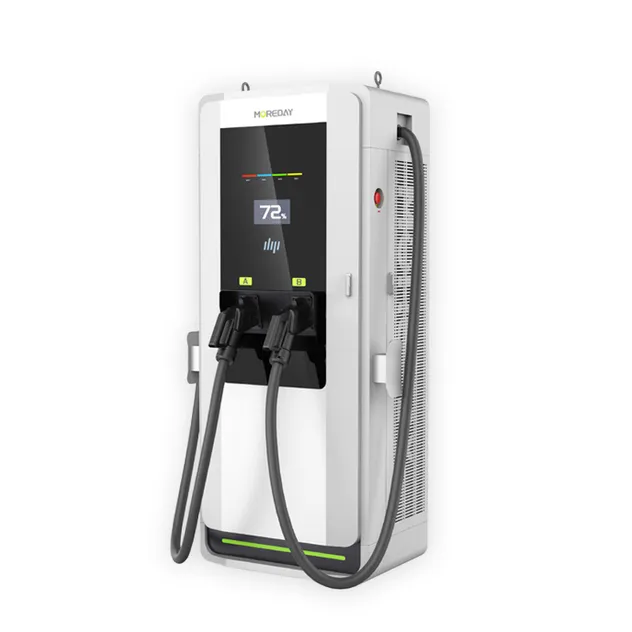

Standard power 60kW/120kW/160kW stations

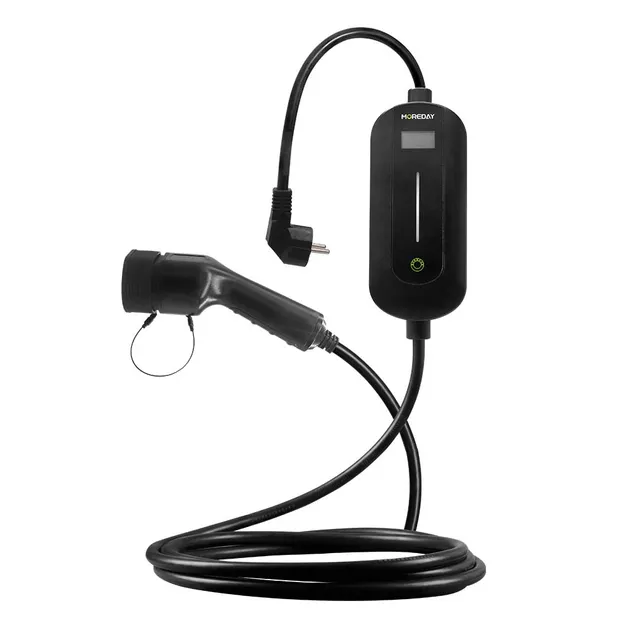

Portable electric vehicle charger 3.5kW/7kW

Professional Capability

A high-tech enterprise integrating R&D, manufacturing, and sales, specializing in smart power distribution and renewable energy solutions. Our products serve residential, commercial, and industrial sectors, including PV combiner boxes, energy storage systems, and EV charging stations.

Frequently Asked Questions

What is the cycle life of this LiFePO4 battery?

The battery provides over 6000 cycles, ensuring long-term reliability and a high return on investment for solar energy systems.

Is the battery compatible with my existing inverter?

Our 48V/51.2V systems are compatible with most standard 48V hybrid and off-grid inverters on the market.

How does the Smart BMS protect the system?

The integrated Battery Management System (BMS) continuously monitors voltage, temperature, and current to prevent overcharging, over-discharging, and overheating.

What communication protocols are supported?

The system supports RS485 and CAN communication protocols for seamless integration with monitoring systems and inverters.

What is the maximum charge and discharge current?

The standard 5kWh model supports a maximum charge and discharge current of 100A, while higher capacity models support up to 200A.

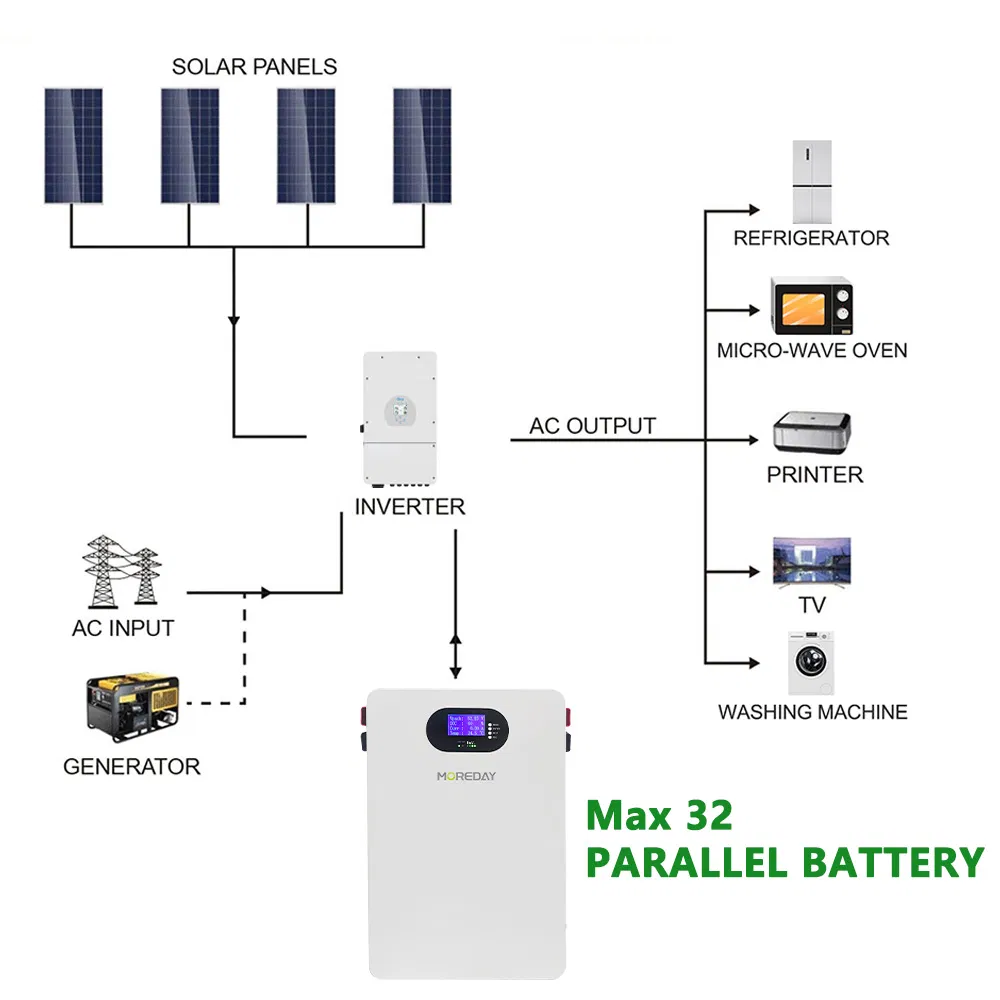

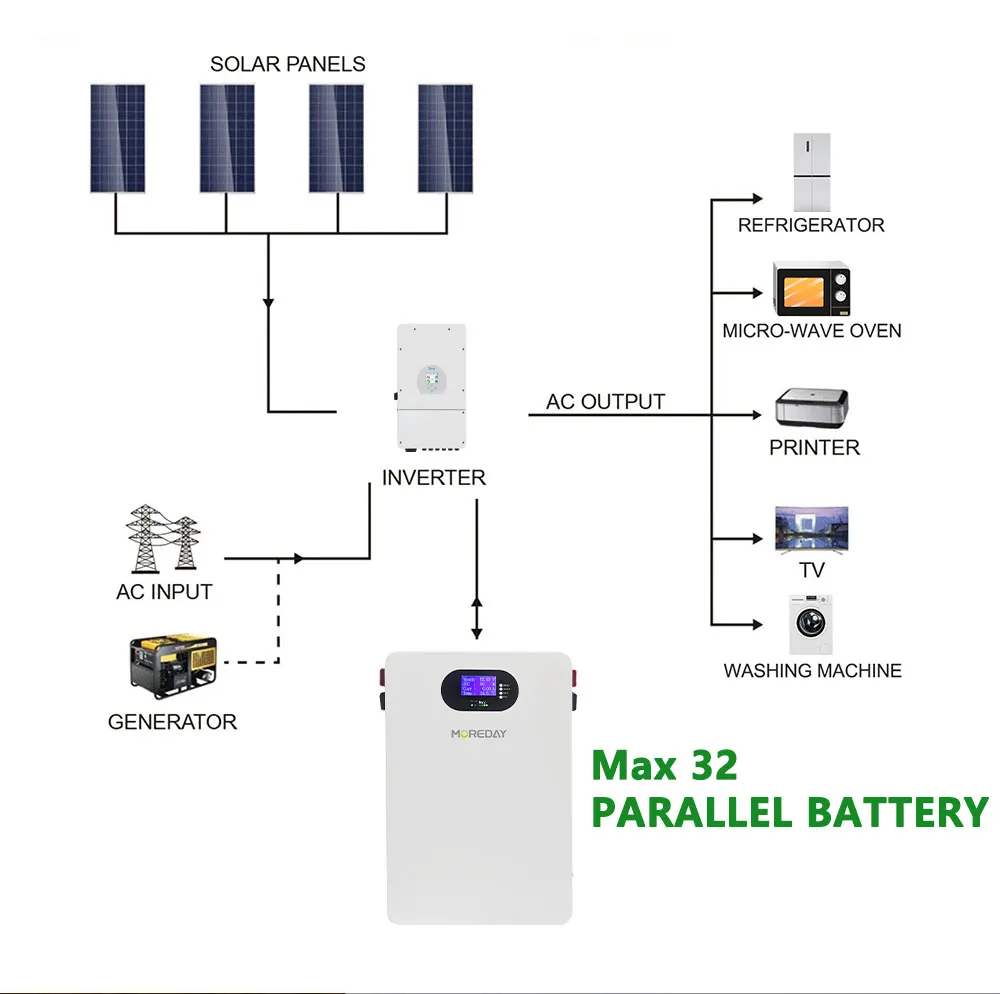

Can these battery units be expanded?

Yes, the modular design allows for parallel connection to increase your total storage capacity from 5kWh up to larger industrial requirements.
