| Parameter | Value |
|---|---|
| Protection Class | IP55 |
| Cooling Method | Liquid Cooling |
| Rated Output Voltage | 400V, 3L/N/E |
| Operating Voltage Range | 650V~959V |
| Cell Type | 3.2V/314ah LFP |
| System Efficiency | >90% |
| Communication Method | 4G/LAN |
| Operating Temperature | -25°C~55°C |
| Origin | China |
| Production Capacity | 500,000 sets/Year |
| Package Size | 160.00cm * 150.00cm * 240.00cm |
| Package Gross Weight | 3200.000kg |
| Transport Package | Standard Packaging or Customized |

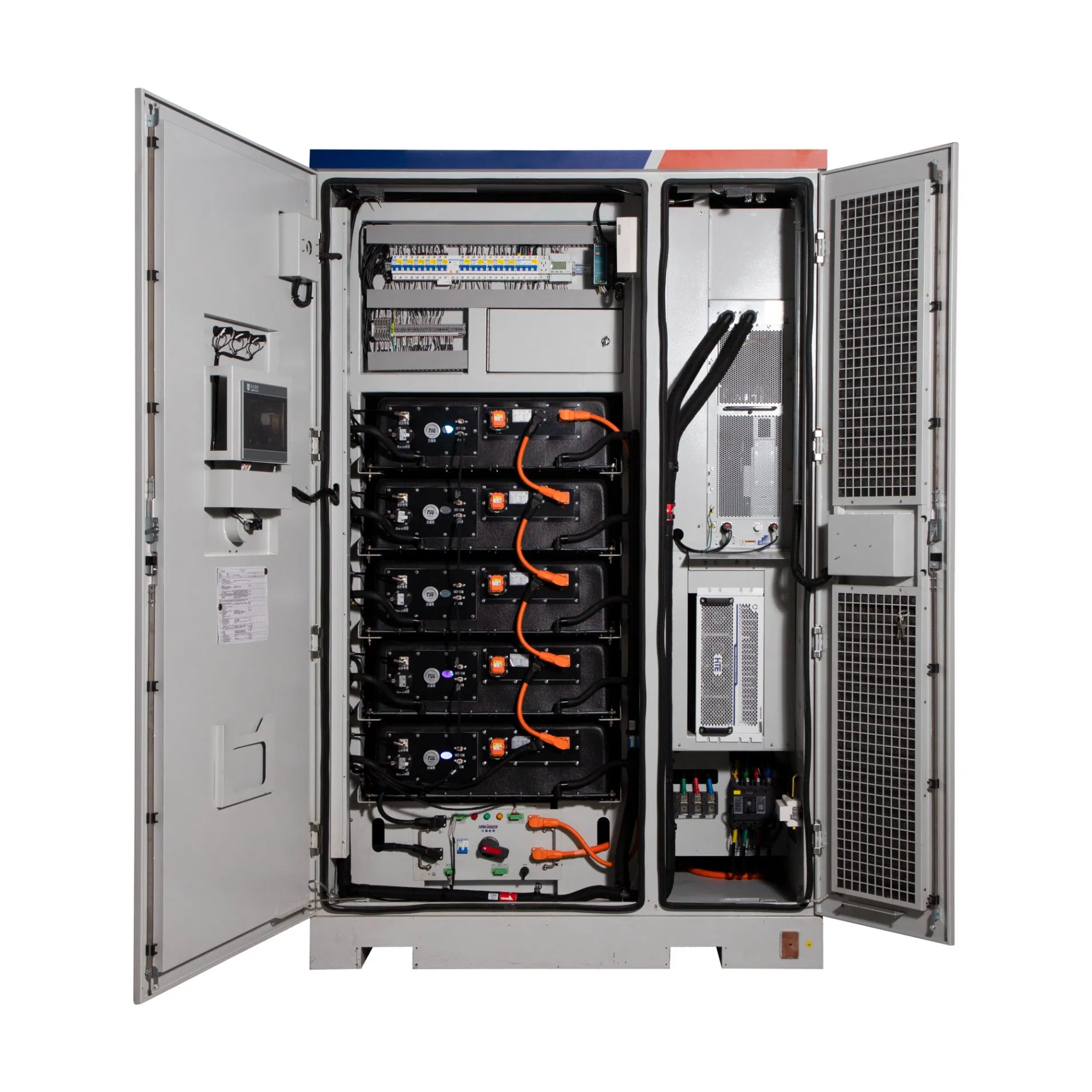

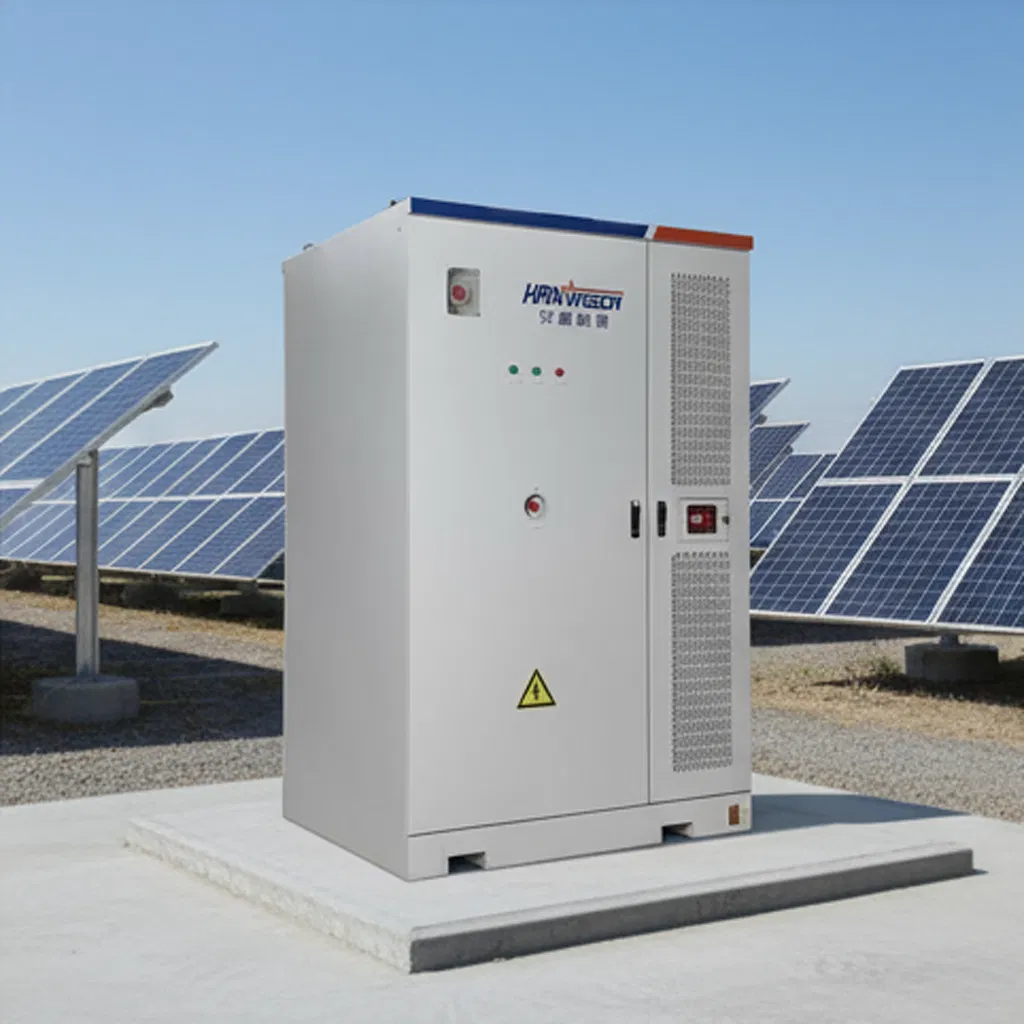

ENERGY STORAGE BATTERY
Our energy storage battery systems deliver cutting-edge power solutions designed for residential, commercial, and industrial applications. These high-performance battery systems serve as dependable emergency backup power sources, ensuring uninterrupted operation during grid outages while optimizing energy consumption for maximum cost savings.
Serve as an emergency backup power source to ensure continuous operation.

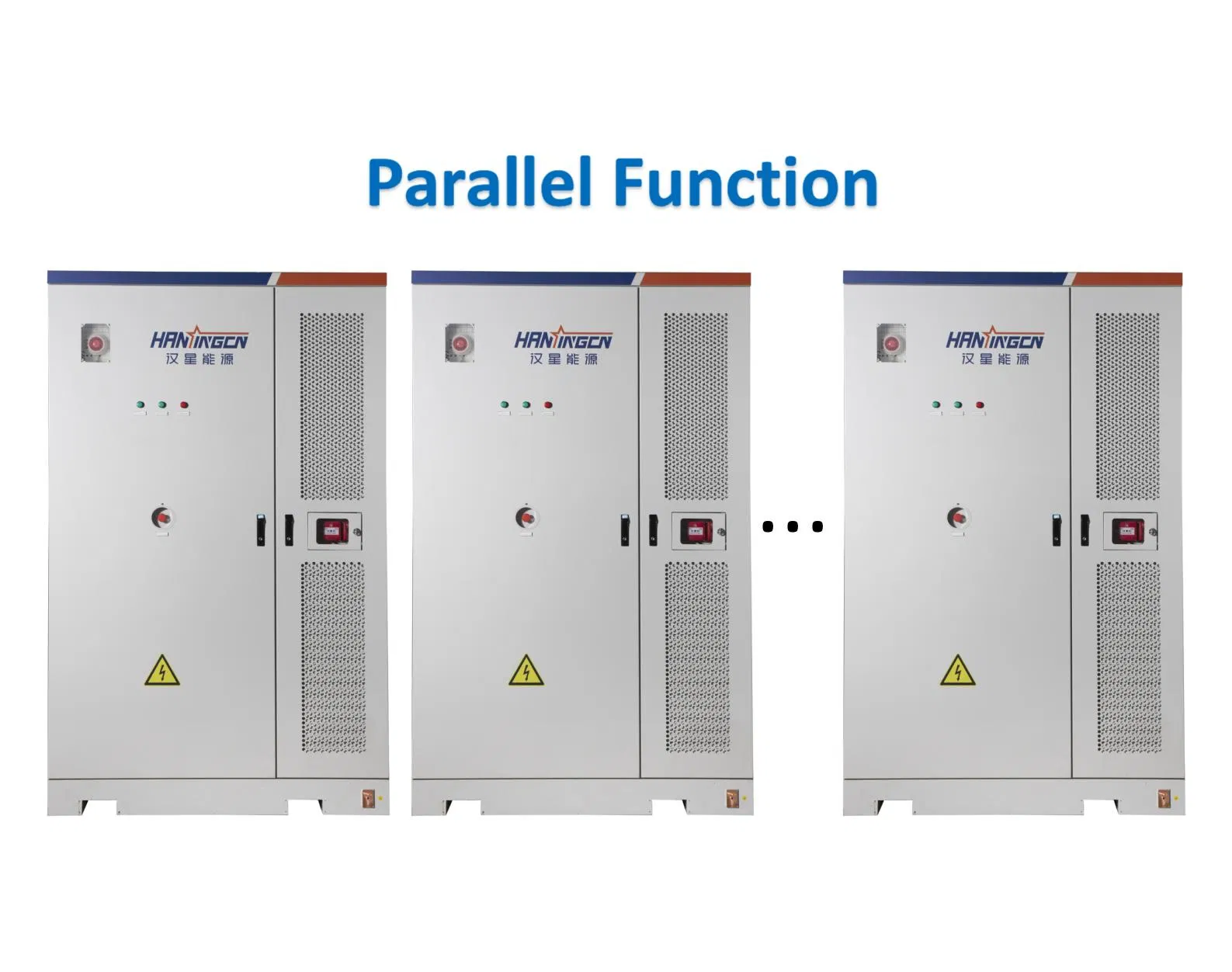

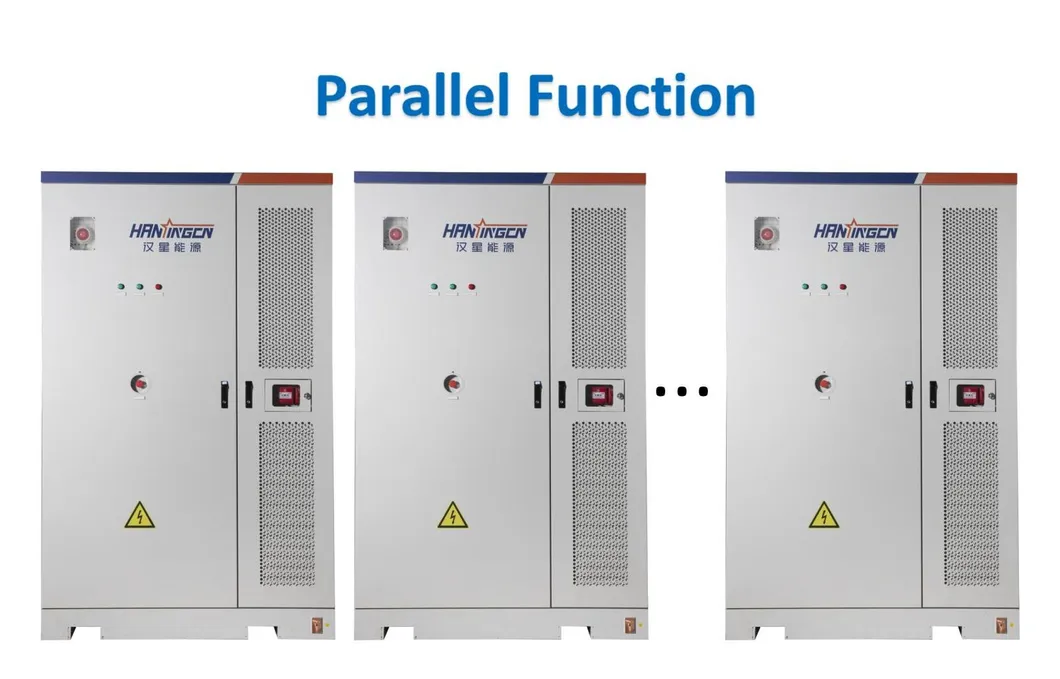

Modular design, expansion, and customization. Convenient installation.
Optimize energy usage and reduce costs.
Reduce operation and maintenance costs, promote green energy consumption.

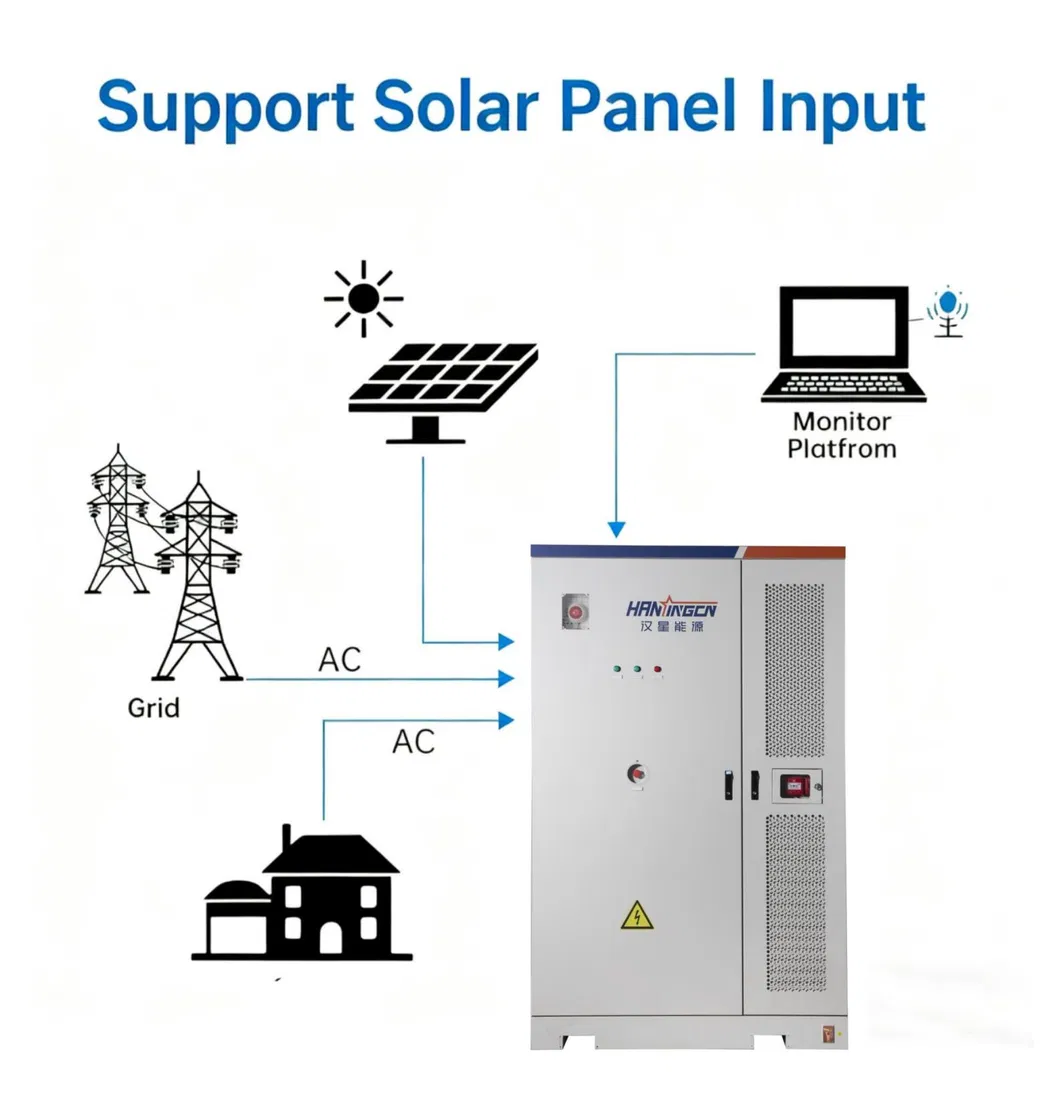

Grid-connected/off-grid switching, multiple protection mechanisms.
| DETAILED SPECIFICATIONS | |
|---|---|

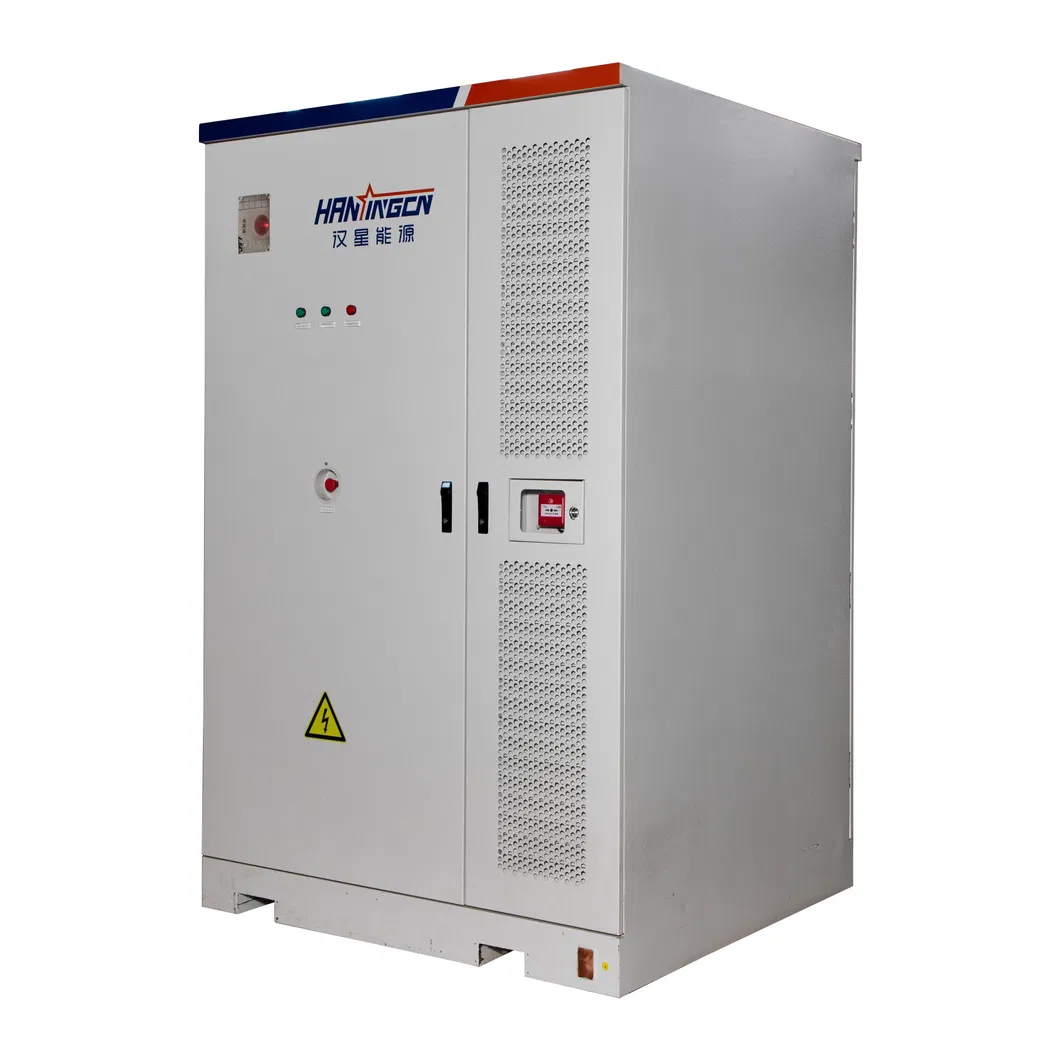

| Product Name | Commercial Energy Storage Battery |
| Nominal Voltage | 230V/400V |
| Nominal Capacity | 125KW/261KWH |
| Cycle Life | 8000 cycles+ |

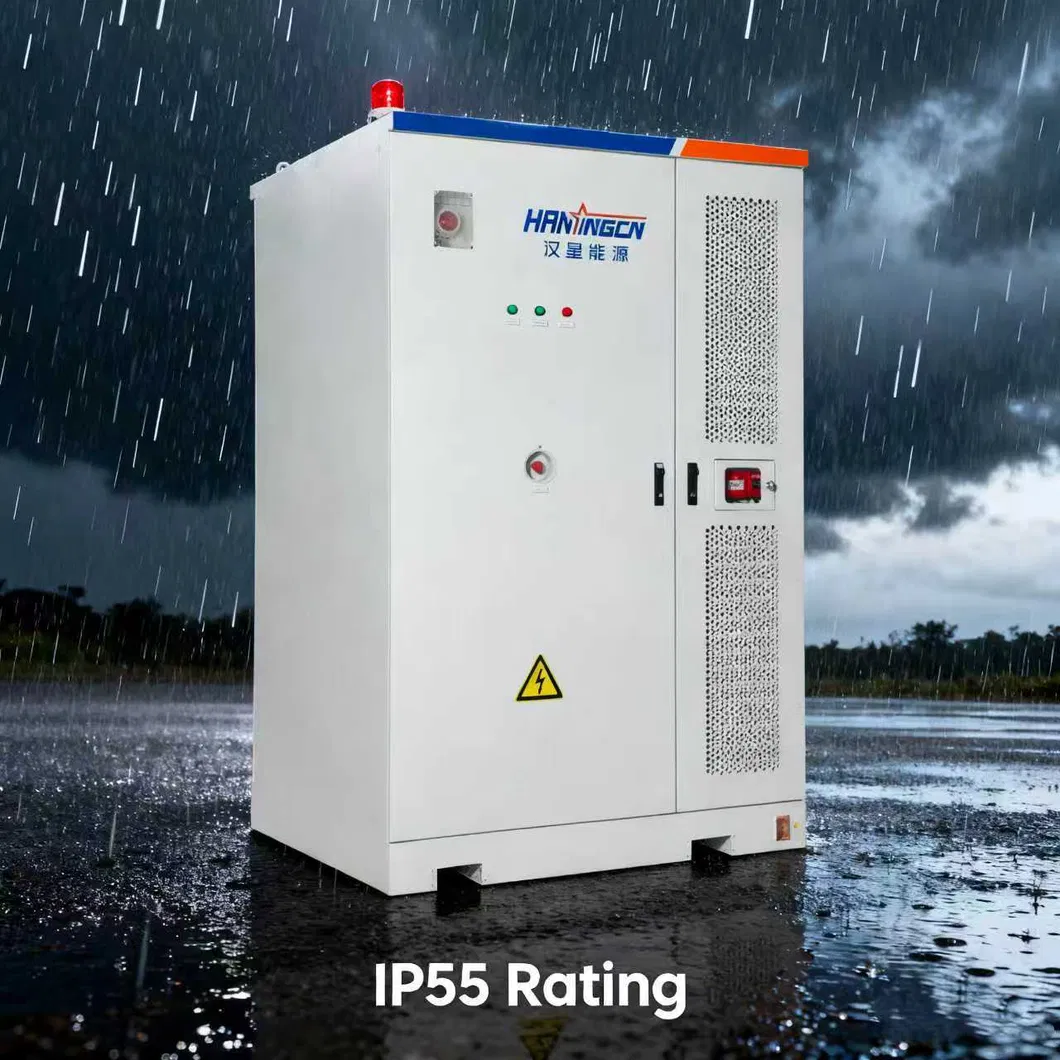

| Protection Class | IP55 |
| Cooling Method | Liquid Cooling |
| Rated Output Voltage | 400V, 3L/N/E |
| Operating Voltage Range | 650V~959V |
| Cell Type | 3.2V/314Ah LFP |
| System Efficiency | >90% |

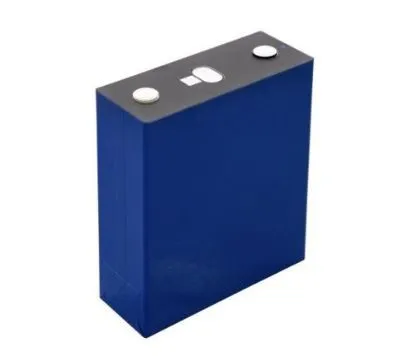

CELL
Function: Conversion between chemical and electrical energy.
Advantages: High-quality cells with long cycle life reduce long-term costs.

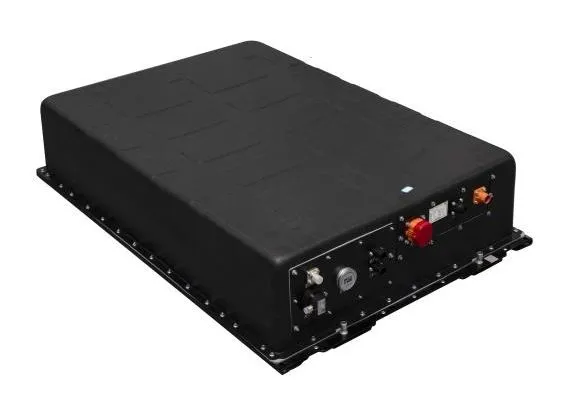

BATTERY PACK
Function: Multiple cells in series/parallel for stable voltage; integrates cooling and overcharge protection.
Advantages: Modular design for easy maintenance and enhanced system safety.

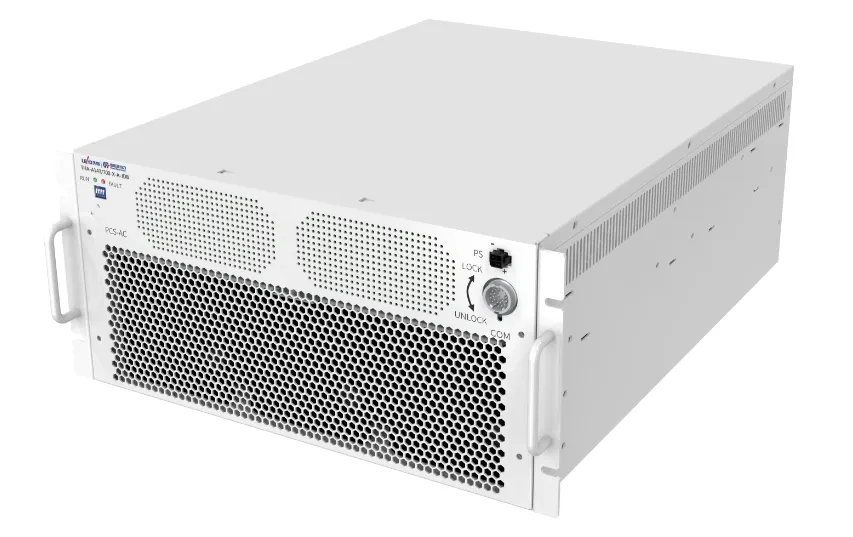

PCS (Power Convert System)
Function: Bidirectional DC/AC conversion for grid interaction. Supports grid-connected/off-grid switching.
Advantages: High conversion efficiency and fast response speed.

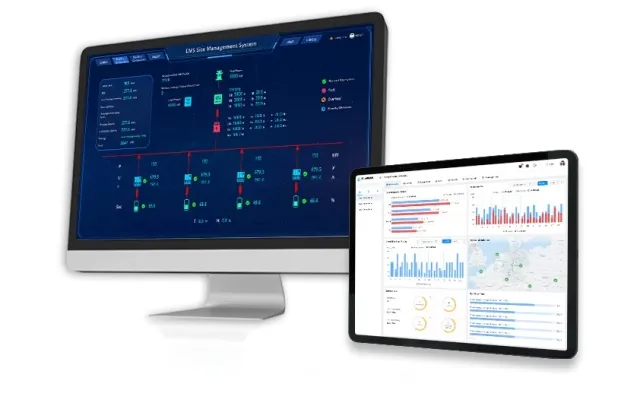

EMS & BMS Management
EMS: Real-time monitoring and optimal strategy formulation for charging/discharging.
BMS: Monitors voltage, temperature, SOC, and SOH of each cell to ensure safety and balance.
Peak-Valley Arbitrage
Buying low-cost electricity during off-peak hours and discharging during peak periods to maximize profit margins and improve ROI.
Load Management
Minimizing peak loads to lower demand charges and balancing grid consumption to avoid infrastructure upgrades.
Demand Response
Voluntarily reducing consumption during shortages to earn incentives and support overall grid stability.
