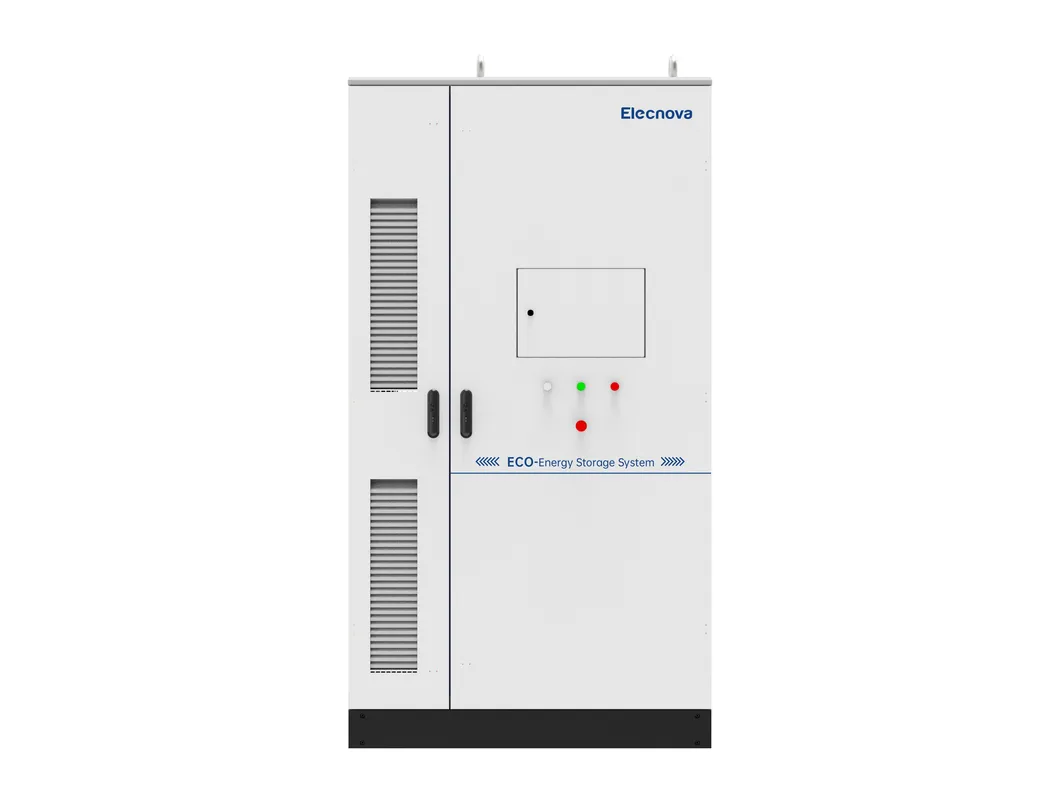

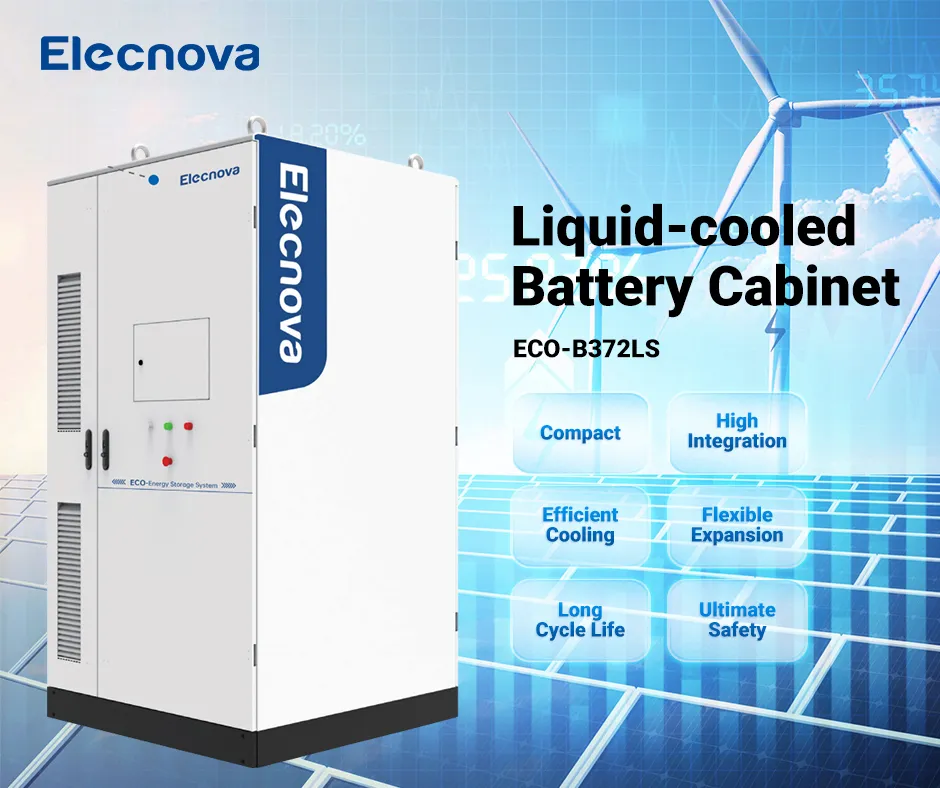

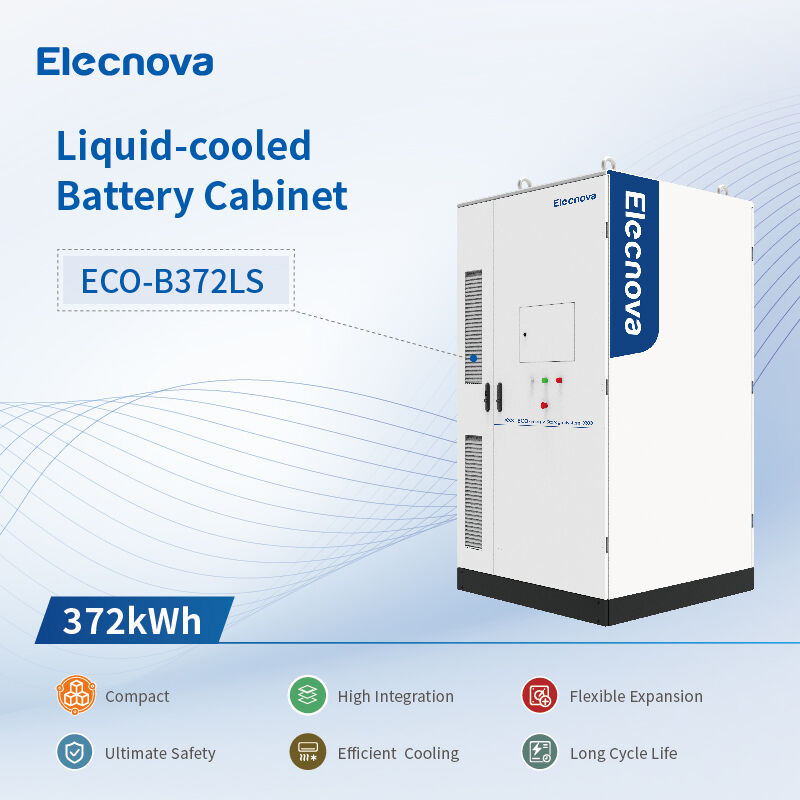

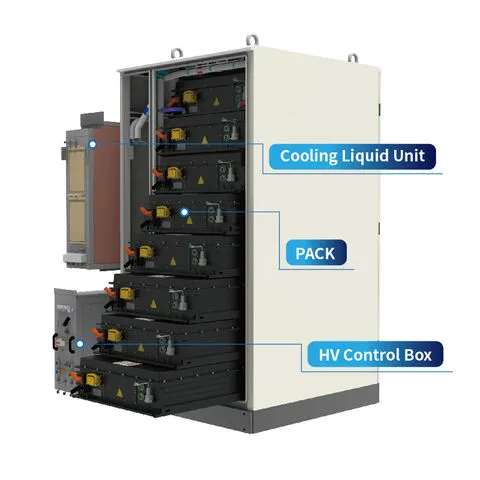

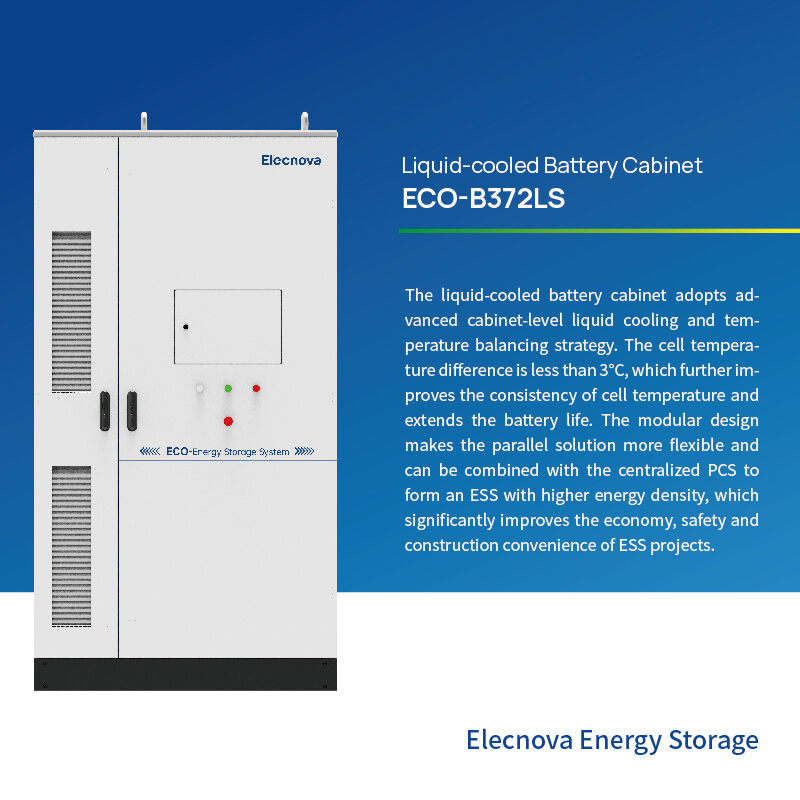

The liquid-cooled battery cabinet adopts advanced cabinet-level liquid cooling and temperature balancing strategy. The cell temperature difference is less than 3°C, which further improves the consistency of cell temperature and extends the battery life. The modular design makes the parallel solution more flexible and can be combined with the centralized PCS to form an ESS with higher energy density.
| Item | Specification |
|---|---|
| Cell type | LFP280Ah |
| DoD | 95%(25±2ºC) |
| Configuration | 1P416S |
| Rated Energy | 372kWh |
| Rated Voltage | 1331.2Vdc |
| DC Voltage Range | 1165~1498Vdc |
| PACK Ingress Rating | IP65 |
| Cycle Life | ≥8000 times |
| Cooling | Liquid cooling |
| Dimensions (W*D*H) | 1,300*1,300*2,400 (mm) |

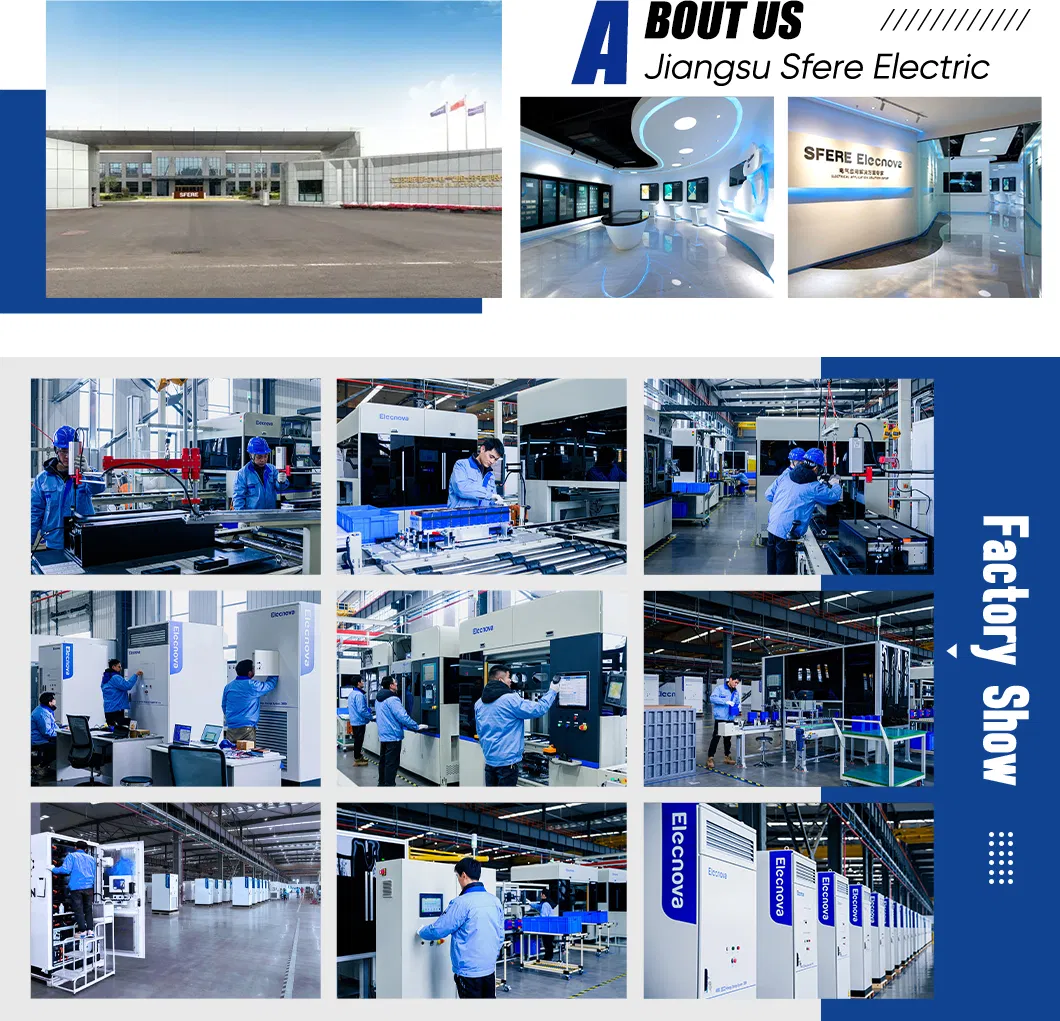

The manufacturer integrates R&D, manufacturing, sales and service, providing a complete product ecosystem from smart terminal components to energy storage systems. With a focus on intelligent and digital energy management, the solutions empower users with reliable data services for energy saving, safety, and refined management.
