10kw 48V 200ah Lithium Ion Battery Power Brick LiFePO4 48volt 10kwh Li-ion Battery Pack for Ess Energy Storage Battery

Still deciding? Get samples of $ !
Order Sample

Product Description

i

Technical Specifications

Model NO.
UNIV-10kWhFS
Nominal Capacity
10kwh
Cycle Life
6000
Battery Type
LiFePO4 Battery
Rated Capacity
200ah
Dimensions (W*H*D)
760*560*145mm
Life Span
>15 Years
Battery Pack Type
Lithium-Ion
Connection Mode
Parallel
Discharge Rate
High Rate
Application
Solar PV System
Product Weight
86kg
DoD
90%
Cooling Type
Natural
Rechargeable
Yes
IP Rating
IP20

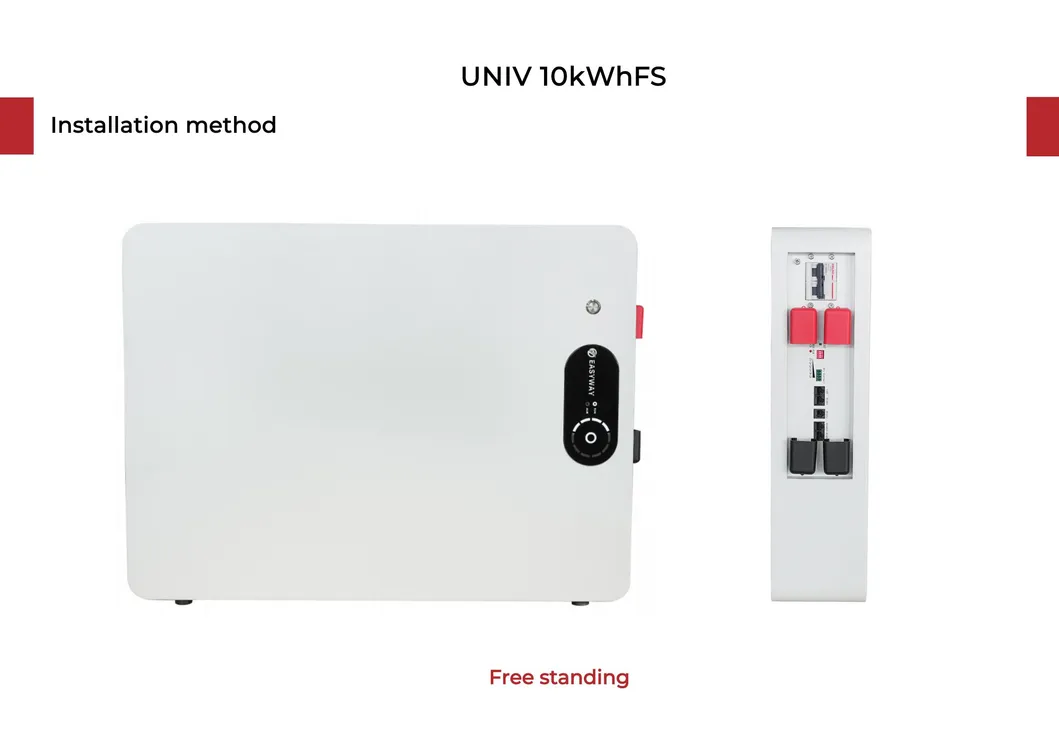

Installation
Wall-Mounted
HS Code
85076000

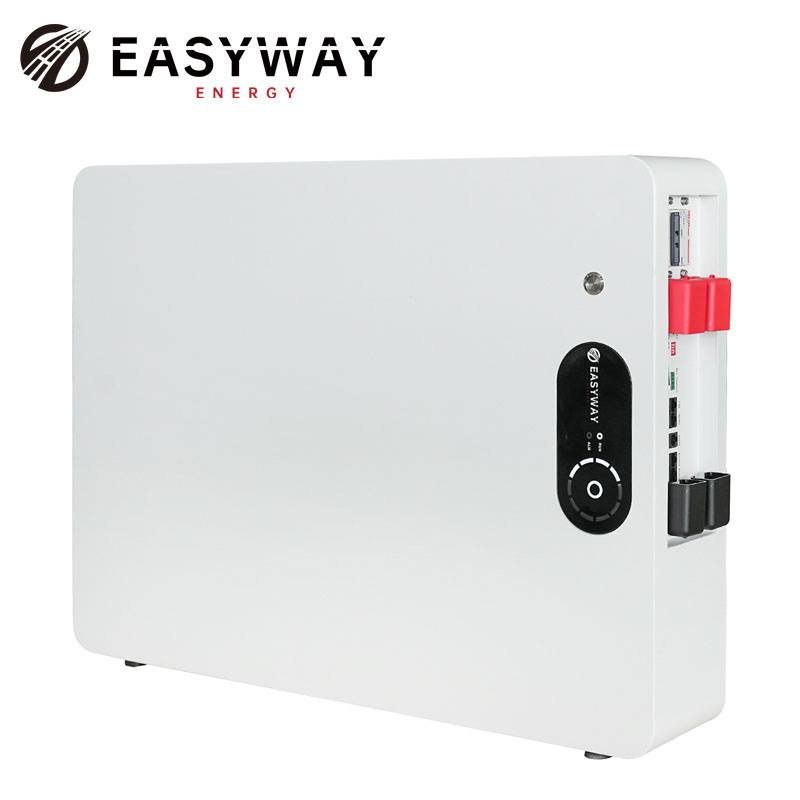

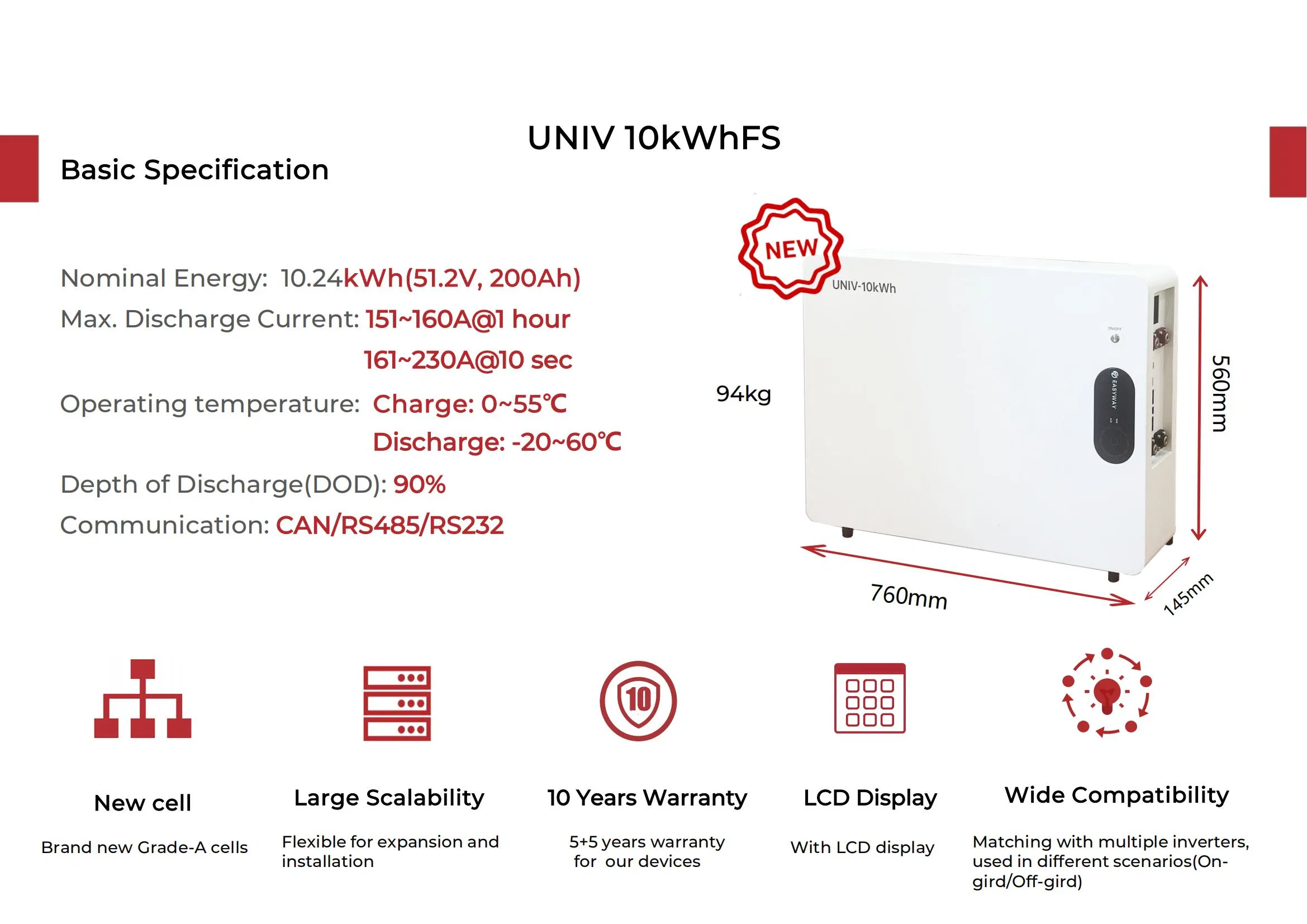

10kw 48V 200ah Lithium Ion Battery Power Brick
LiFePO4 48volt 10kwh Li-ion Battery Pack for ESS Energy Storage Battery

Product Features & Design

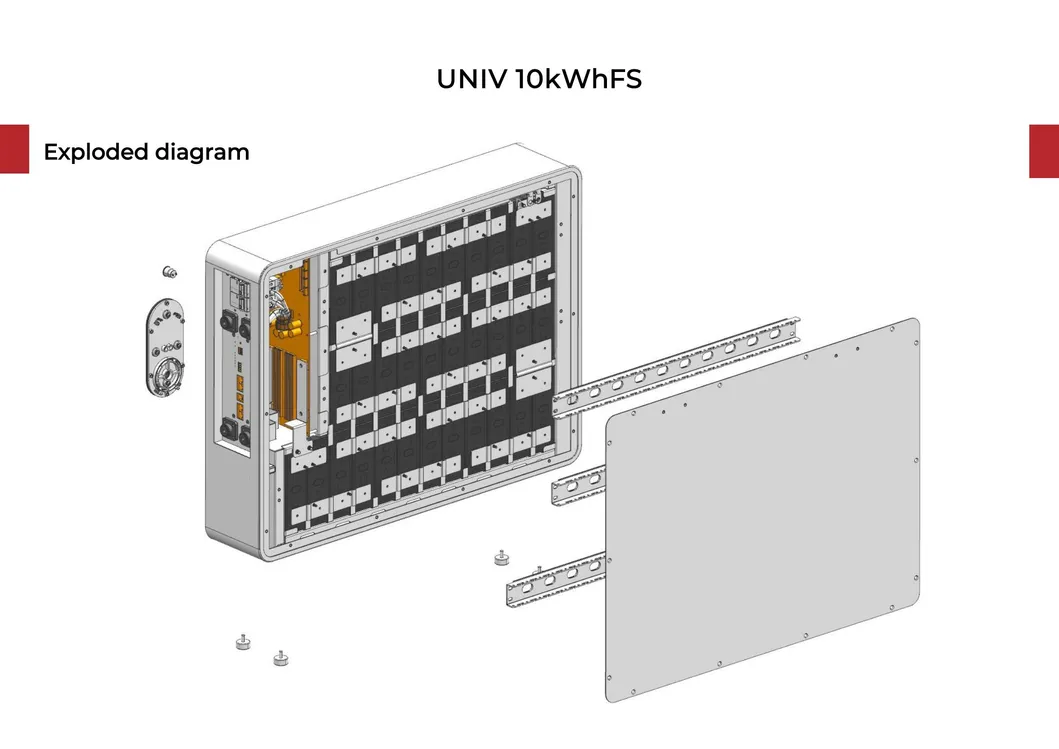

Banner Design

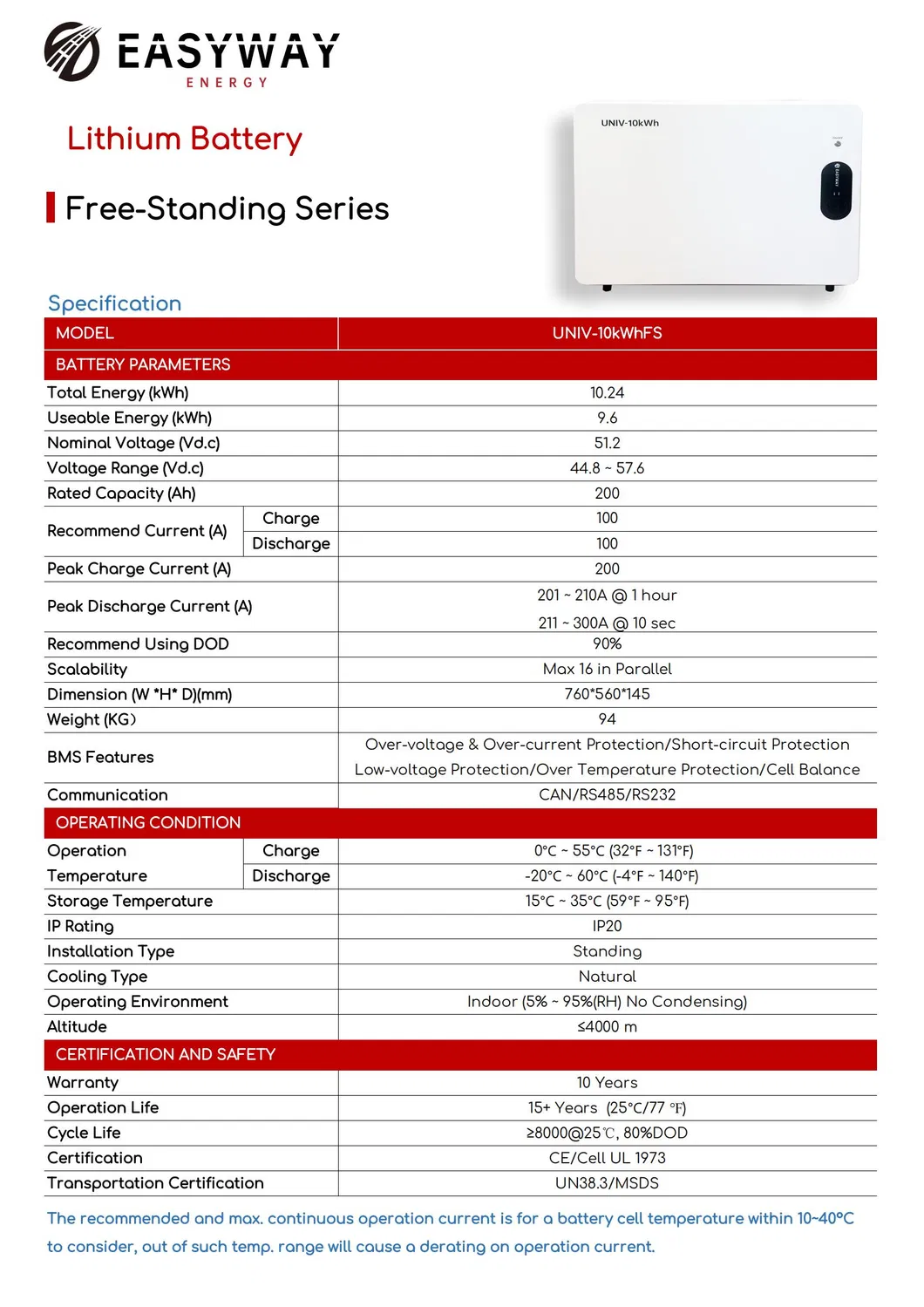

Detailed Specification Table

Spec Table Header Technical Data

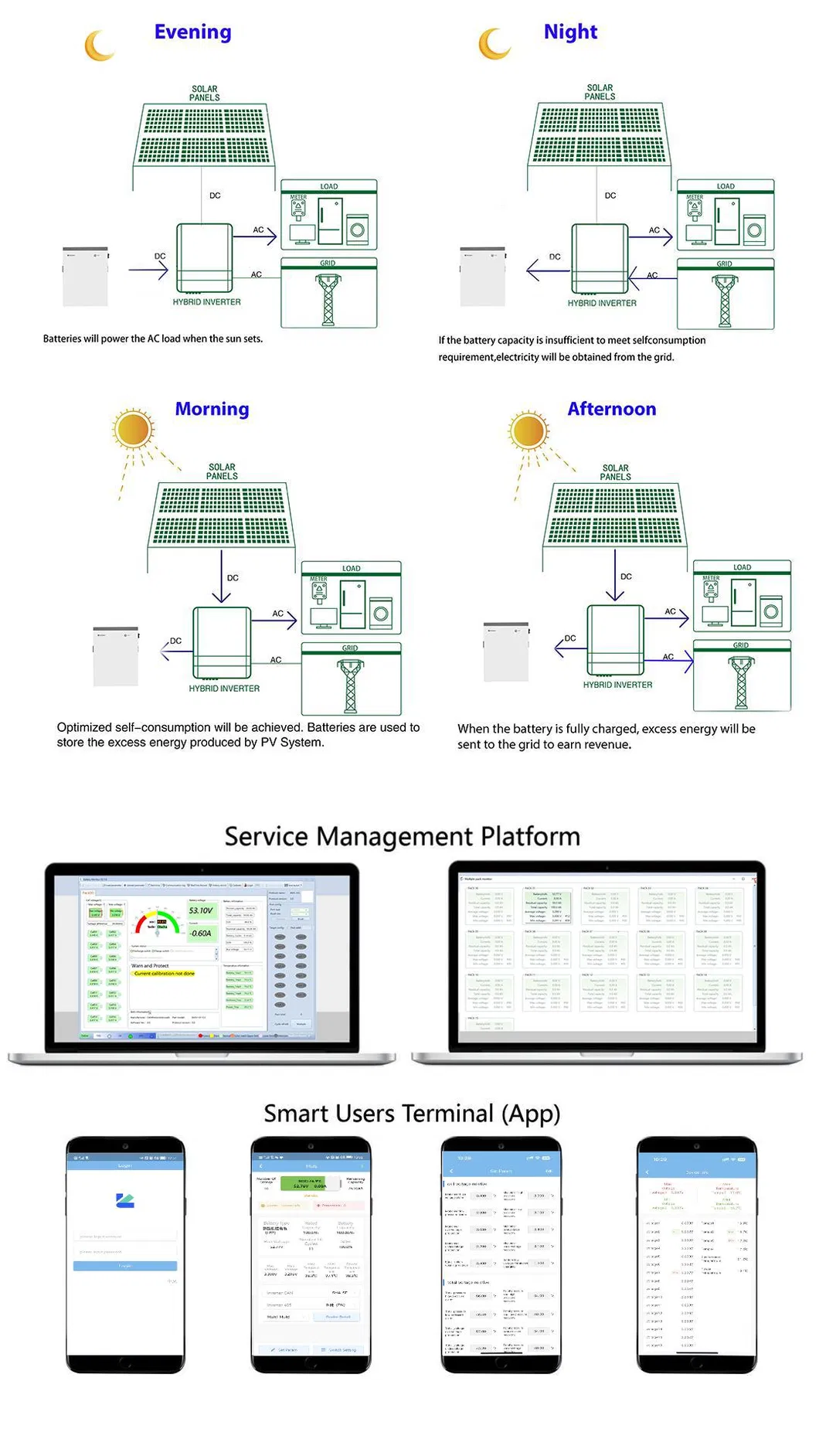

Working Principle & Smart Platform

Intelligent service platform integration for real-time monitoring and energy management.
System Diagram
📦

Packaging & Delivery

Package Size
81.00cm * 64.00cm * 34.00cm
Gross Weight
106.000kg
Standard Packing
Carton / Pallet / Wooden Case
?

Frequently Asked Questions

What is the expected life span of the battery?
Our batteries are built with grade A LiFePO4 cells, with a cycle life of up to 6000+ cycles at 80% Depth of Discharge (DoD).
How long is the warranty period?
We offer a 5+5 years warranty to provide after-sale service and technology support, including battery replacement or BMS support.
Which inverter brands are compatible with your batteries?
The BMS supports Canbus/RS485 communications and is compatible with most famous brand inverters on the market.
What is the standard delivery time?
Usually, delivery is within 30 days, although this may vary based on order quantity or specific requirements.
Do you support product customization?
Yes, we support customization including Logos, stickers, and OEM/ODM services.
Are there certifications for safe transport?
Yes, our products carry CE, MSDS, and UN38.3 certifications to ensure safe international transport.
