| Model NO. | TH-K60 | Material | Metal |
|---|---|---|---|
| Production Process | Integration | IP Rating | IP67 |
| Feature | Low Temperature Resistant | Certification | ISO |

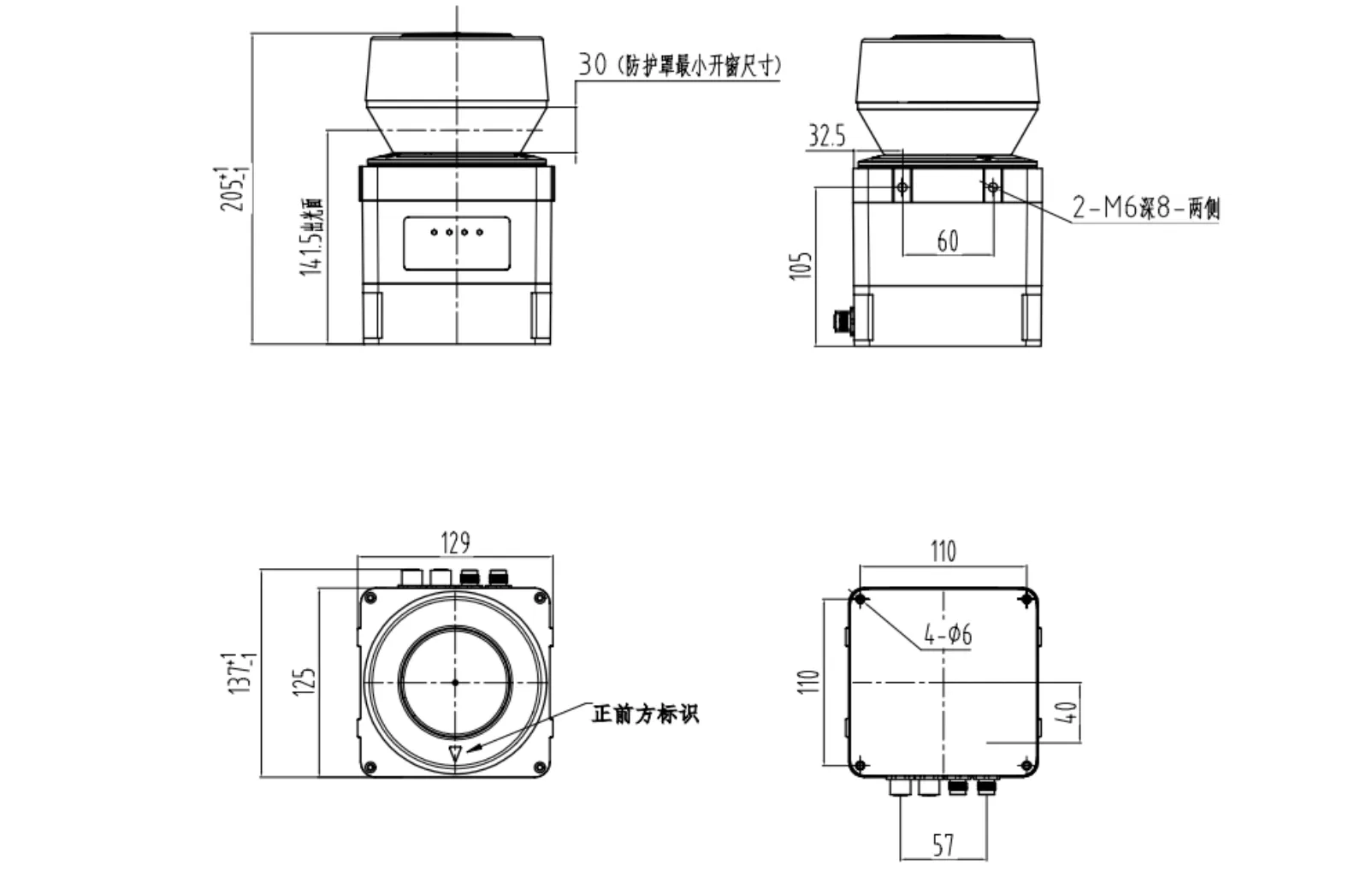

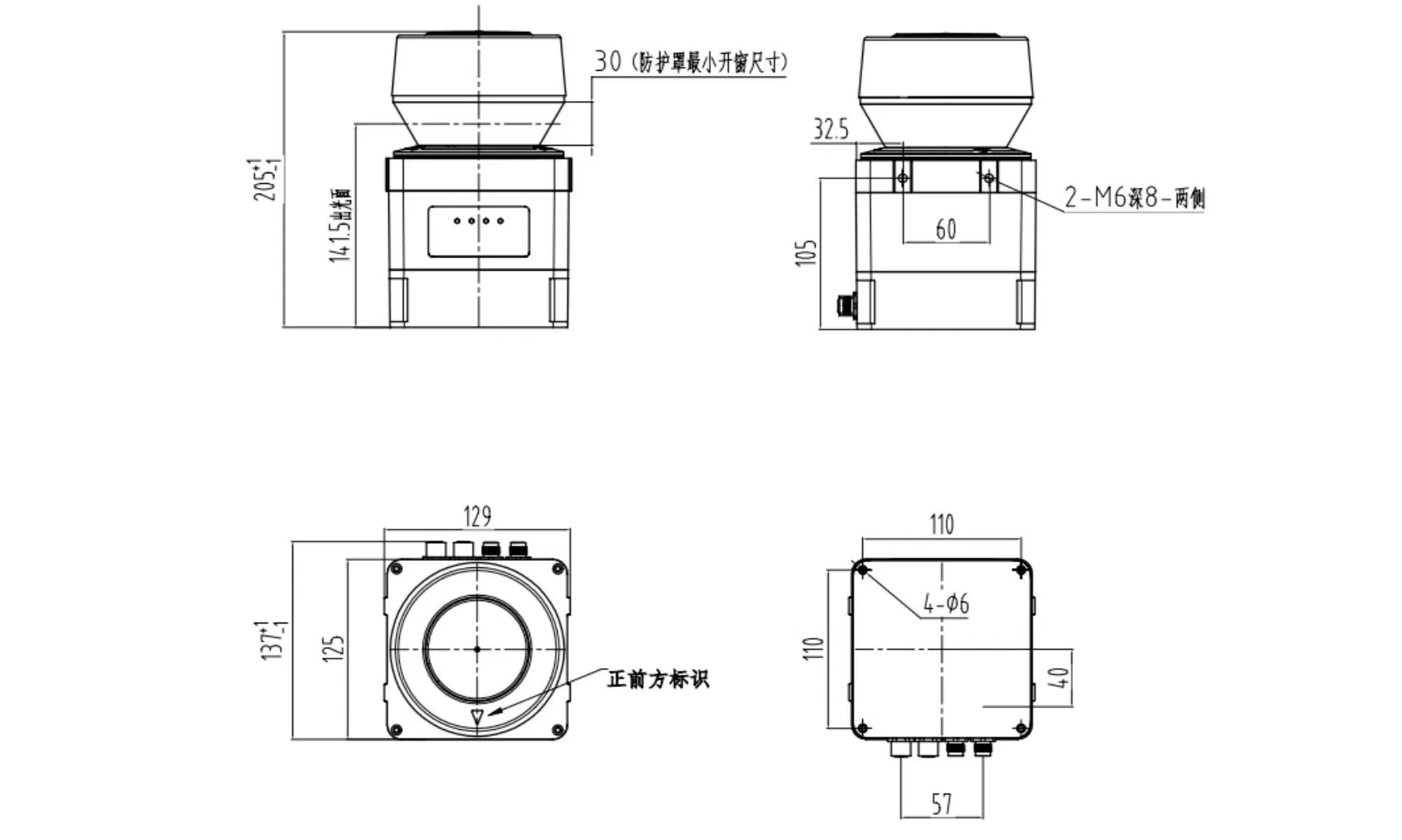

| Specification | 137*110*205mm | Production Capacity | 100,000 Units |

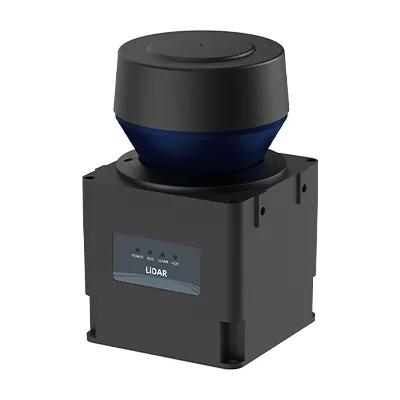

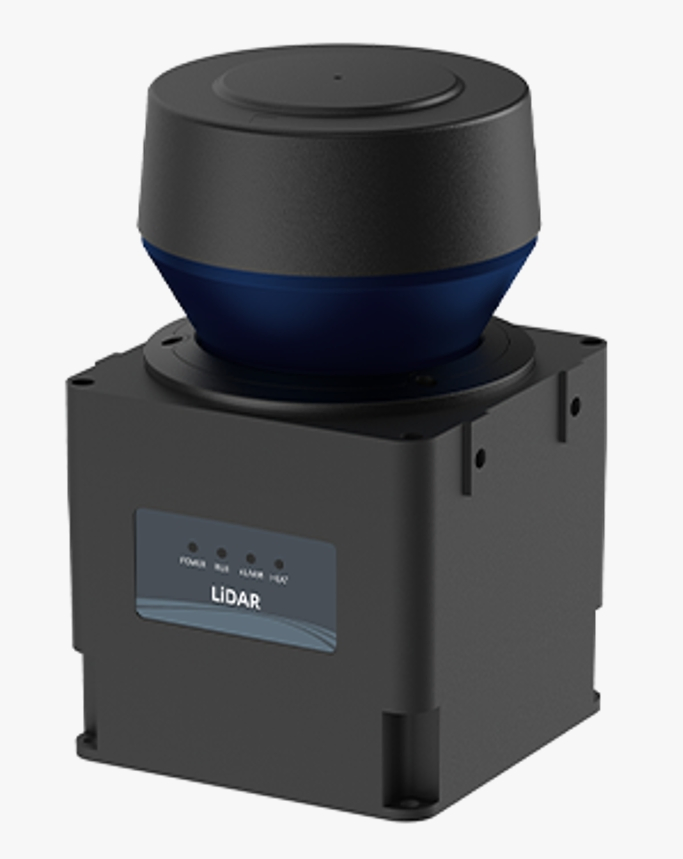

The TH-K60 LiDAR is a measurement-type single-line laser radar specifically designed for bulk scanning applications. It offers an effective measurement distance of up to 60 meters with high precision.
| Parameters | Details |
|---|---|
| Scanning Angle | 270° |
| Working Range | 0.5 - 180m |
| Measurement Distance | 30m@2%; 60m@10%; 180m@90% |
| Scanning Frequency | 25Hz |
| Angular Resolution | 0.0625° |
| EMC Compliance | IEC 61000-6-4 / IEC 61000-6-2 |
| Operating Temperature | -40°C to +70°C (Wide Temp Version) |
| Enclosure Rating | IP67 (IP68 customizable) |
Standard export carton with professional foam lining for maximum protection during transit.
Founded in 1997, our company specializes in smart IoT and intelligent perception. We leverage core technologies including radar detection and video AI analysis to deliver one-stop solutions for railway, telecommunications, and highway industries.

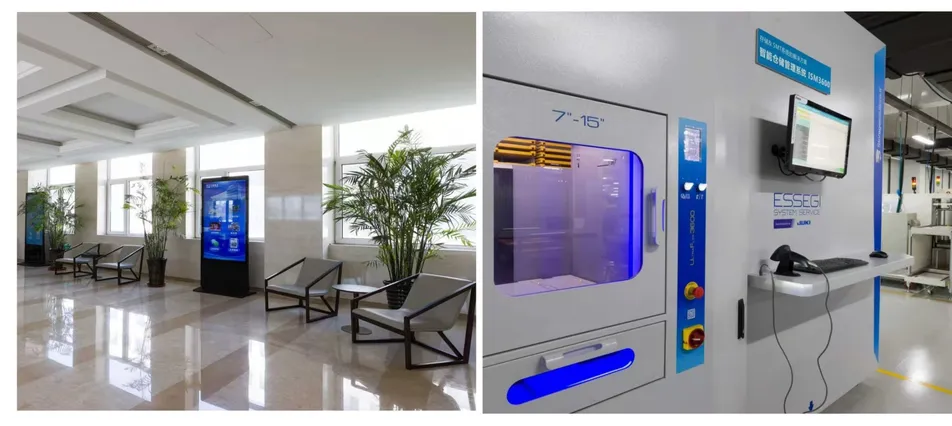

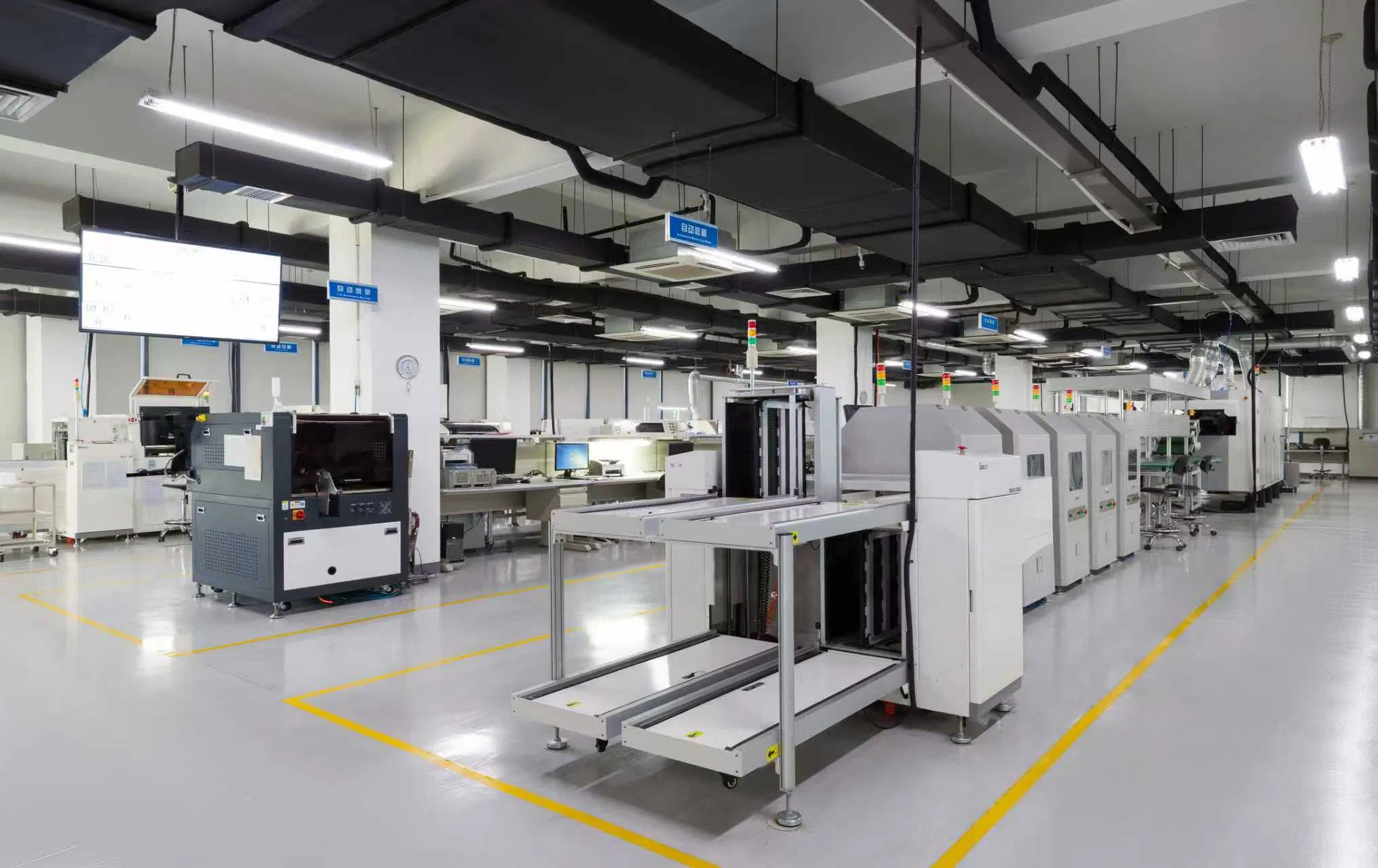

With a 30,000 square meter facility and over 270 employees, we lead the market in LiDAR products. Our solutions are widely applied in emergency management, highway overload control, and smart warehousing.
18-Month Warranty: We stand behind the superior quality of all our LiDAR products with a reliable 18-month warranty, ensuring precision manufacturing and long-lasting performance.
Our support team provides comprehensive design, construction, and maintenance guidance to ensure your operational needs are met with peace of mind.
