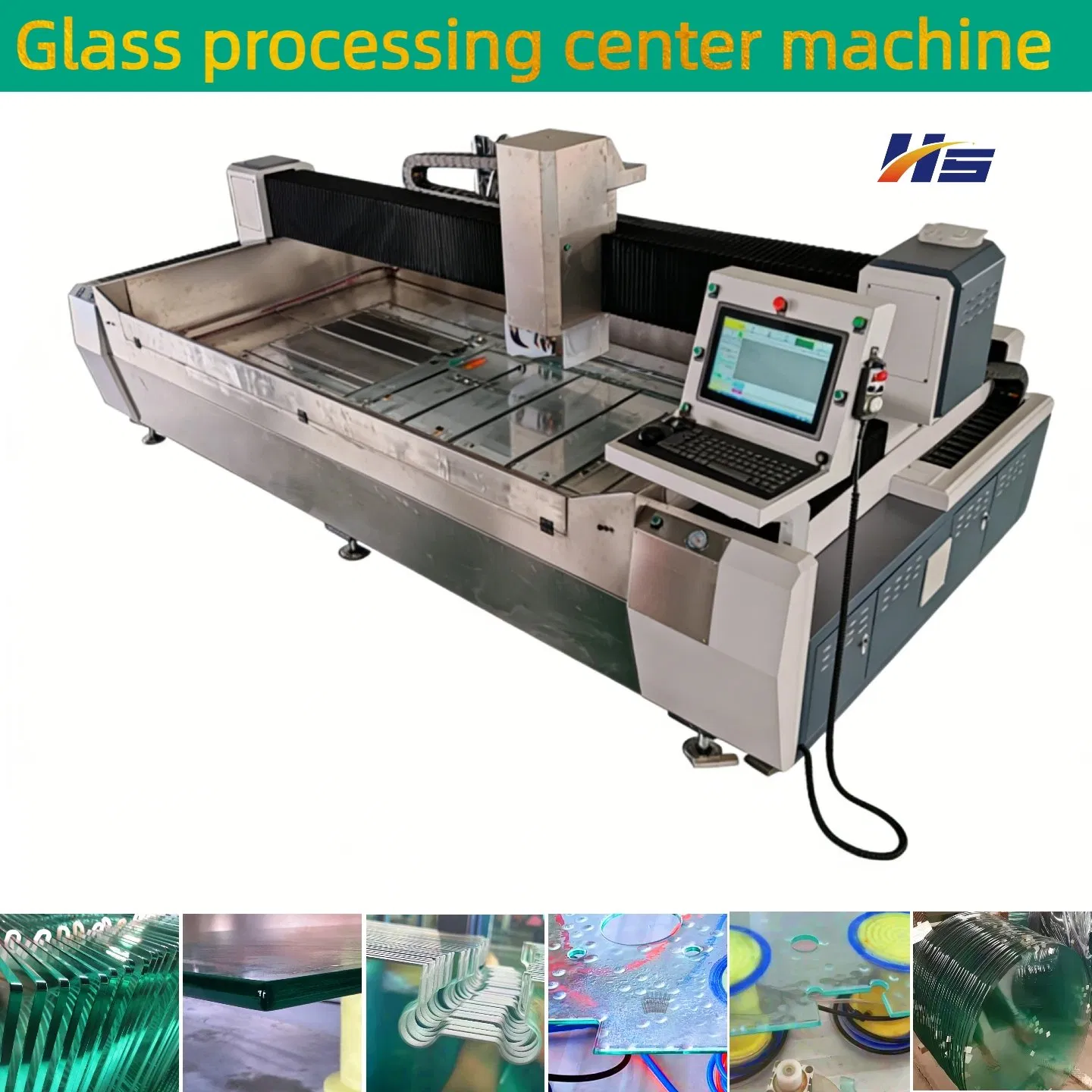

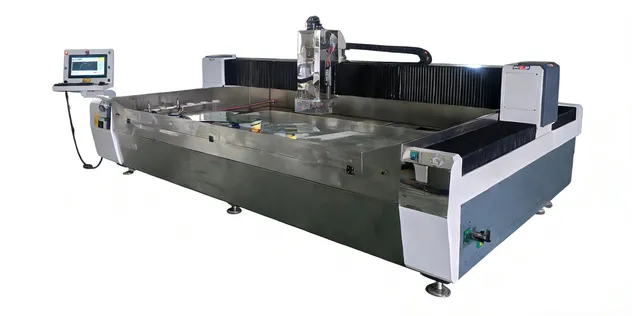

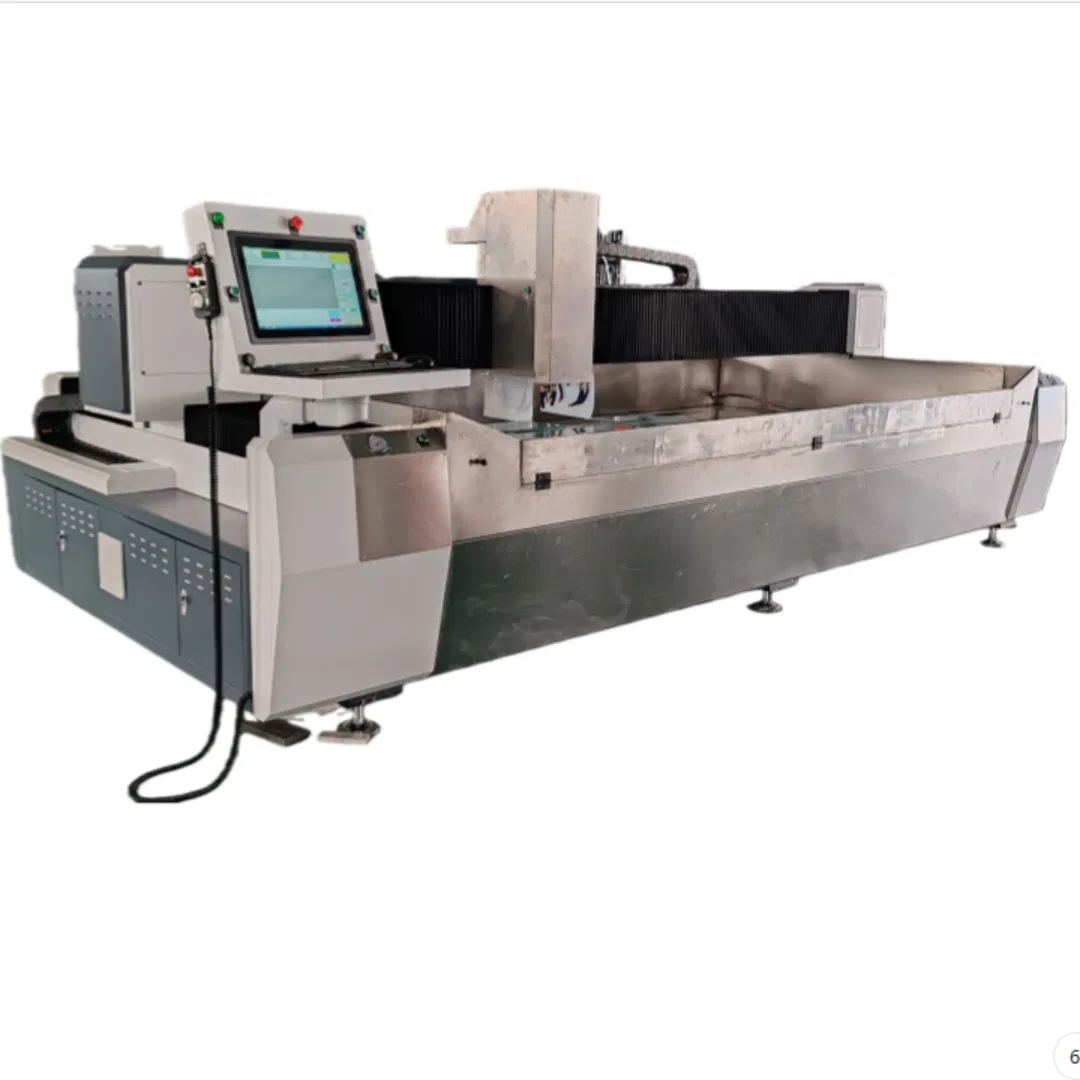

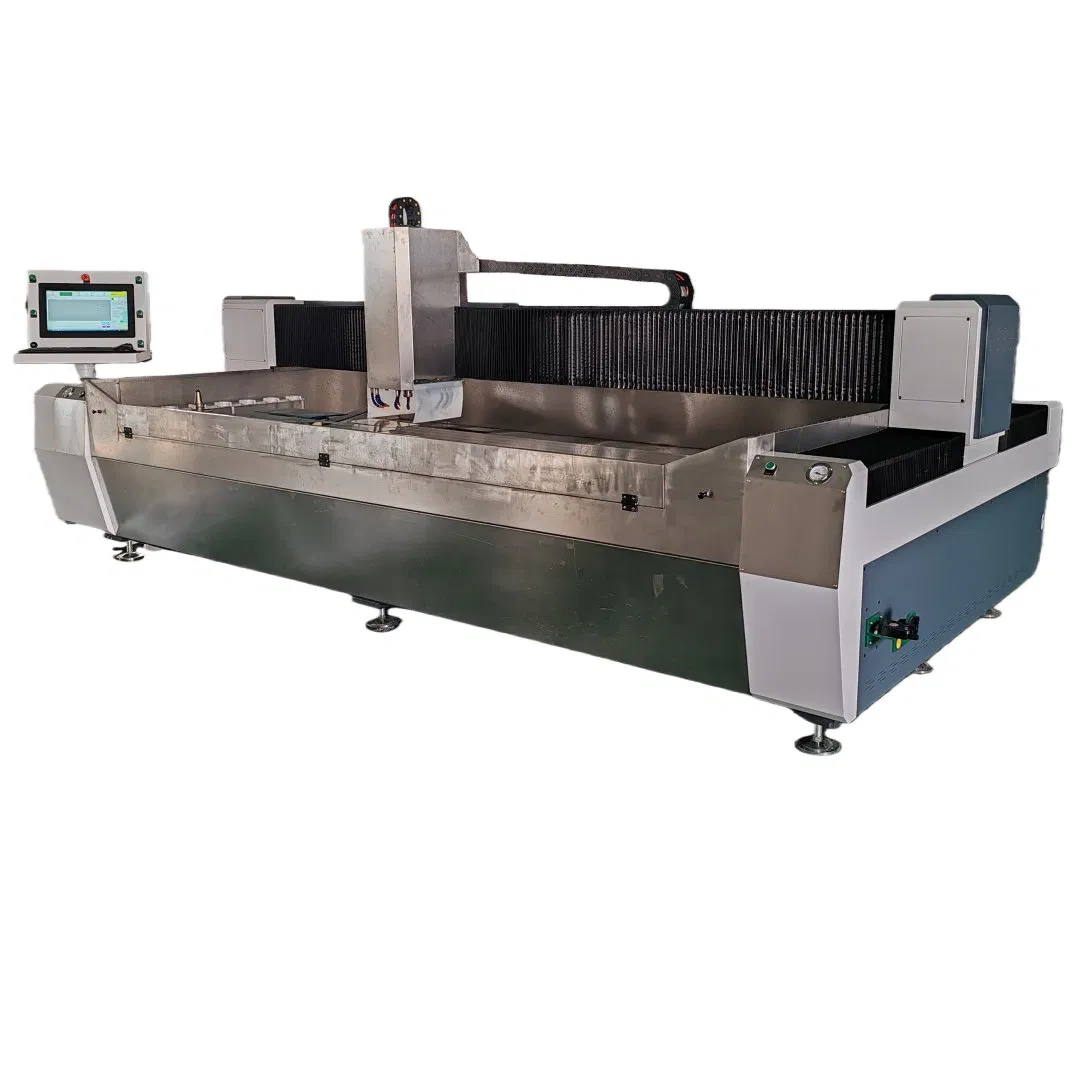

Factory Direct Glass Processing Center Machine External Edging Polishing Notch Digging

Certification:	CE, ISO
Glass Thickness:	2-19mm
Voltage:	380V

📊

Basic Specifications

Model NO.:HS2515

Warranty:1 Year

Working Area:3000*1500mm

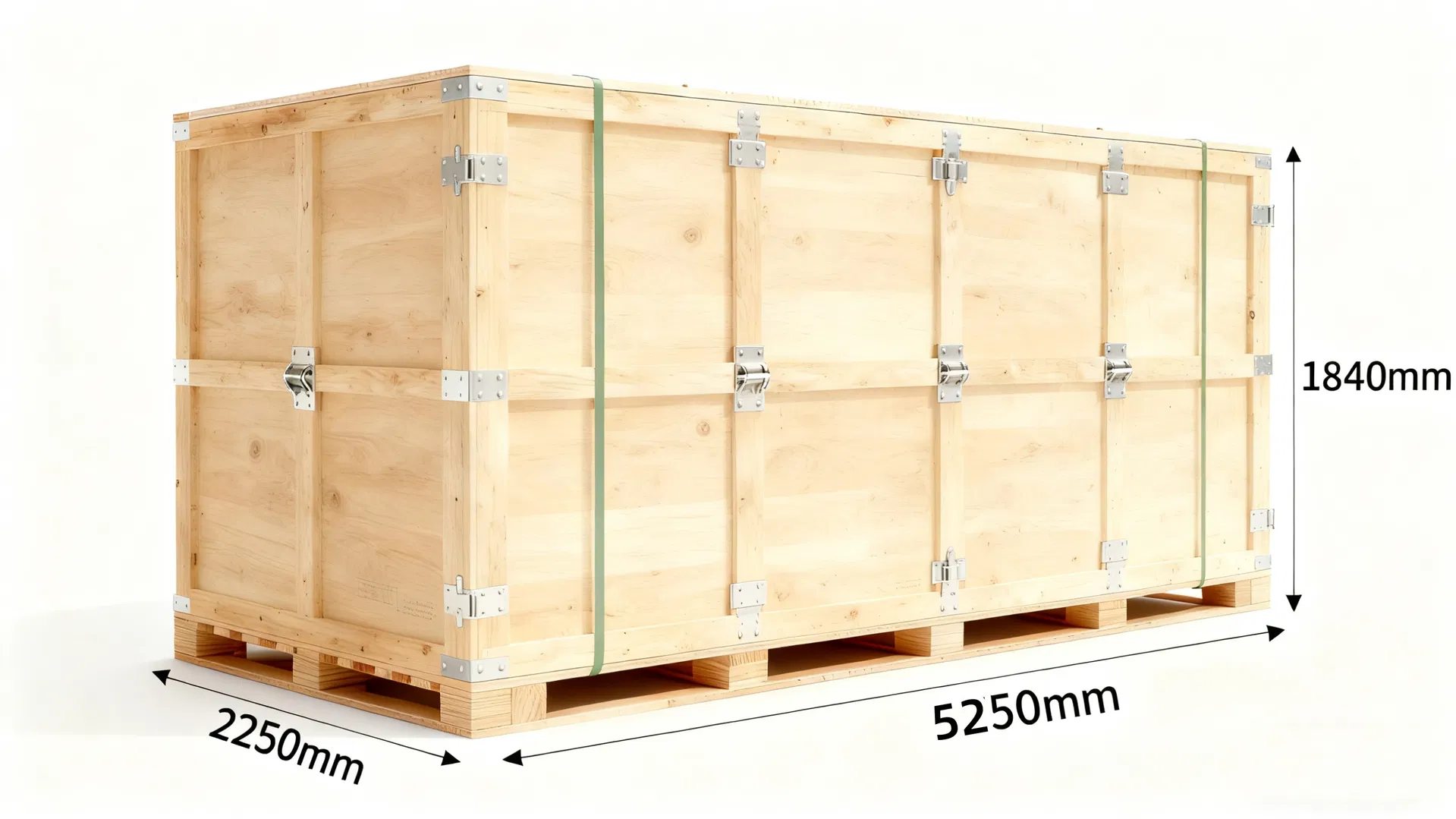

Equipment Size:5200*2250*1800mm

Cooling System:Water Cooling

Operation:Automatic Machine

Origin:China

HS Code:8464201000

⚙️

Product Description

Main Functions

Drilling: Circular or oval holes for hinges, handles, and accessories.
Grooving: Slots for glass splicing, inlaying, or hardware fixing.

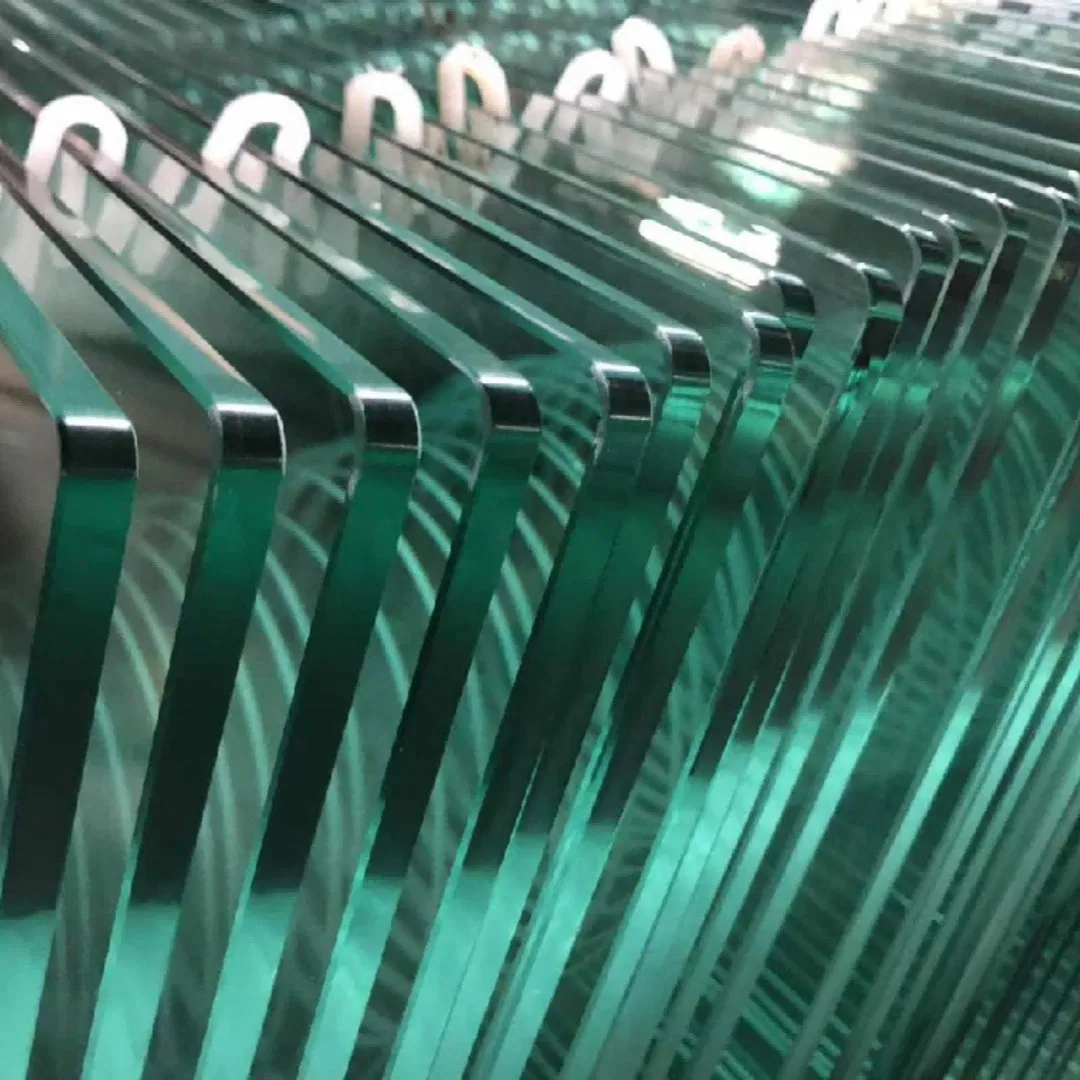

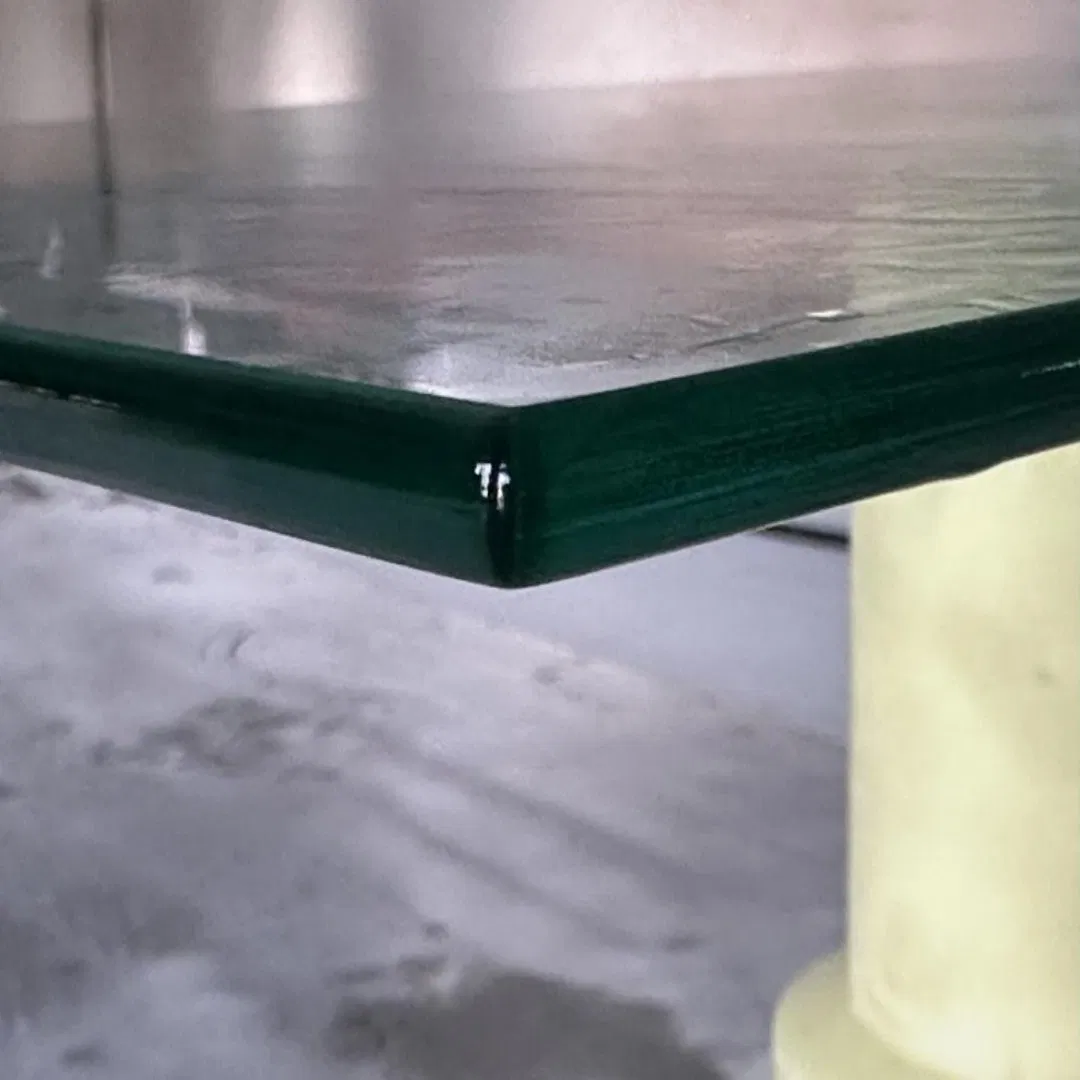

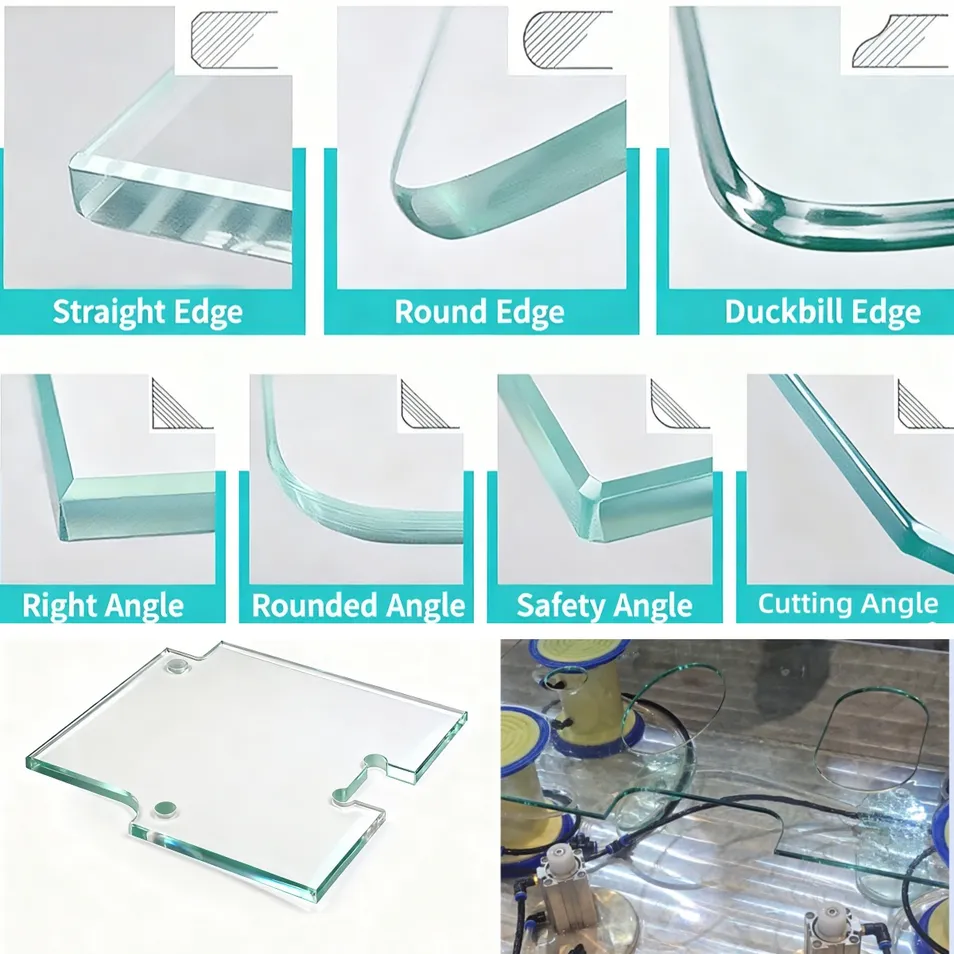

Edge Grinding: Straight, round, bevel, and duckbill edge adjustments.
Chamfering: Rounding edges to prevent scratches and meet fitting requirements.
Polishing: High-gloss treatment for mirror-like decorative finishes.

🎬

Operation Showcase

💎

Technical Advantages

Mechanical Structure

Horizontal structure with thick-walled square tubes, five-axis machining, and heat treatment to ensure long-term mechanical stability and minimal deformation.

High-Precision Spindle

Electric spindle with positioning accuracy of ±0.01mm and repeatability of ±0.005mm for ultra-stable output.

Smart Control System

Professional glass processing system with a built-in image library and multiple modes for easy operation.

Automatic Tool Changer

Equipped with a 6-tool magazine to meet various processing techniques automatically.

📏

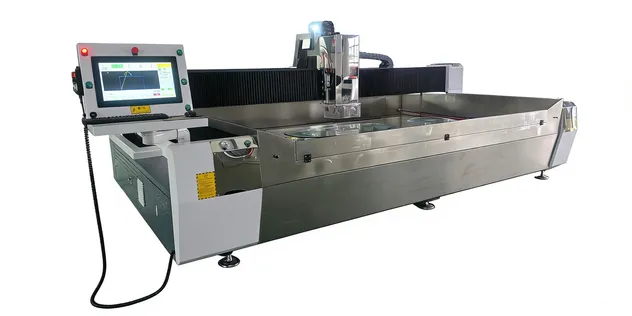

Technical Specifications

Custom configurations available upon request. Models: HS-2010, HS-2515, HS-2025, HS-3015, HS-3020, HS-4020.

Model Parameter	2515	3015	3020
X / Y Axis Travel	2500 / 1500mm	3000 / 1500mm	3000 / 2000mm
Z Axis Travel	350mm	350mm	350mm
Max Loading	300KG
Spindle Motor	15KW
Positioning Precision	±0.05mm
Repeatability	±0.03mm
Glass Thickness	2-19mm
Machine Weight	4000KG	4800KG	5600KG

🔍

Machine Components

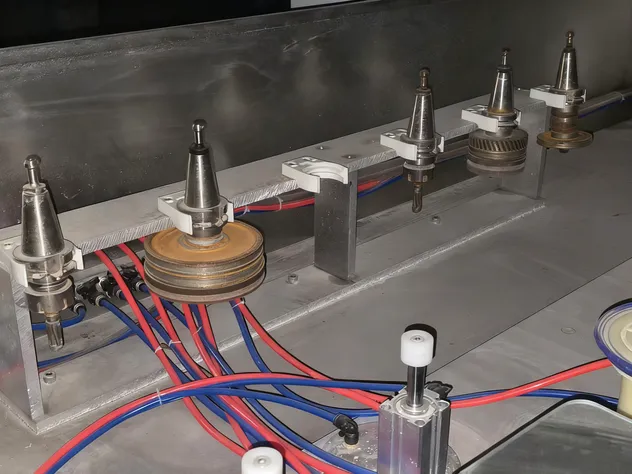

Automatic Tool Changer

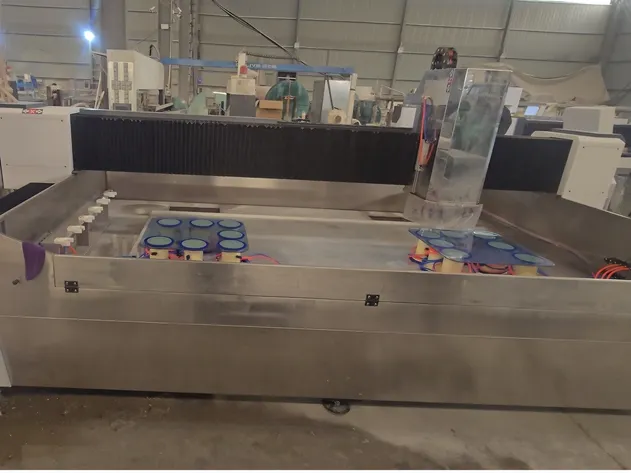

Dual Station Processing

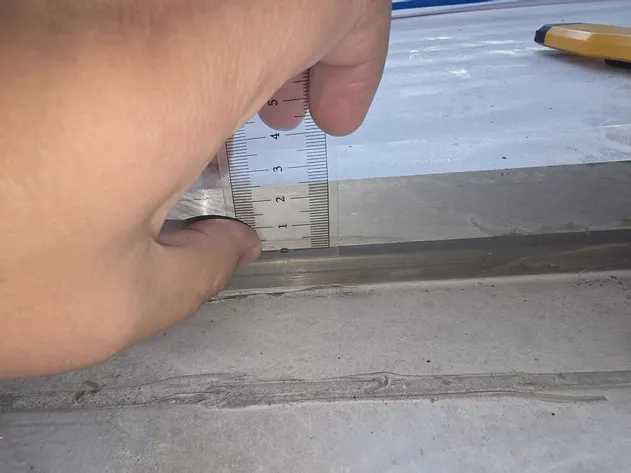

Aluminum Plate Surface

🪟

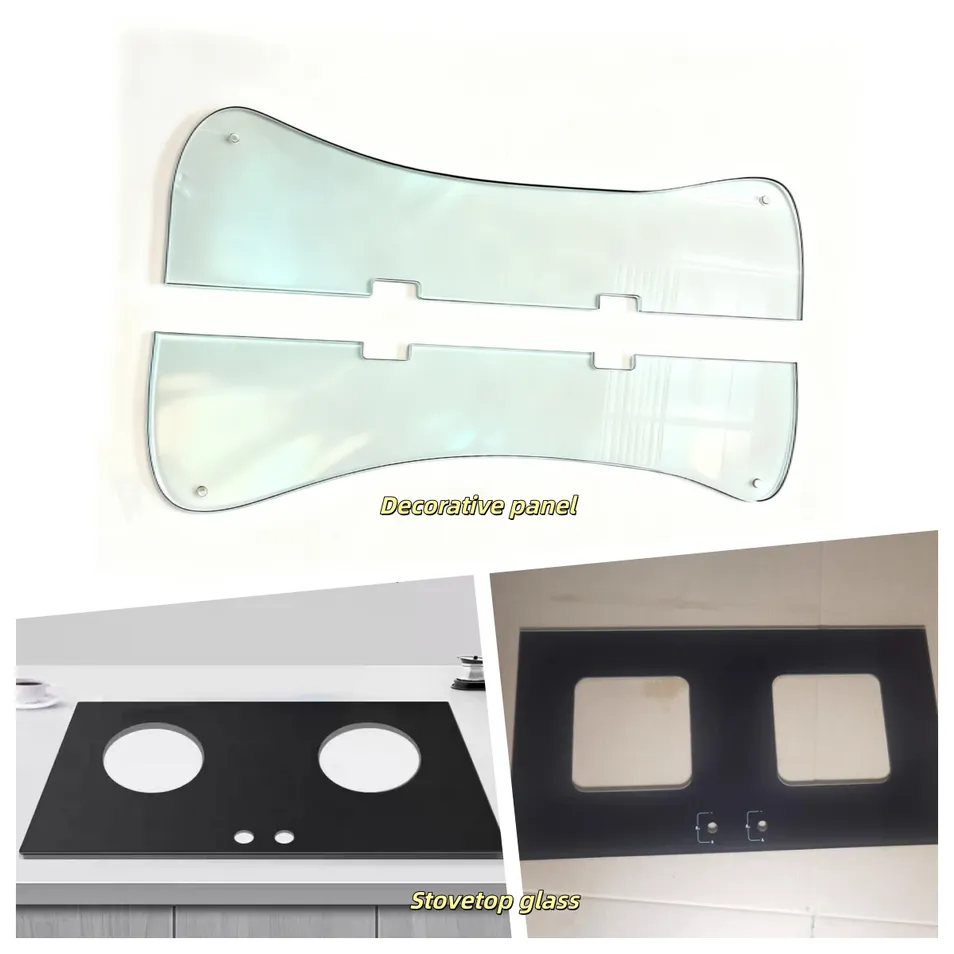

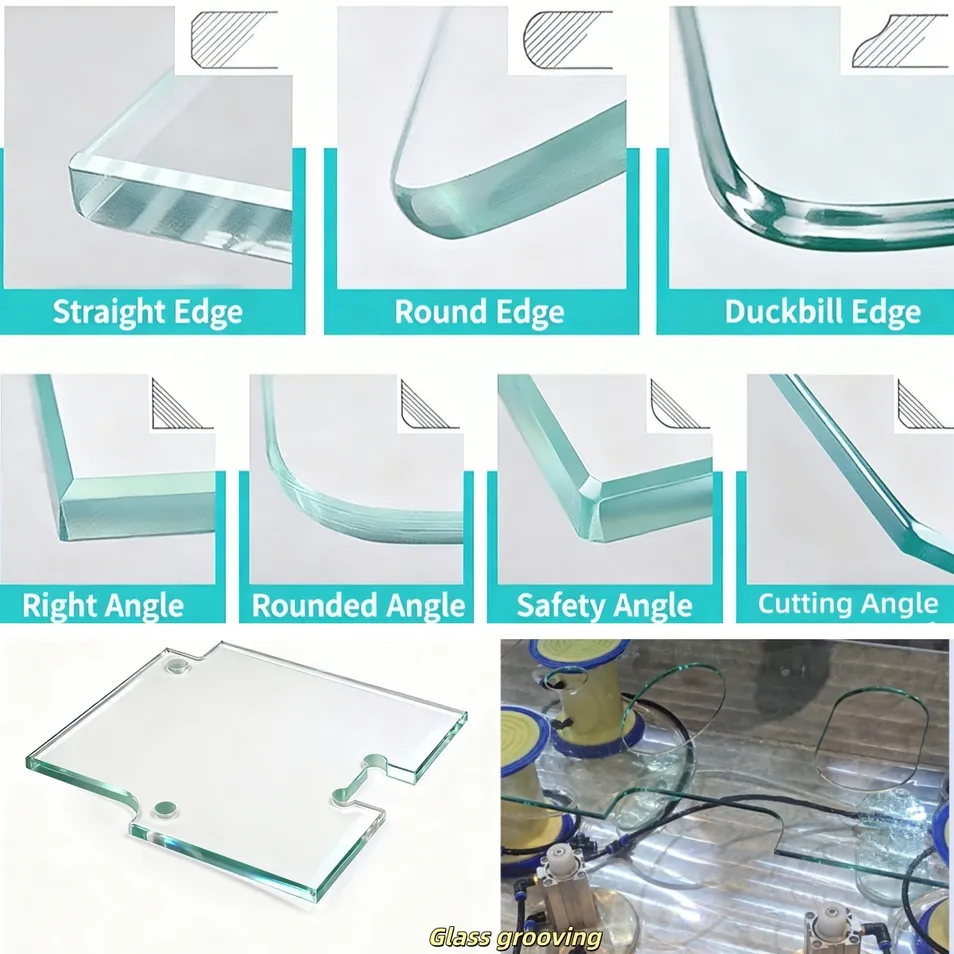

Application Samples

Suitable for furniture glass, appliance glass, doors, mirrors, aquarium glass, and automotive glass.

🛠️

After-Sales Service

Standard Warranty: 12 months coverage.
Extended Warranty: Optional coverage up to 36 months.
Global Support: 24/7 technical assistance and spare parts supply.
Professional Training: On-site or remote operation and maintenance training.

❓

Frequently Asked Questions

Q: What is the typical lead time for orders?

A: Standard models typically ship within 15–30 days. For customized units, the lead time is approximately 30–45 days.

Q: Do you offer international after-sales support?

A: Yes, we provide 24/7 global technical assistance and have partnered service centers in key regions to support our overseas clients.

Q: Can the machine dimensions be customized?

A: Absolutely. We offer comprehensive customization services for machine sizes and configurations to meet your specific production needs.

Q: Are you a direct manufacturer?

A: Yes, we are a professional manufacturer of CNC equipment with dedicated R&D and production capabilities, including industry-university research partnerships.

Q: What kind of training do you provide?

A: We offer both on-site and remote training programs covering machine operation, safety protocols, and routine maintenance.

Q: How do I initiate a purchase order?

A: You can reach out to our team for a formal quote. Once details are finalized, the order can be confirmed via a standard Purchase Order (PO).
