Point Cloud Detect Optical Images Panoramo Camera with Laser Profiling Scanner

Customization:	Available
After-sales Service:	Spare Parts Offered
Warranty:	12 Months

Basic Specifications

Model NO.

X5-HL

Type

Sewer Inspection

Resolution

1920*1080

Camera 1

Pan-Tilt, Zoom

Camera 2

Panorama Camera

View

Front and Rear

Water Proof

IP68

Pipeline Diameter

300-1000mm

Distance

150/300 Meters

Application

Municipal Sewer Pipe

HS Code

8525803100

Capacity

100 Sets Per Month

Product Overview

Point Cloud Detect Optical Images Panoramo Camera with Laser Profiling Scanner (Model: X5-HS, 300-1000mm pipe)

Integrated Pipe Monitor Platform

This platform supports users tracking camera real-time location and managing camera systems online.

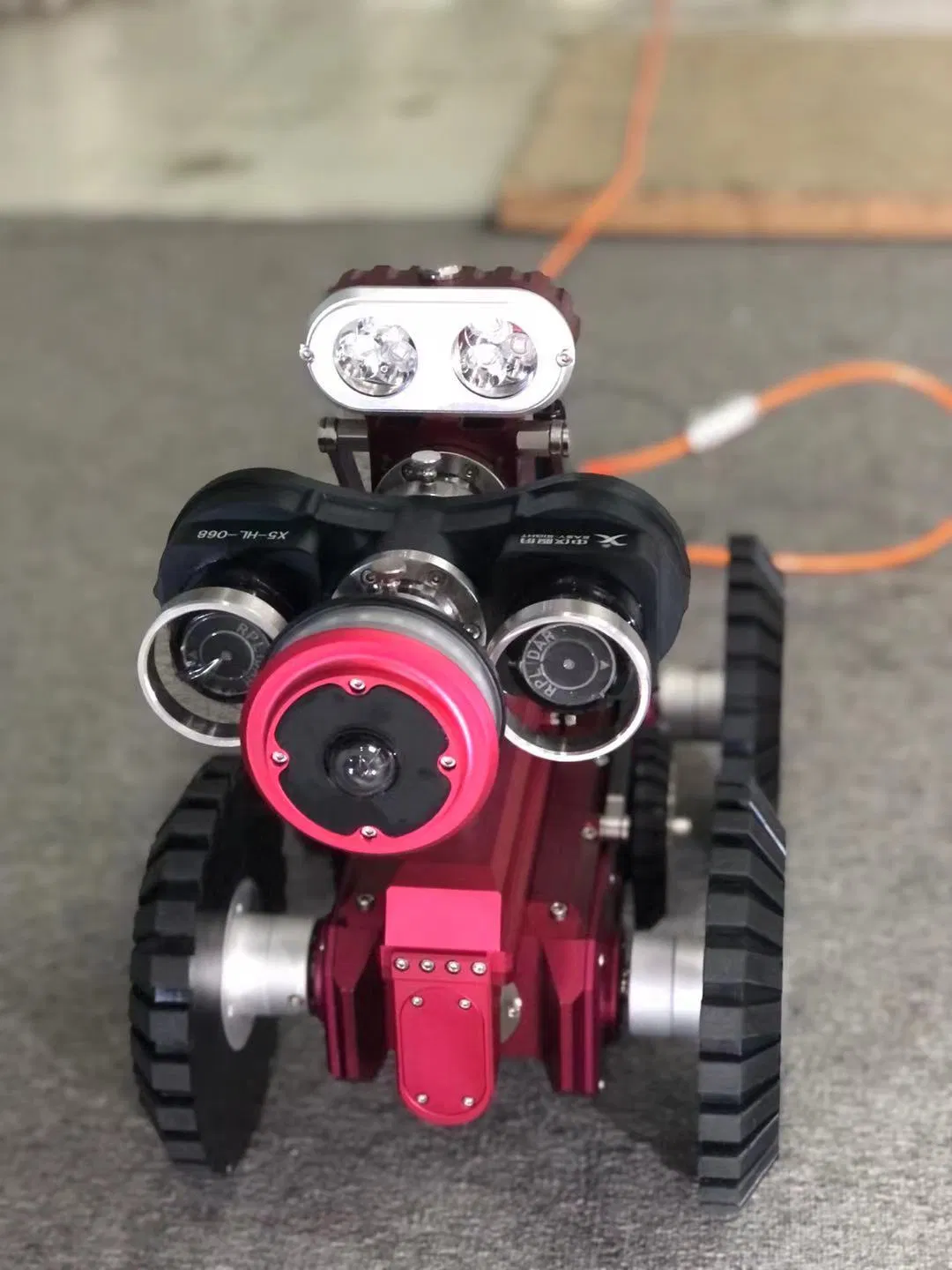

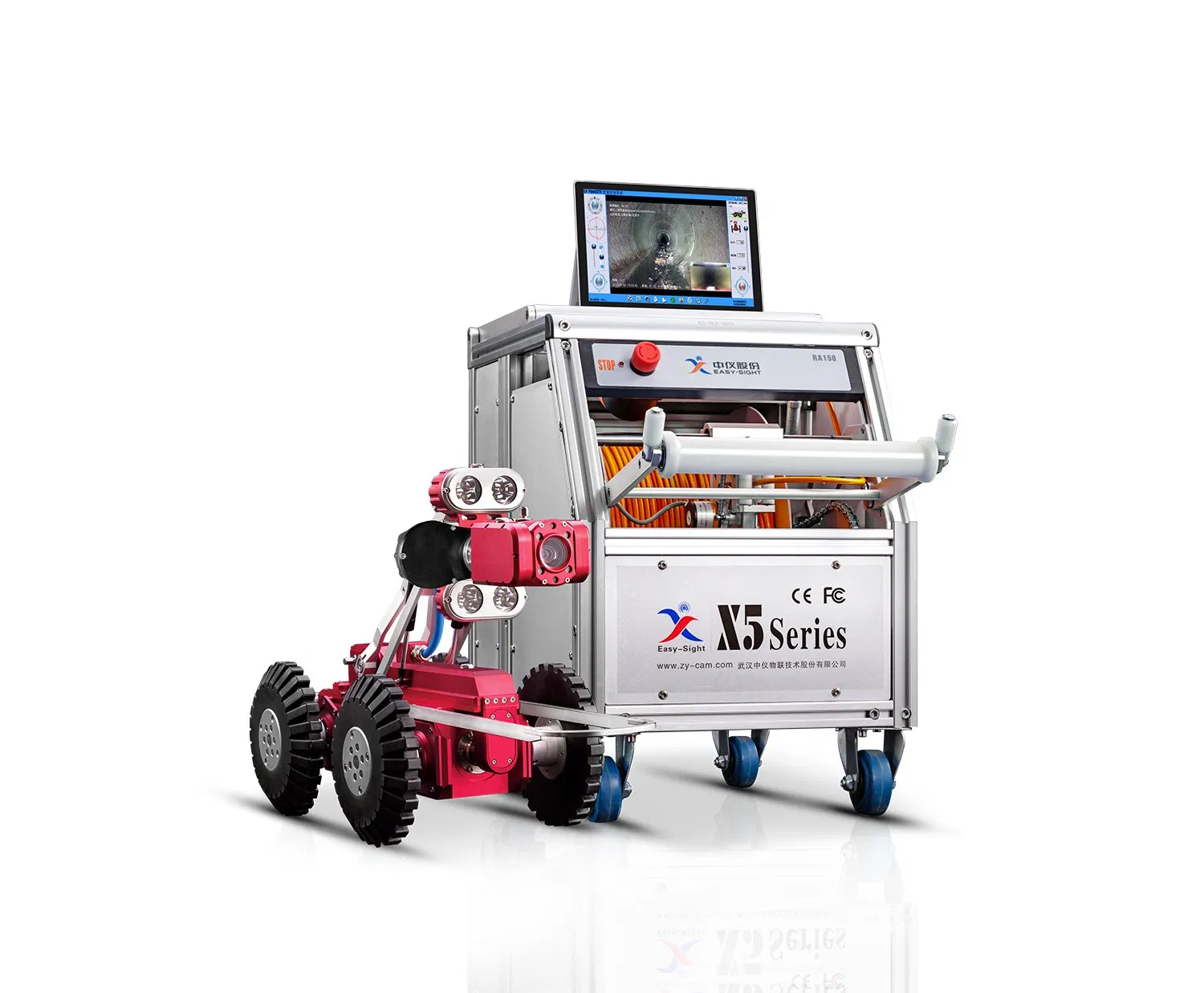

The X5-H Panoramic Quantitative pipeline inspection robot features composite inspection technology: Panorama camera and laser profiling scanner. The system consists of a crawler, panorama camera, laser profiling scanner, cable drum, and main control unit.

Technical Parameters

Main Controller	- Available in any notebook computer as the control system - Wireless control - Real-time display of date, time, travel distance, and crawling attitude - Simultaneous front and rear sight display
Electric Cable Reel	- Standard cable length 150M (Max 300M) - Two-core cable to reduce joint failure rate - Automatic retractable cord

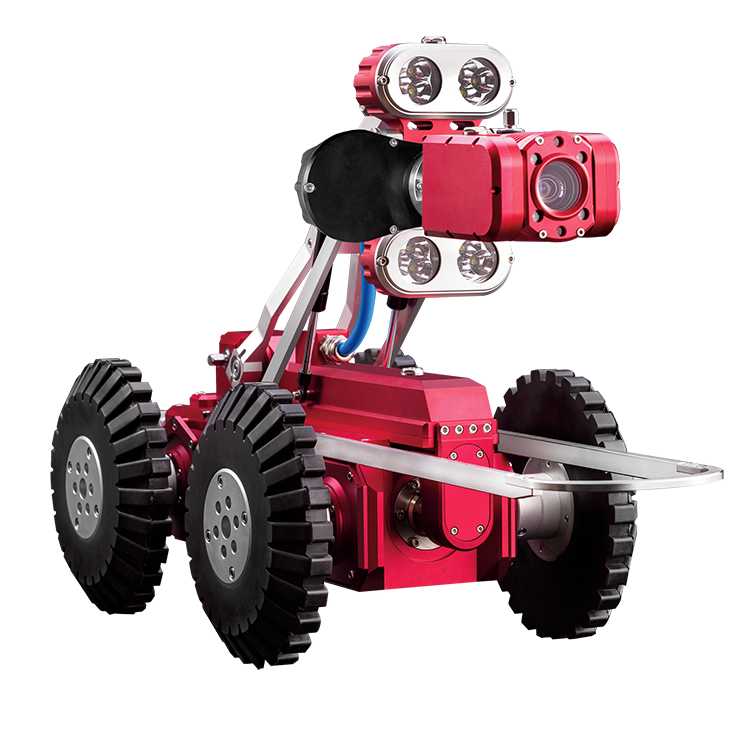

Crawler	- IP68 waterproof up to 10 meters - Diameter range: DN300mm - DN1000mm - Material: Brass, stainless steel, aluminum alloy - Electric lift frame, removable
PTZ & Panorama Camera	- High resolution 1920*1080 - 360° radial limitless rotation - Sensitivity: 0.1Lux - Four integrated LED lights

Quantitative Analysis Software

PipeScan Inspection Software

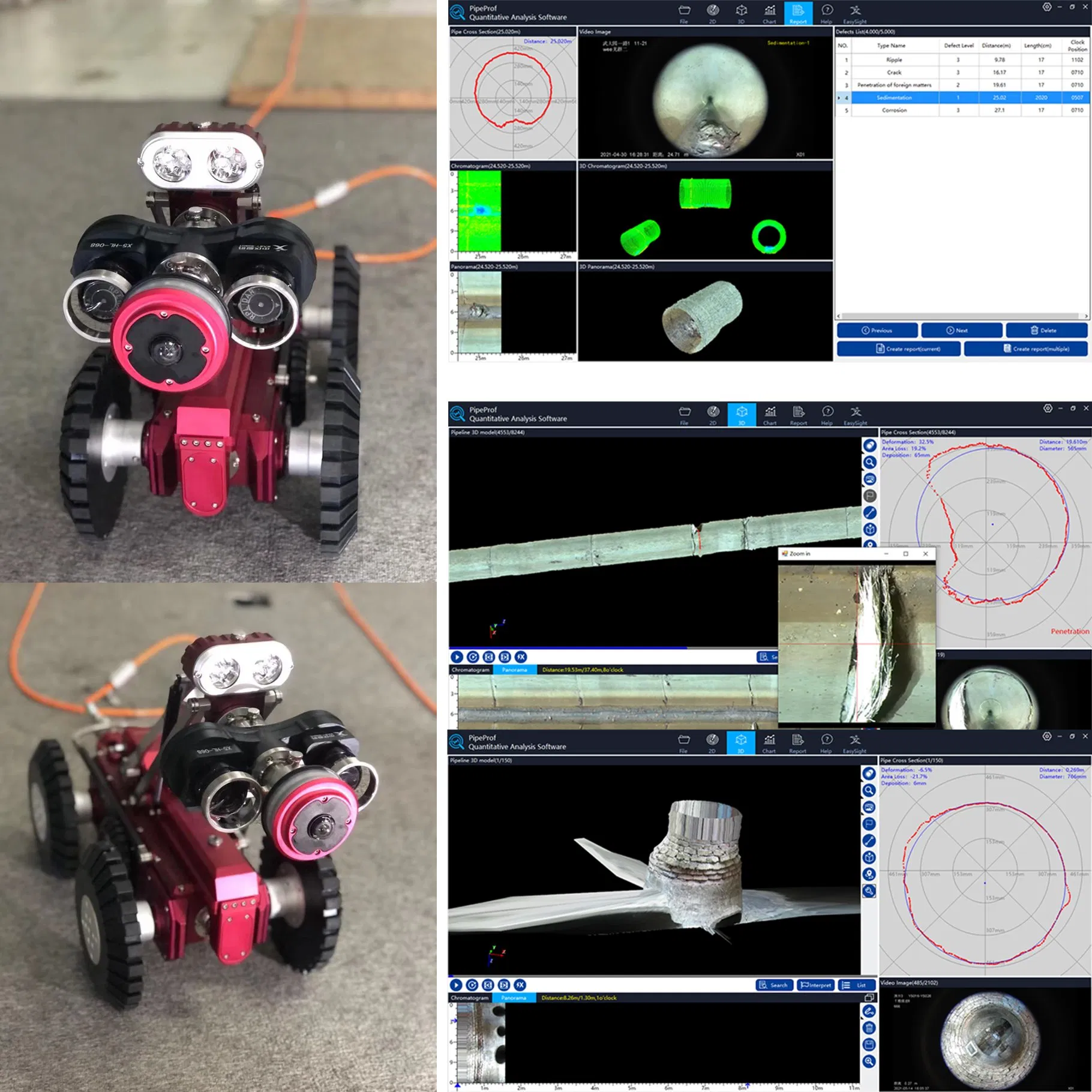

Displays and records real-time camera feeds and crawler status. Features include HD video storage, defect image capture, pipeline slope curve generation, and automatic panoramic drawing of the inner pipe wall.

PipeProf Analysis Software

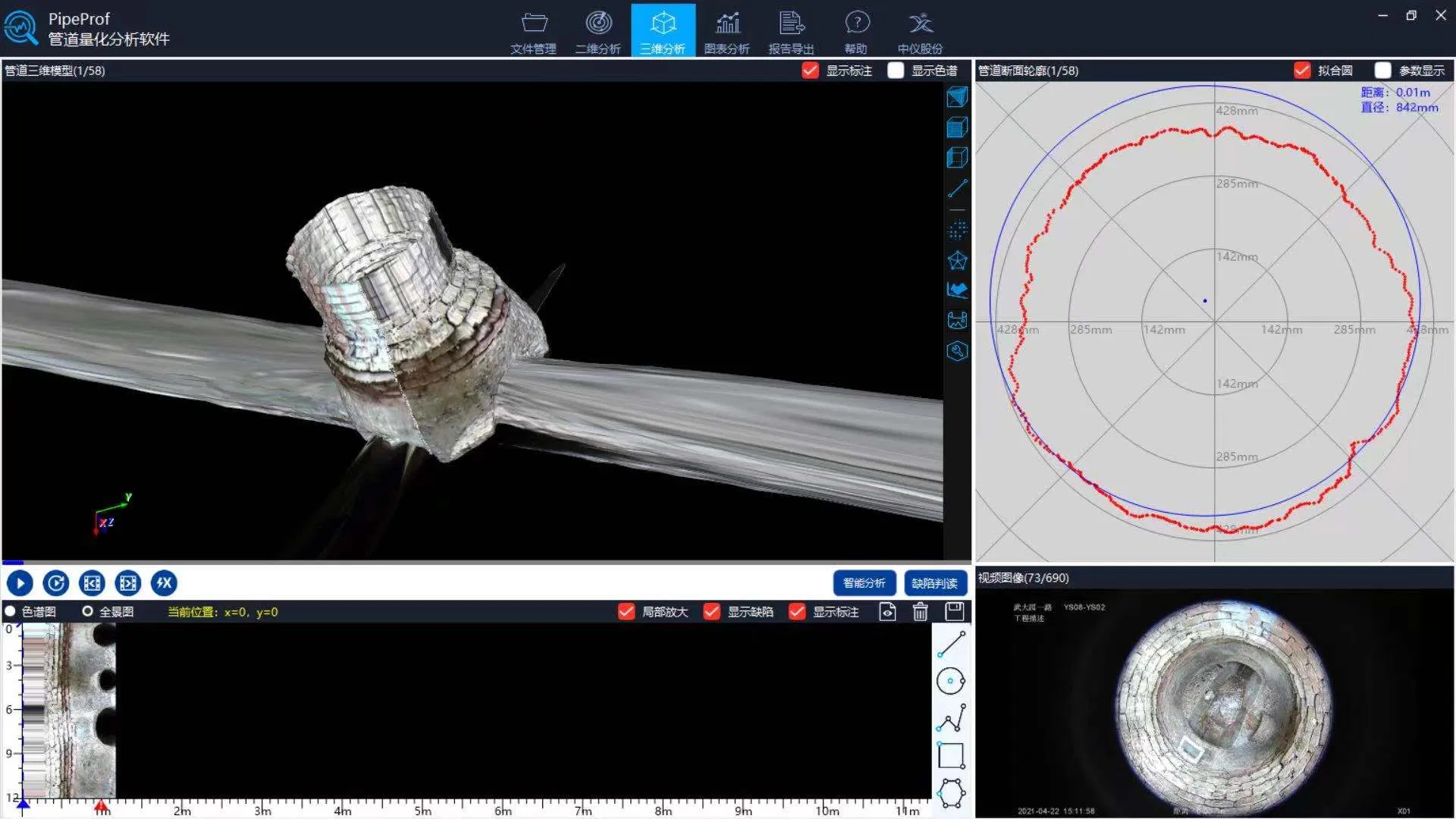

Developed for displaying and editing pipeline cross-sectional profiles. It constructs 3D cloud models, analyzes 2D/3D panoramas, and exports detailed test reports including deformation rates and deposition charts.

System Advantages

⚖️ Lightweight Design

The whole machine, including master control and cable reel, is optimized for portability and PC-based control.

⚡ Fast Deployment

Quick assembly on-site with wireless data transmission capabilities for efficient detection.

🔄 Good Synchronization

Synchronized display of front and rear video screens for comprehensive monitoring.

🛡️ Stable & Durable

IP68 waterproof and explosion-proof design ensures performance in harsh environments.

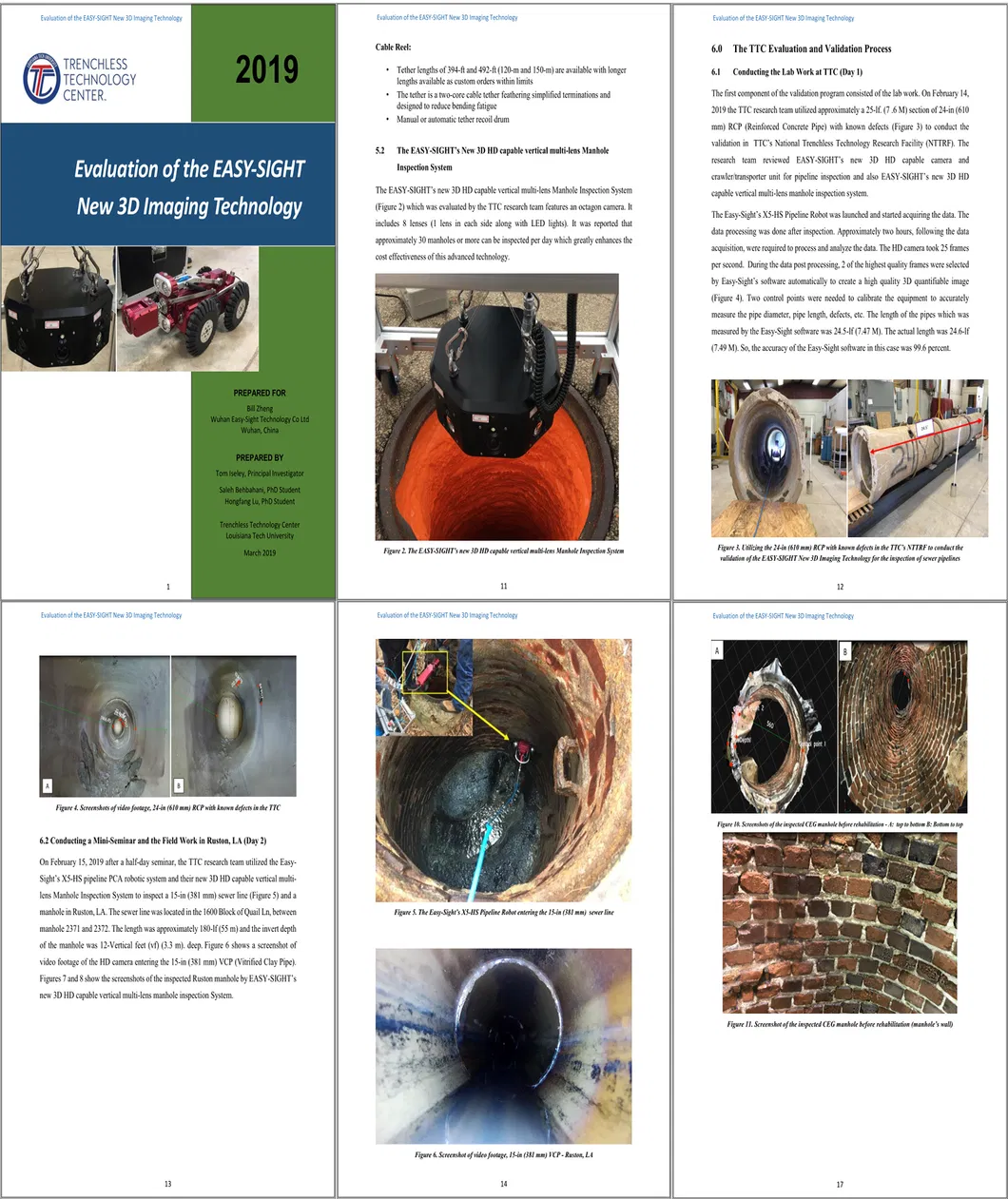

Field Application & Quality

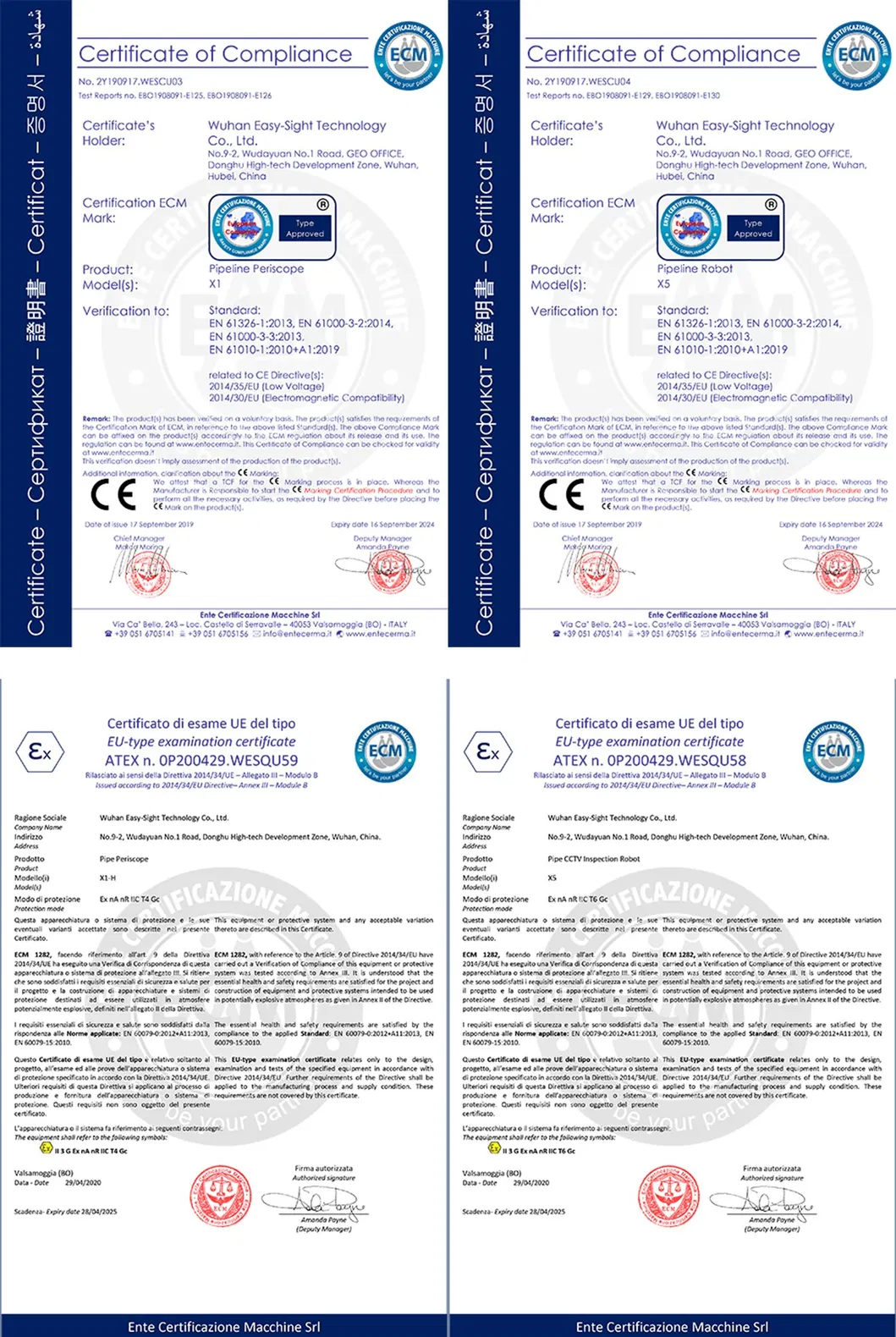

The system holds international certifications including CE, FCC, ATEX, and ISO.

Global Presence & Logistics

Professional Packing

Our Service Commitment

Technical Support

Focused on providing efficient and environmentally friendly drainage network solutions and repair services.

Warranty Policy

12-month warranty from arrival date with lifelong maintenance and competitive spare parts pricing.

Training

Detailed operational manuals and video training provided. Free factory training is available for all users.
