Smart Cloud Detection System for Multi-Layer Atmospheric Measurements

Customization:	Available
After-sales Service:	One Year
Warranty:	One Year

Send Inquiry

Product Description

Basic Information

Model NO.

RK320-01

Type

Laser Ceilometer

Range

30-10000m

Accuracy Grade

Measurement Layers

Up to 3 Layers

Resolution

Power Source

AC220V (198VAC~242VAC)

Sampling Period

30s to 300s (Adjustable)

Customized Support

OEM, ODM

Working Temp.

-40℃~50℃

Product Description

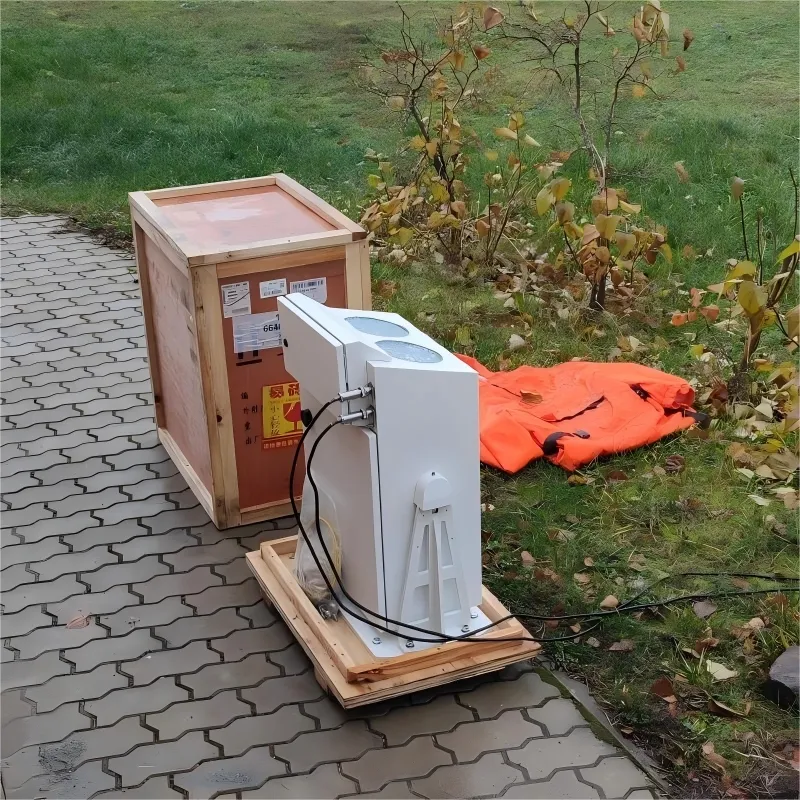

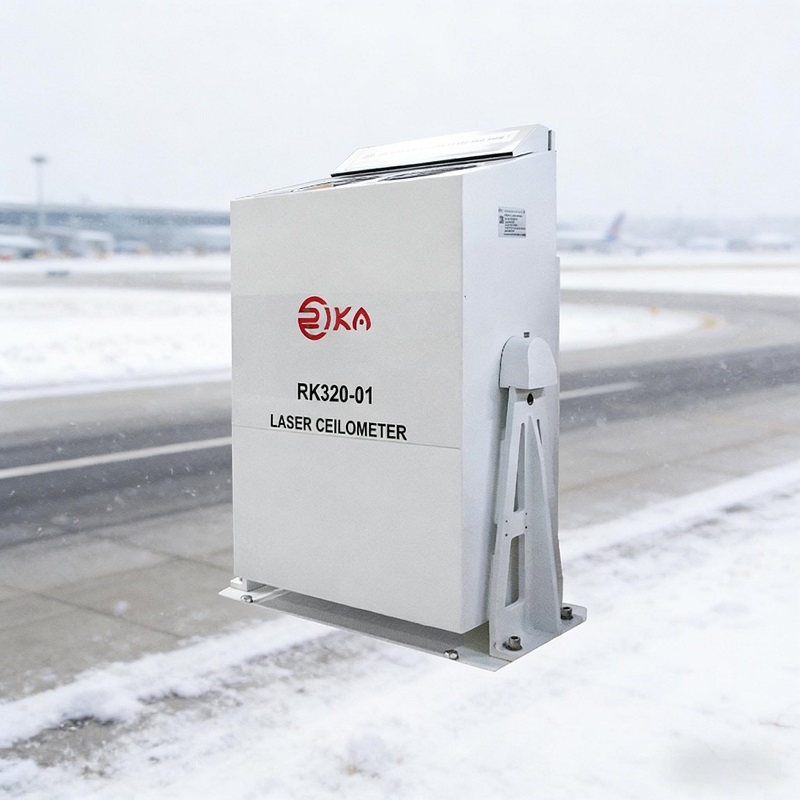

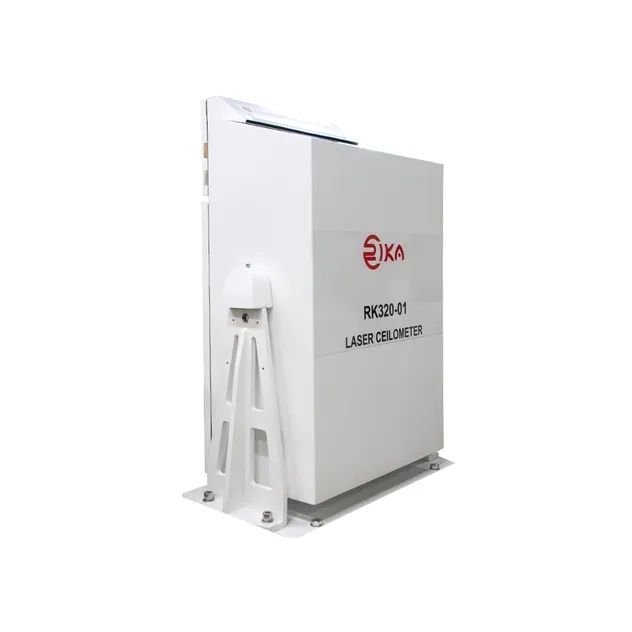

The RK320-01 Laser Ceilometer is a high-precision instrument designed to measure cloud base height, cloud layer thickness, and cloud amount. It provides critical data on vertical visibility in blurred skies, making it an essential tool for aviation and meteorological monitoring.

Key Features

✔ Automatic cloud base height collection

✔ Multi-layer detection (up to 3 layers)

✔ Two-direction inclination measurement

✔ Built-in self-check and automatic protection

✔ Robust historical data storage

Applications

✈ Airports and Aviation Safety

🚢 Maritime and Ship Monitoring

🚗 Transportation Departments

☁ Weather and Research Stations

🔬 Environmental Protection

Technical Specifications

Item	Technical Specification
Measurement Range	30 - 10,000 m
Hard Object Error	±15 m
Accuracy (Visibility >2km)	Cloud height <1km: ±200m; Cloud height ≥1km: ±20%
Resolution	5 m
Power Consumption	No heating: ≤100W; Heating: ≤700W
Communication Interface	RS232 / RS485
Transmission Distance	≥300m (Wired)
Reliability (MTBF)	≥ 500 hours
Repair Time (MTTR)	≤ 0.5 hours

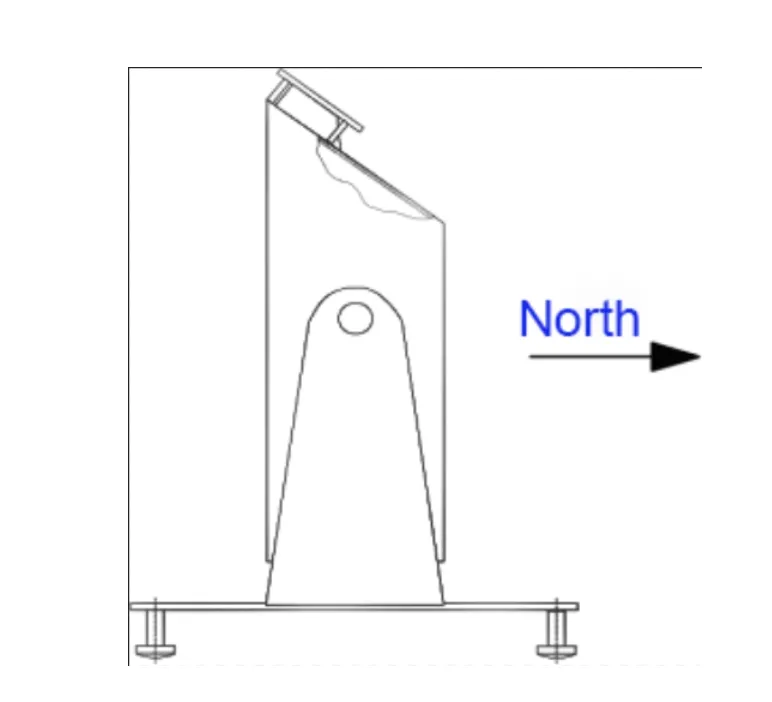

Installation & Setup

Preparation: Plan power, grounding, and communication lines carefully. Ensure the foundation is stable.

Positioning: Install the ceilometer horizontally for hard objects and vertically for cloud layer detection.

Sunlight Protection: Ensure no direct sunlight hits the lens. Alignment should be adjusted based on seasonal guidelines to prevent exposure.

Packaging & Delivery

Package Size

75.00cm * 90.00cm * 50.00cm

Gross Weight

85.000kg

Delivery Time

6-8 days post-payment

Frequently Asked Questions

What is the maximum cloud detection range?

The RK320-01 can measure cloud base heights and hard objects within a range of 30 to 10,000 meters.

How many cloud layers can the device detect?

The system is capable of detecting and reporting up to 3 different layers of clouds simultaneously.

Does the ceilometer operate in extreme weather?

Yes, it is designed for working environments ranging from -40℃ to 50℃ and relative humidity up to 95% at 30℃. It includes a heating function for cold conditions.

What communication interfaces are supported?

The device supports standard RS232 and RS485 interfaces for wired data transmission.

Is customization available for specific project needs?

Yes, we provide OEM and ODM services, including customized configurations and logo marking for orders of 10 pieces or more.

What is the warranty and support policy?

We offer an 18-month quality guarantee and a free exchange service within the first month for quality-related issues.
