Fully automatic multifunctional tablet and capsule counting production line

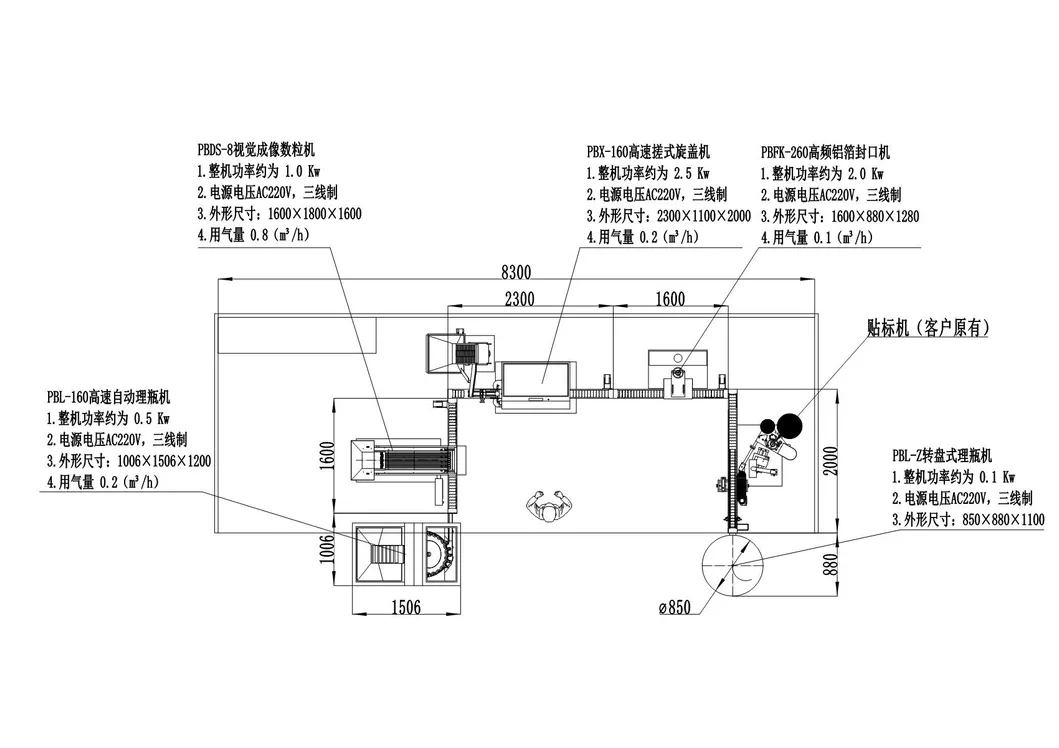

The bottled assembly line consists of the following single machines: high-speed automatic bottle unscrambler (PBL-160) + bottle unscrambler plate + visual imaging capsule counter (PBDS-8) + high-speed rubbing capping machine (PBX-160) including belt capping + turntable bottle unscrambler (PBL-Z φ850mm) + high-frequency aluminum foil sealing machine (PBFK-260 air-cooled).
Medium Speed Line Features:

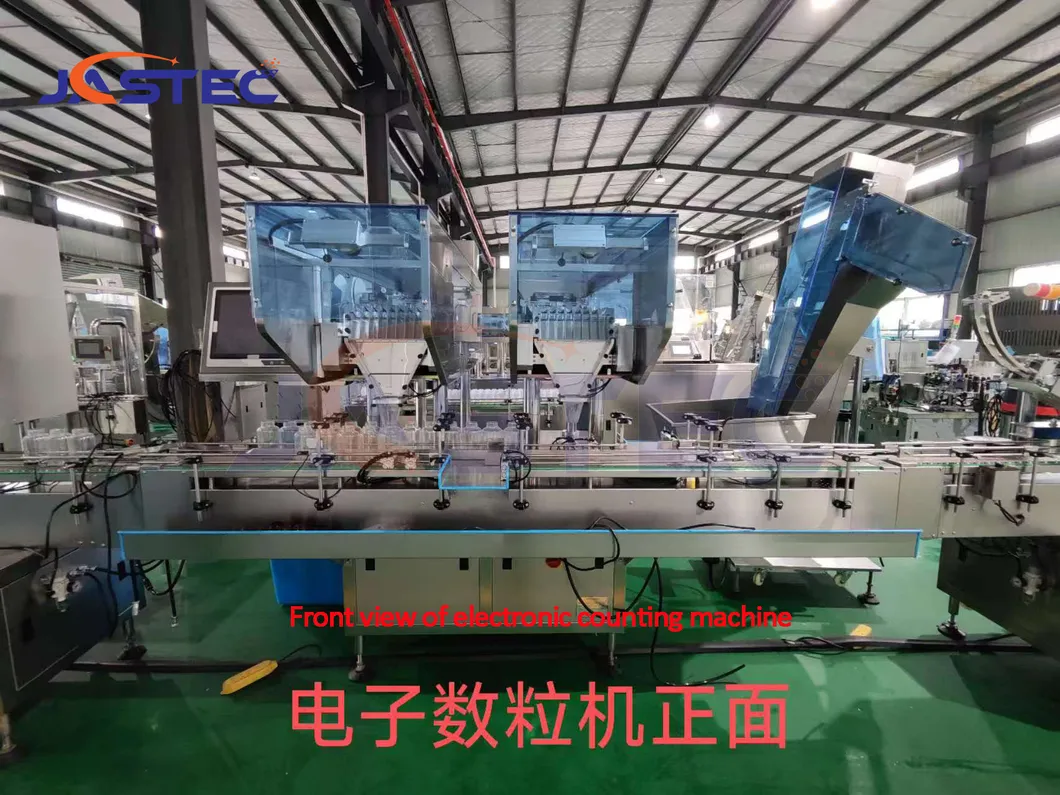

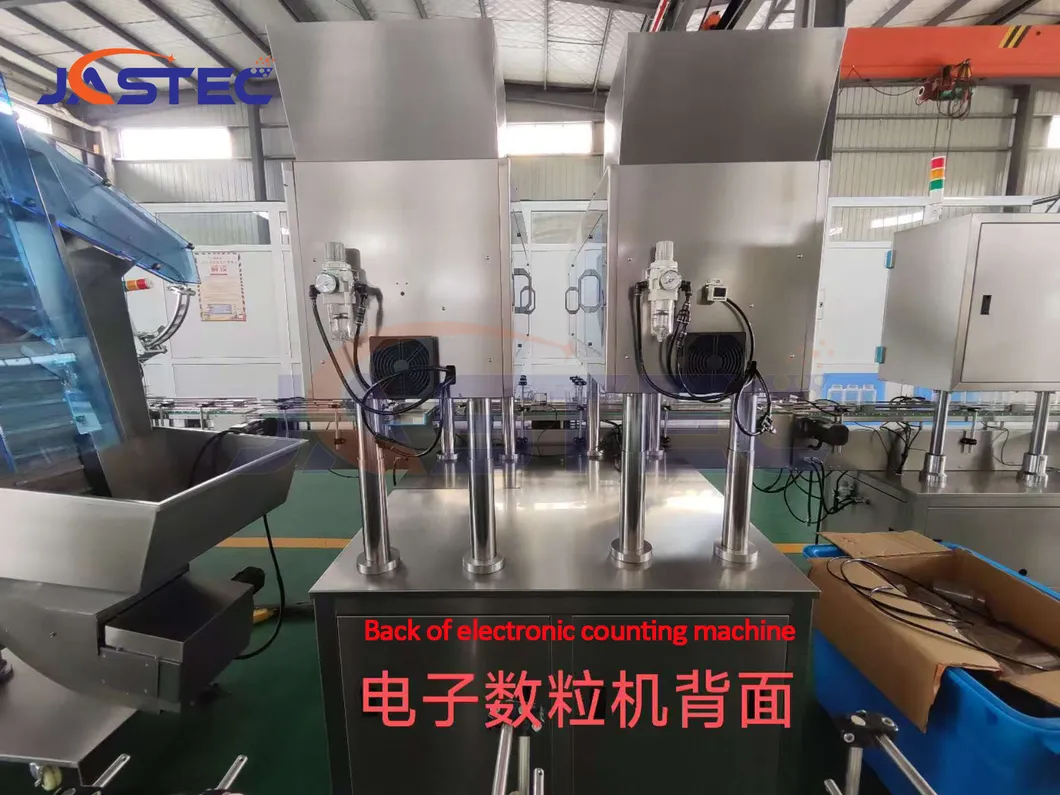

Drugs in the silo are transported through a three-level vibration feeding system, counted via visual imaging detection, and loaded into bottles through high-speed solenoid gates. The CCD camera provides 250 imaging points per channel for 0.12mm detection accuracy.
| Item | Parameters |
|---|---|
| Production capacity | 20-60 bottles/minute |
| Counting accuracy | 99.99% |
| Applicable range | Tablets (max φ22mm), Capsules #00-#5 |
| Power consumption | 1.0KW |
| Dimensions | 1600×1800×1600 mm |

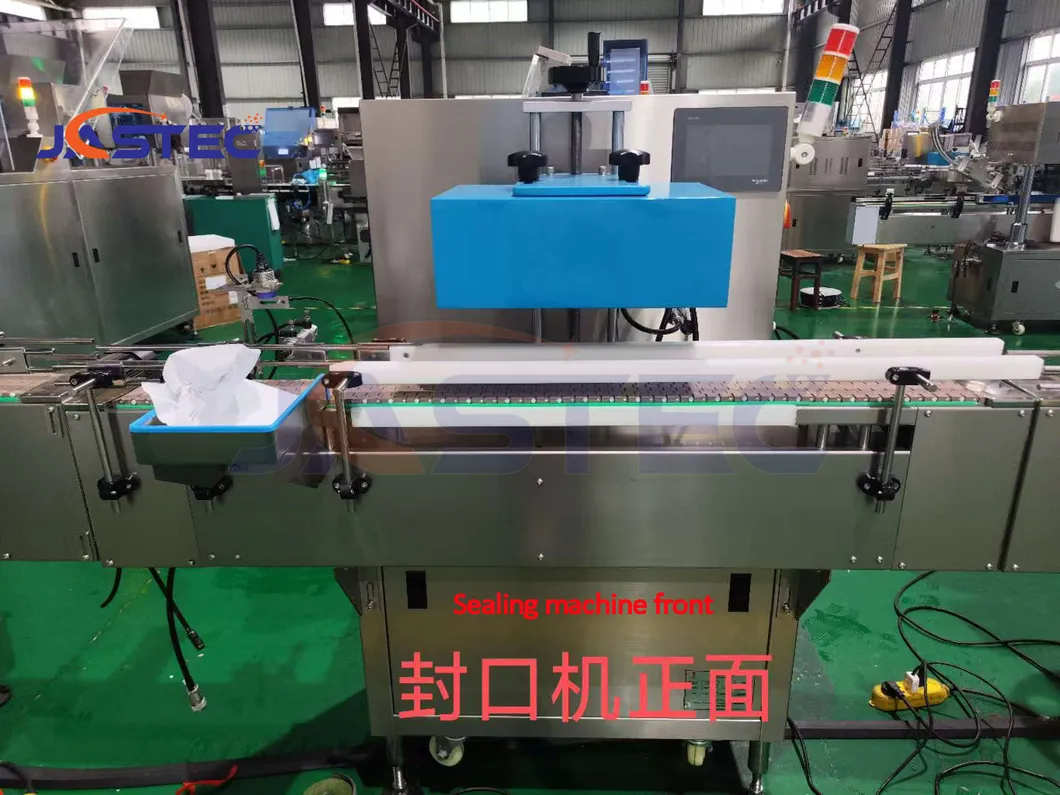

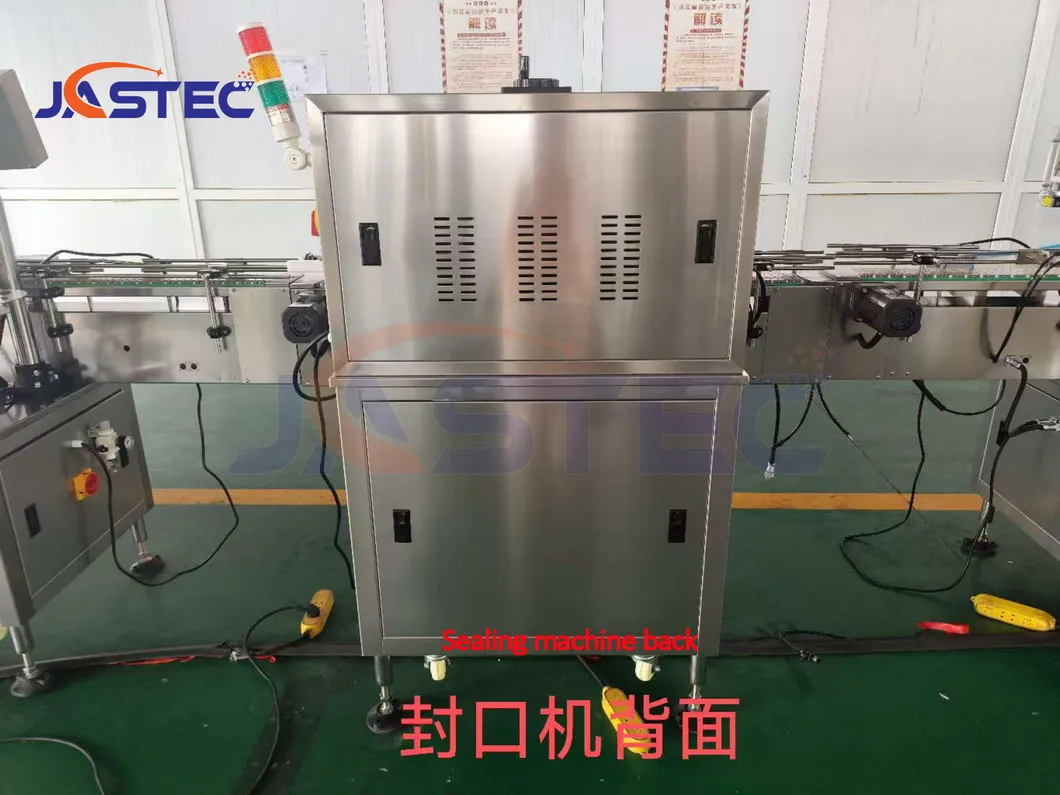

Utilizes inverter theory and tunnel-type induction for 100% sealing yield. Suitable for various round and special-shaped bottles. Constructed with 304 stainless steel to meet GMP requirements.
| Item | Parameters |
|---|---|
| Capacity | 20-260 bottles/min |
| Voltage | 220V AC, 50/60HZ |
| Net weight | 150kg |
| Name | Specification |
|---|---|
| Output | 20-160 bottles/min |

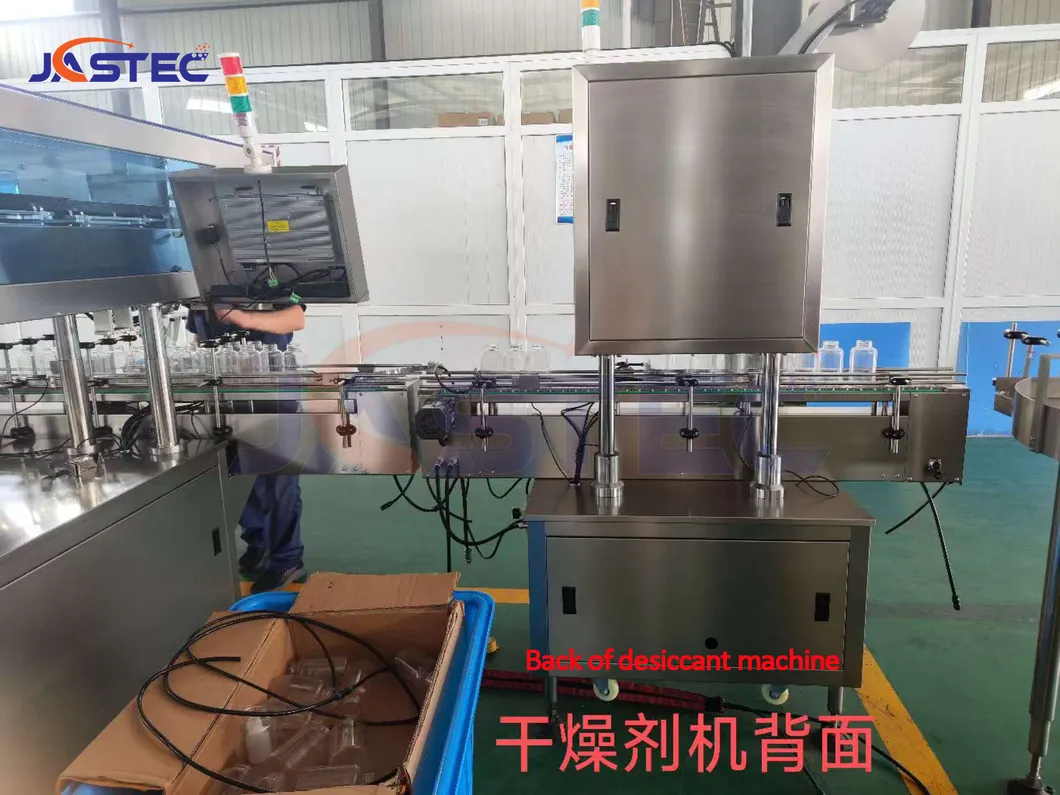

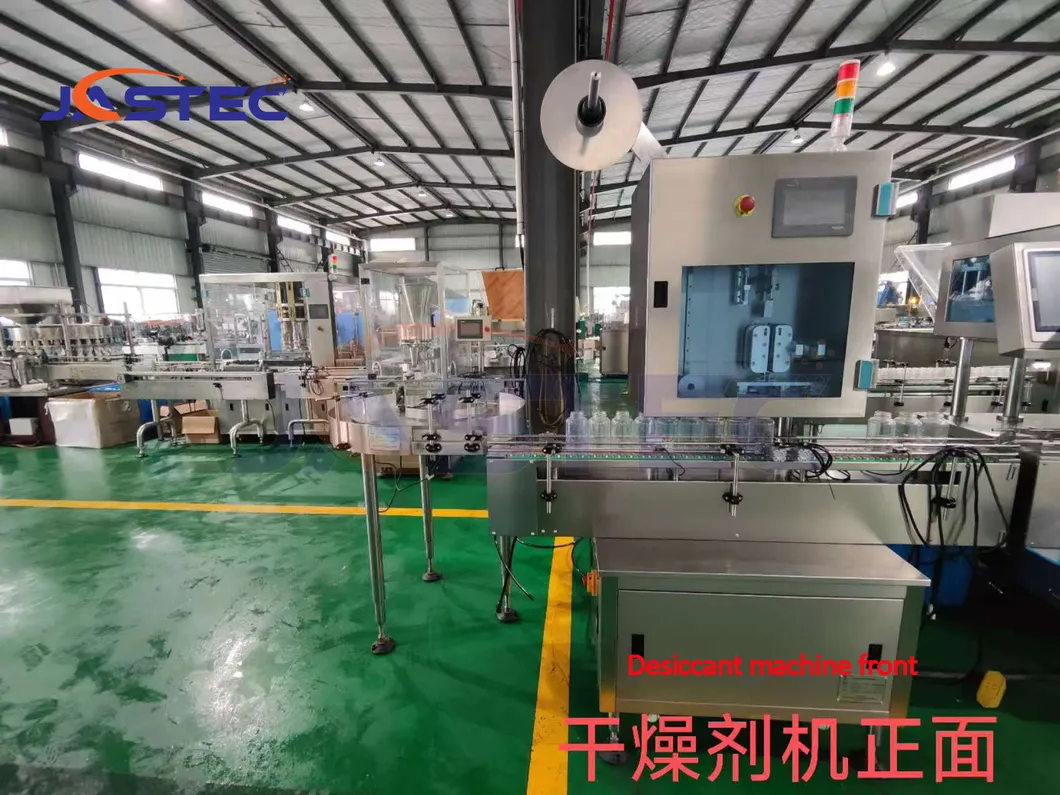

| Desiccant sachet size | 15-30mm * 40-60mm |
| Dimension | 1600×750×1800mm |

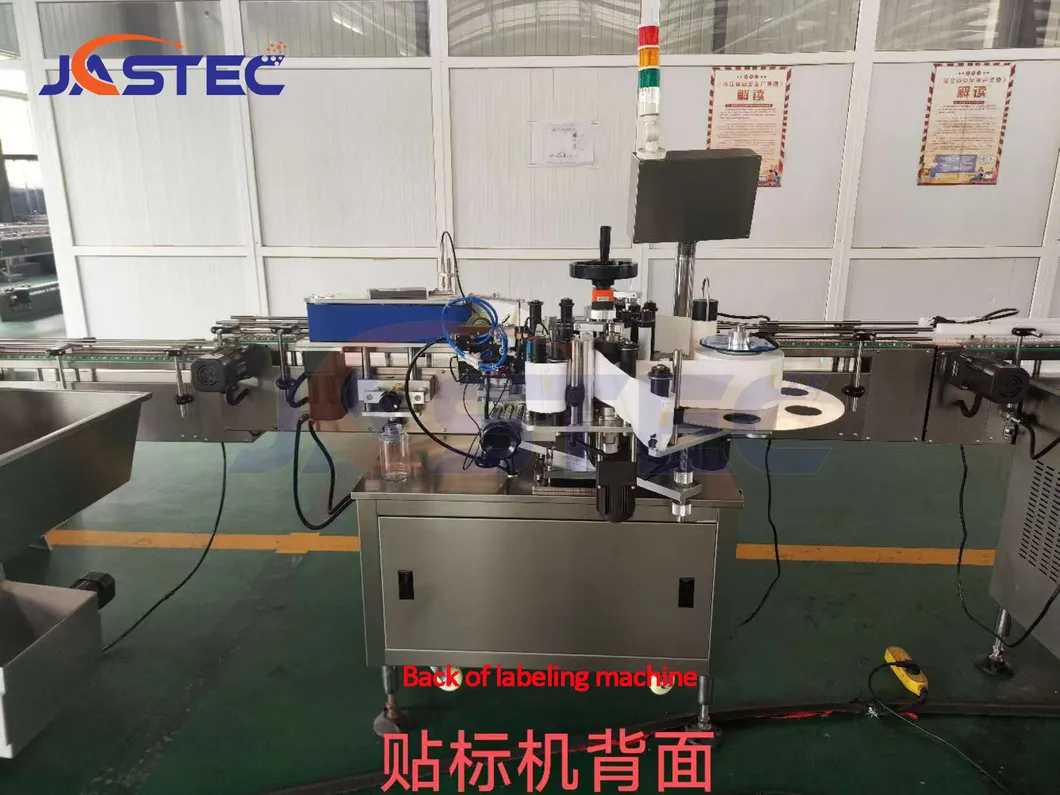

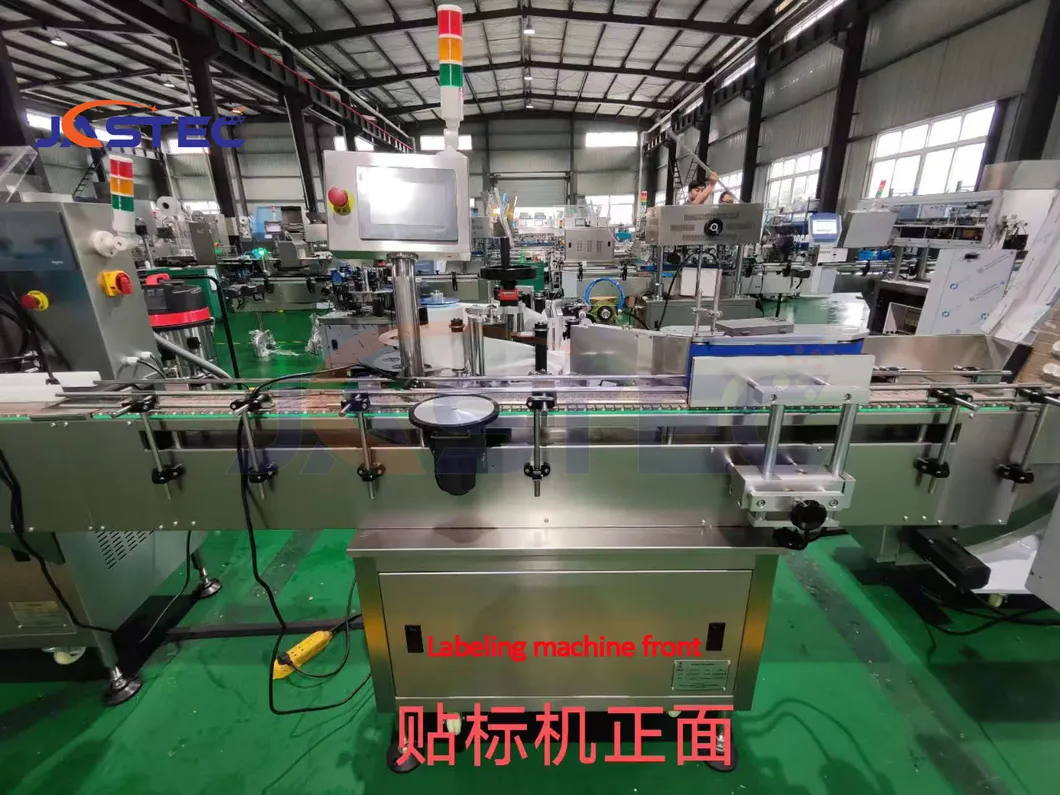

| Model | PBTB-160 |
|---|---|
| Output | 20-160 Bottles/min |
| Label Size | Length 10-240mm, Width 25-100mm |
| Weight | 250KG |

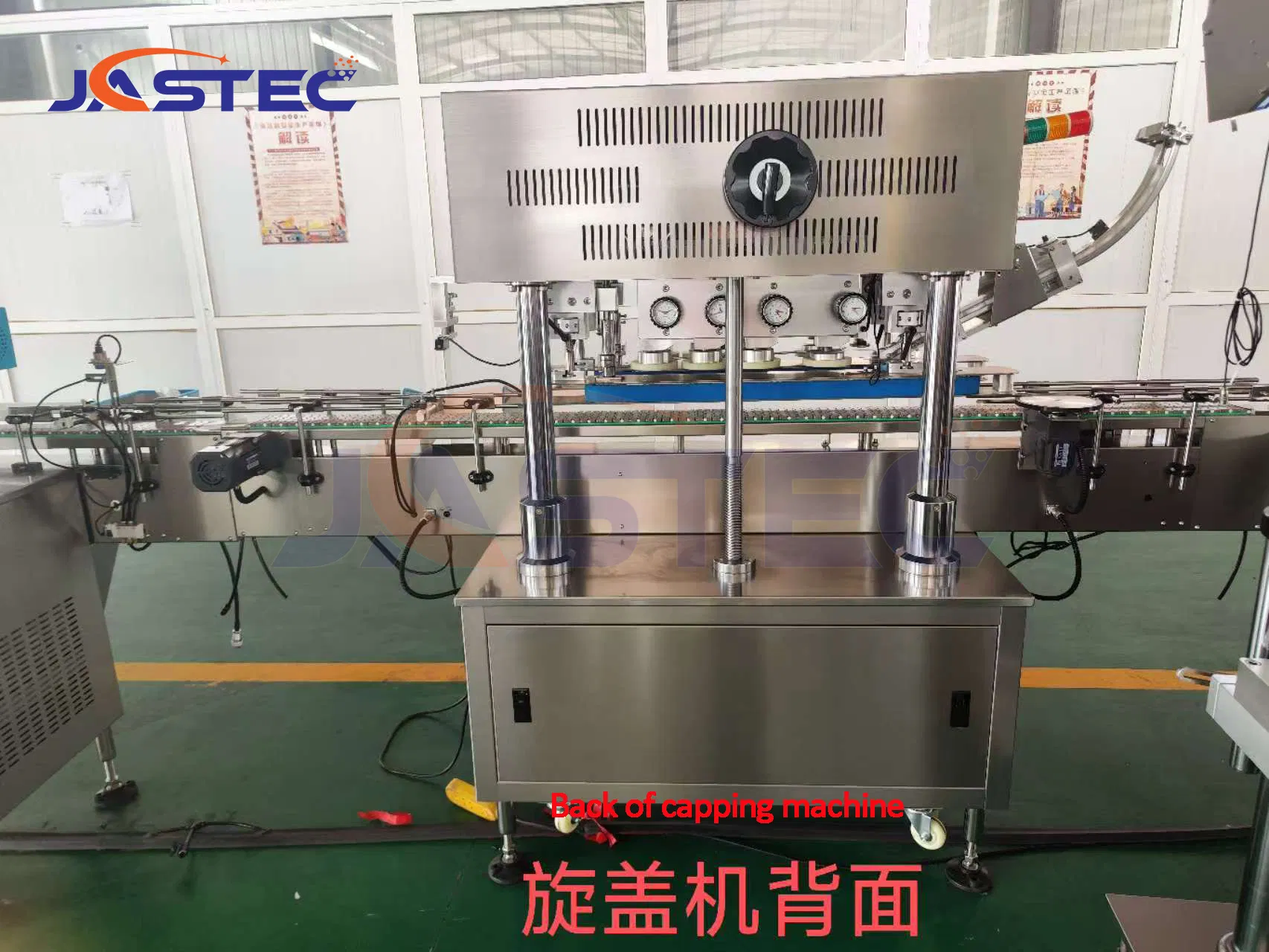

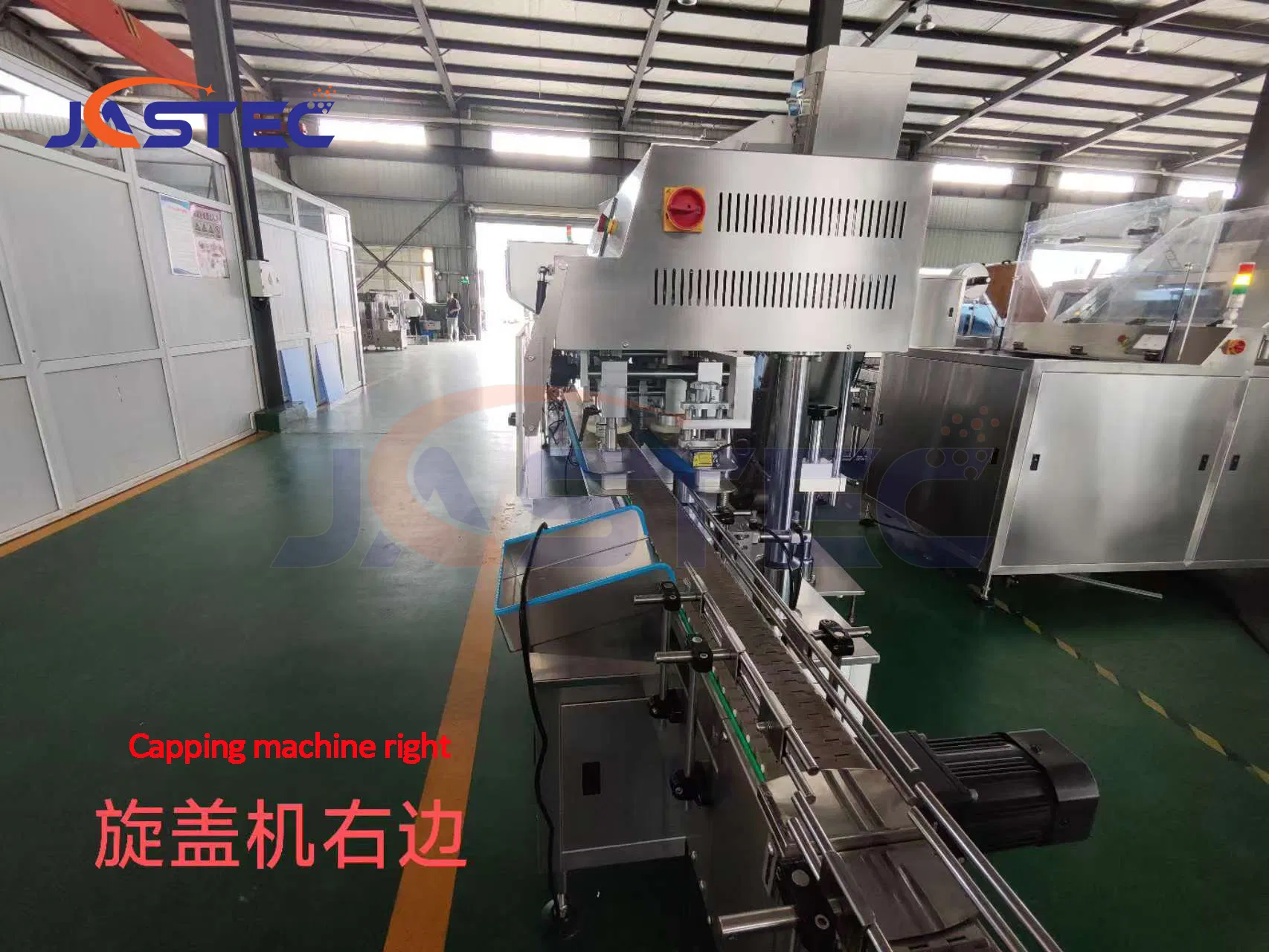

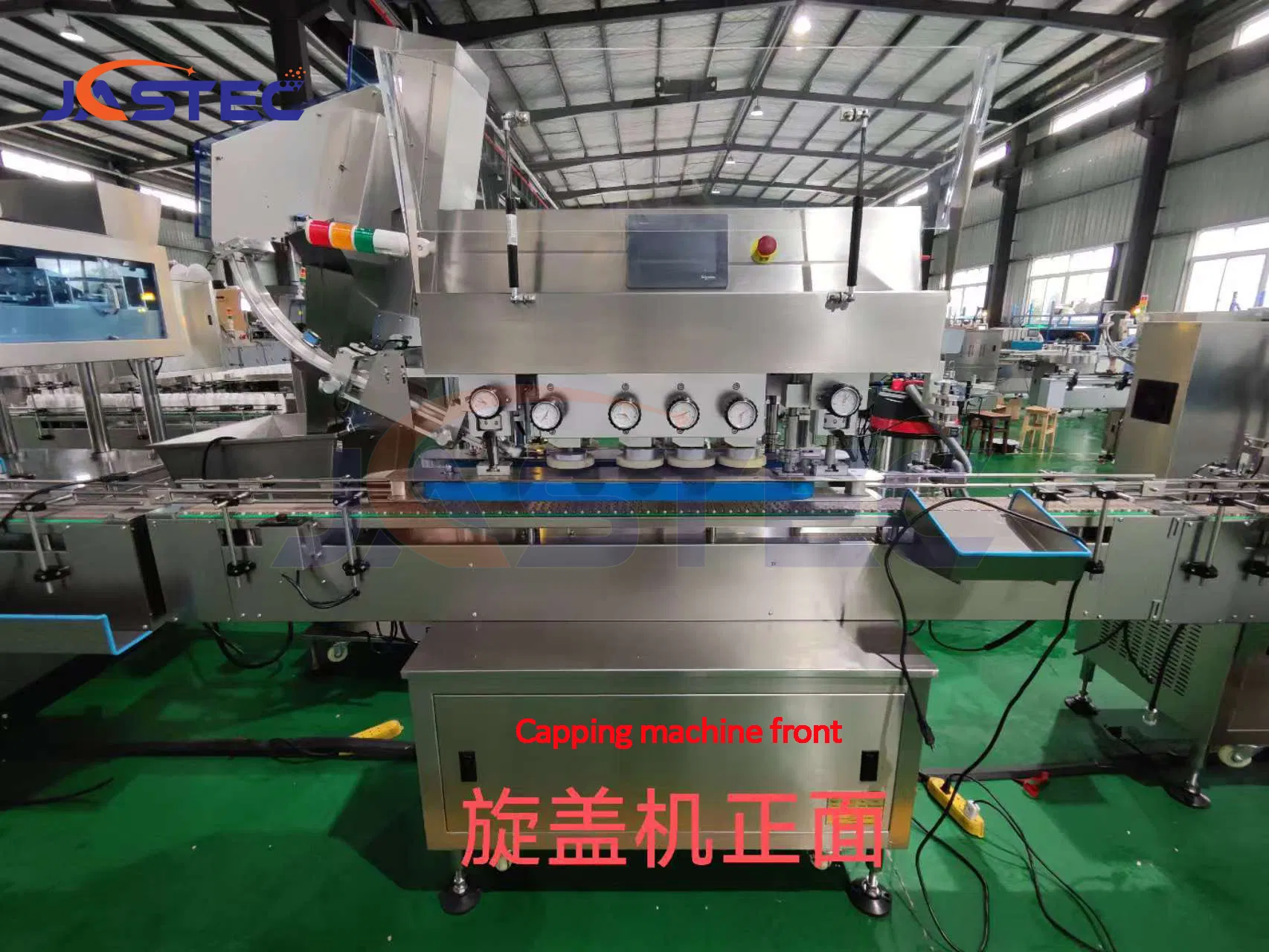

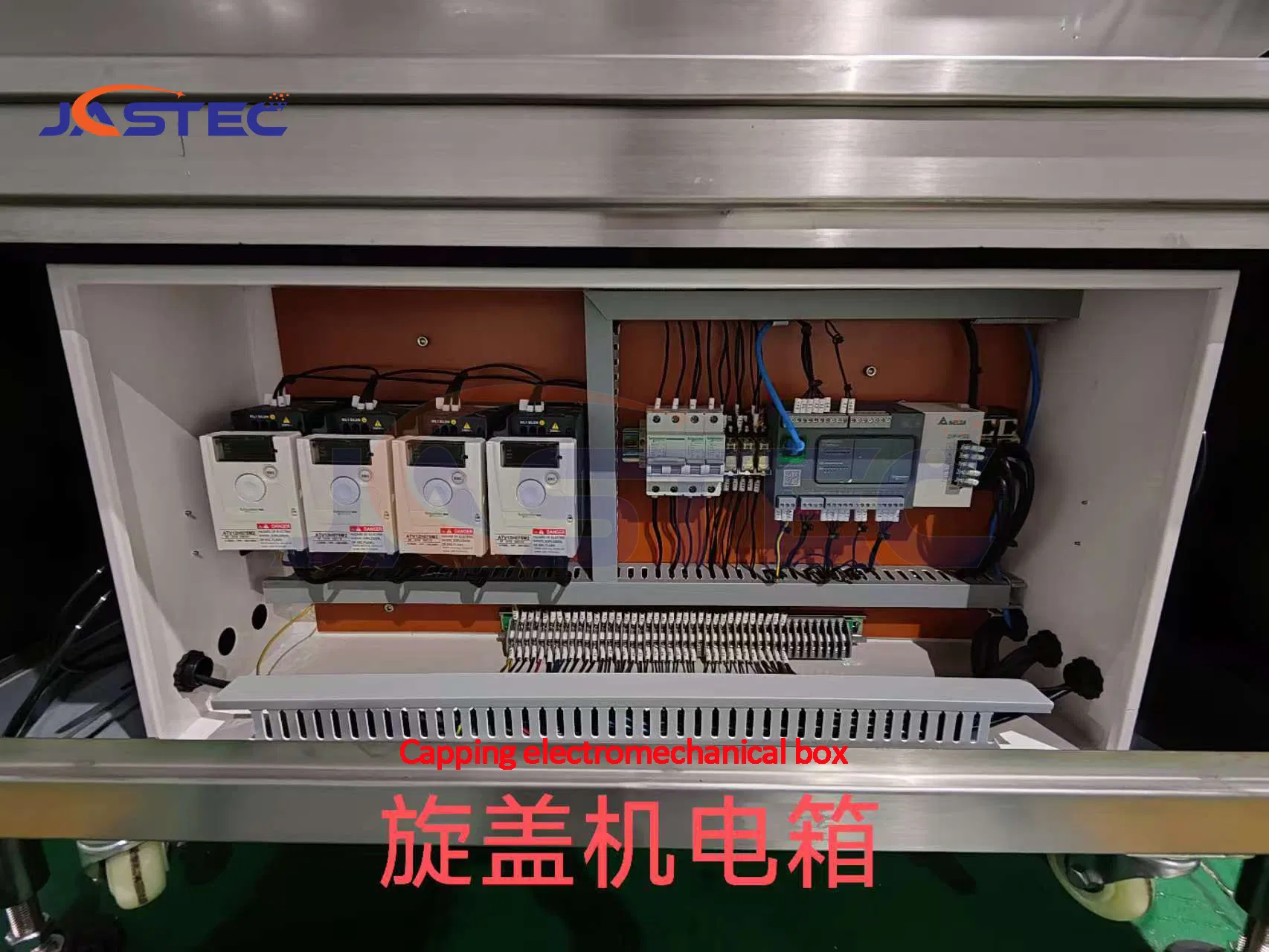

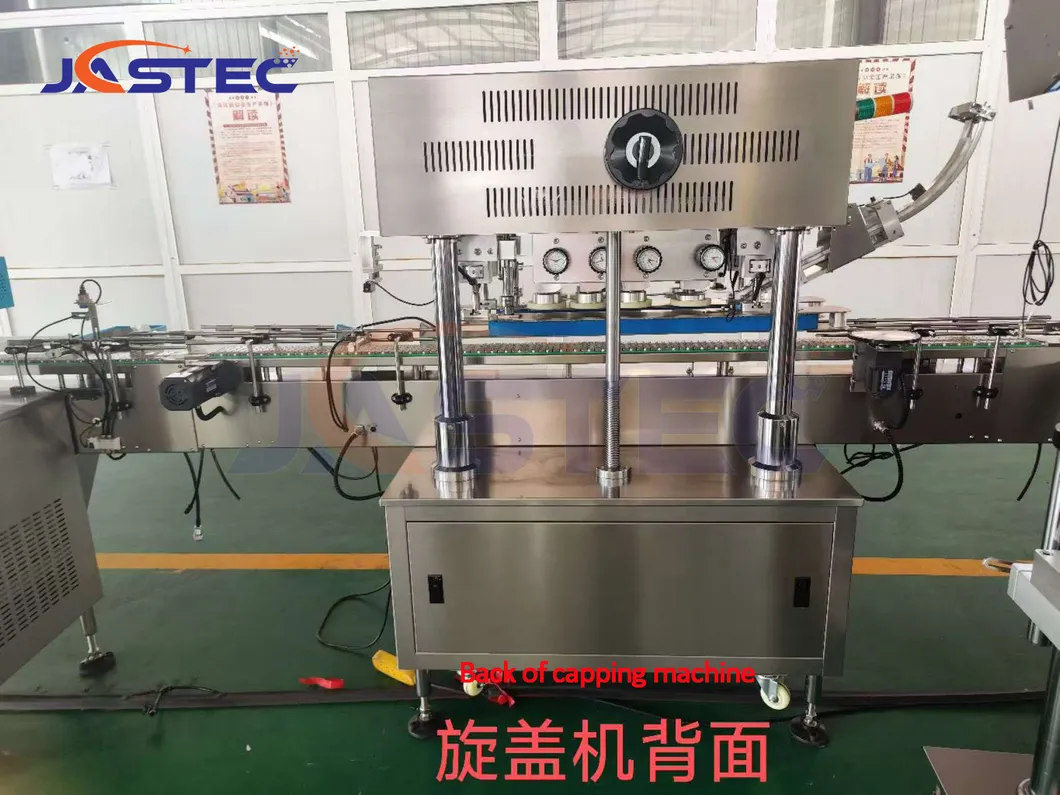

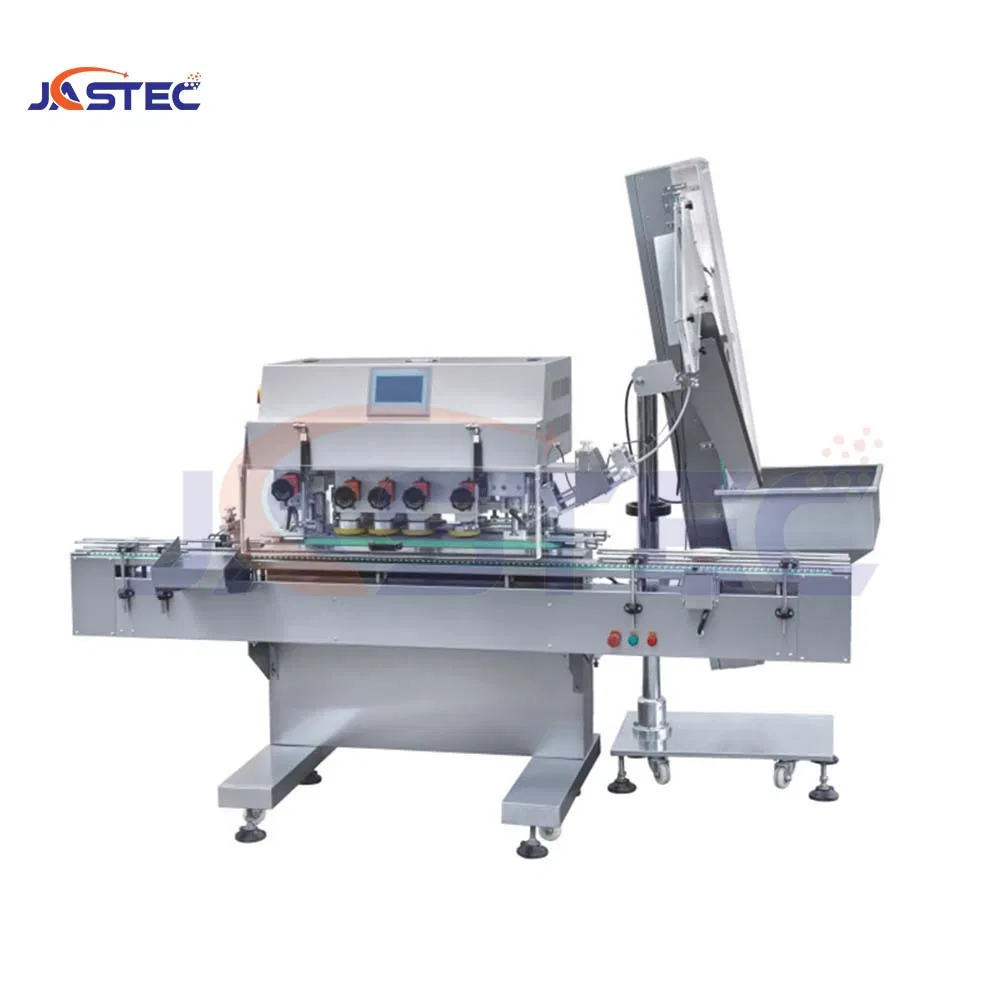

Features four sets of highly elastic rubber wheels for precise capping. Equipped with Schneider PLC and servo motors. Includes automatic rejection for untightened or tilted caps.
| Item | Parameter |
|---|---|
| Bottle cap diameter | 19-65 mm |
| Power | 2.5 KW |
| Weight | 580 kg |

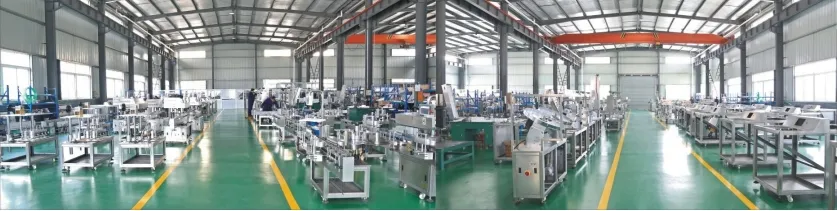

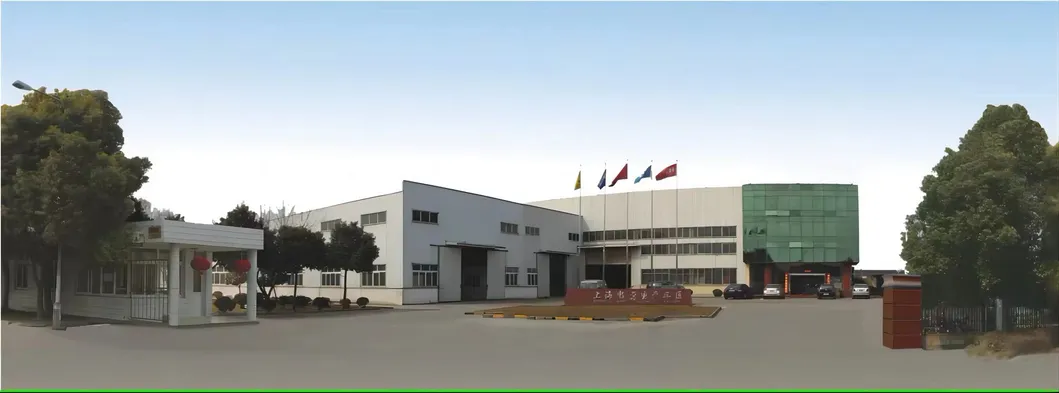

We are a professional supplier of food deep processing machinery, integrating development, sales, and after-sale services. Our equipment conforms to CE and SGS standards, serving over 160 countries across Asia, Africa, Europe, and America. We focus on high-quality, low-energy, and efficient equipment solutions.
Export wooden pallets are used to ensure the safety of your goods. We provide professional, environmentally friendly, and efficient packaging services for global transit.
