Product Description

Basic Information
Model NO.
RK320-01
Type
Laser Ceilometer
Max Diameter
>3200mm
Mass Scope
<900kg
Accuracy Grade
1
Range
30-10000m
Resolution
5m
Supply
198VAC~242VAC
Cloud Layers
Up to 3 Layers
Customized Support
OEM, ODM
Product Description

RK320-01 Laser Ceilometer measures cloud base height, cloud layer thickness, cloud amount, and outputs vertical visibility in blurred skies. Perfect for airports, ships, transport departments, and weather stations. Benefits include simple structure, stable performance, high reliability, energy efficiency, and easy maintenance.

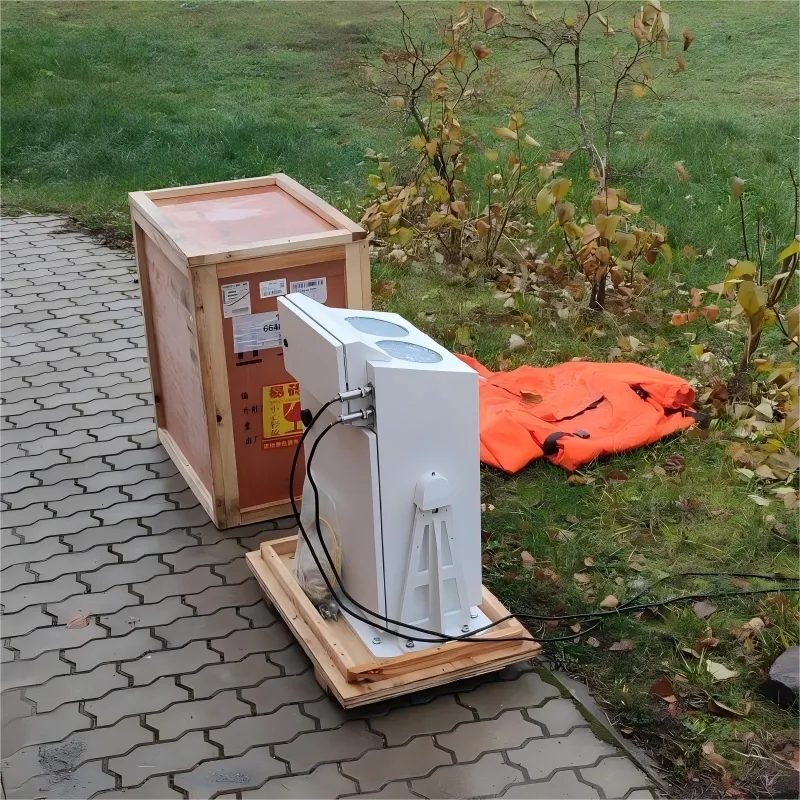

Laser Ceilometer Main Unit

CORE FEATURES

  • Automatic cloud base height collection
  • Measures up to three cloud layers
  • Inclination and hard object distance measurement
  • Self-check and automatic protection functions
  • Historical data storage

APPLICATIONS

  • Airports and Aviation
  • Ocean Maritime & Shipping
  • Transportation Departments
  • Environmental Protection
  • Mobile Meteorological Stations

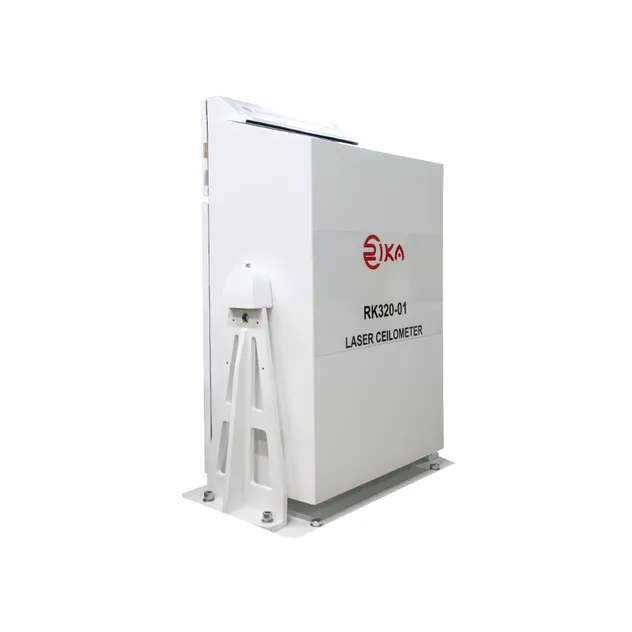

Cloud Measurement Device

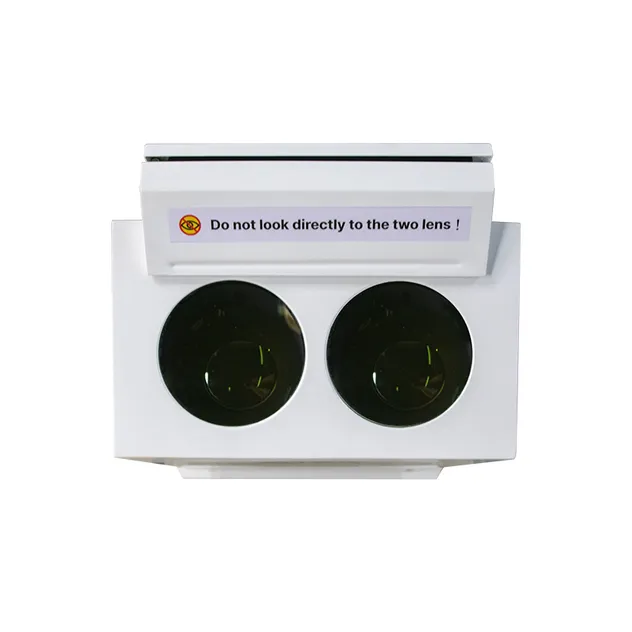

Atmospheric Profiler

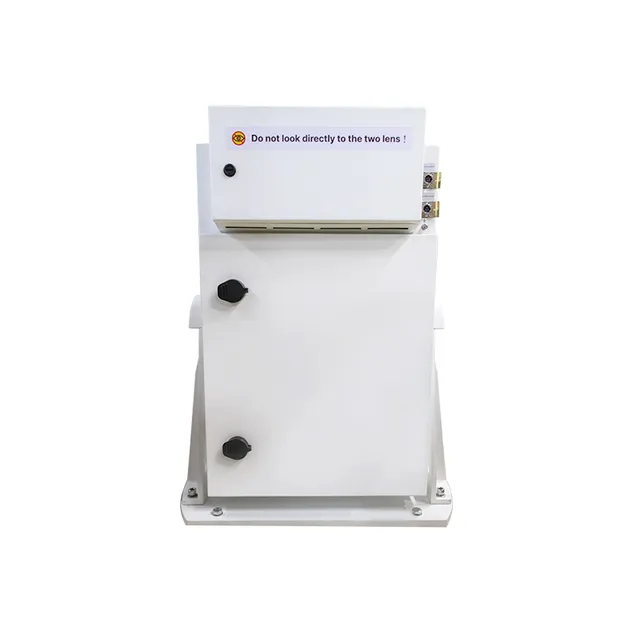

Meteorological Equipment
Technical Specifications
Parameter Technical Specification
Range30-10000m
Measurable Cloud LayersUp to 3 layers
Measurement Error (Hard Objects)±15m
Accuracy (Cloud Height <1km)±200m
Accuracy (Cloud Height ≥1km)±20%
Resolution5m
Sampling Period30 to 300 seconds (adjustable)
Power ConsumptionNo heating ≤100W; Heating ≤700W
Communication InterfaceRS232 / RS485
Operating Environment-40℃ to 50℃; 95%RH
MTBF / MTTRMTBF≥500h; MTTR≤0.5h
Installation & Setup

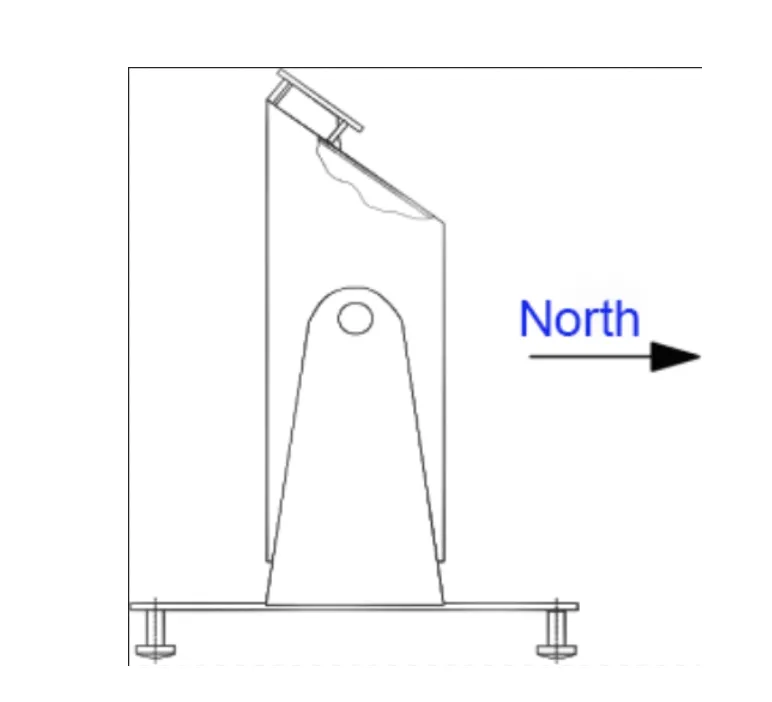

Installation Diagram

Step-by-Step Process:

  1. Wiring: Plan power, grounding, and communication lines correctly.
  2. Foundation: Prepare a stable foundation for secure mounting.
  3. Connection: Connect power and grounding lines to respective ports; link communication lines to the computer serial port.
  4. Positioning: Ensure the ceilometer is horizontal for hard objects and vertical for cloud measurement. Avoid direct sunlight on the lens.
Frequently Asked Questions
What is the maximum measurement range of the laser ceilometer?
The RK320-01 has a measurement range of 30m to 10,000m.
How many cloud layers can it detect simultaneously?
It can measure and report up to 3 layers of clouds at the same time.
Is the sampling period adjustable?
Yes, the sampling period can be set continuously from 30 seconds to 300 seconds.
What are the power requirements for the device?
It operates on a supply of 198VAC to 242VAC. Power consumption is ≤100W when not heating and ≤700W when heating.
Does the device support different communication protocols?
Yes, it supports RS232 and RS485 interfaces with a wired transmission distance of at least 300m.
What kind of environments can this ceilometer withstand?
It is designed for harsh conditions, with an operating temperature range of -40℃ to 50℃ and up to 95% relative humidity.
