Anti-Clutter C-Band Radar-Stable Trajectory Tracking for Aerial Threats

Basic Information

Model NO.

CS-RAD-A-1500C

Certification

ISO

Working System

Pulse Doppler

Weight

15kg

Transport Package

Aluminum Alloy Package

Specification

407*244*485(mm)

Trademark

OEM

Capacity

1000sets/Month

Product Description

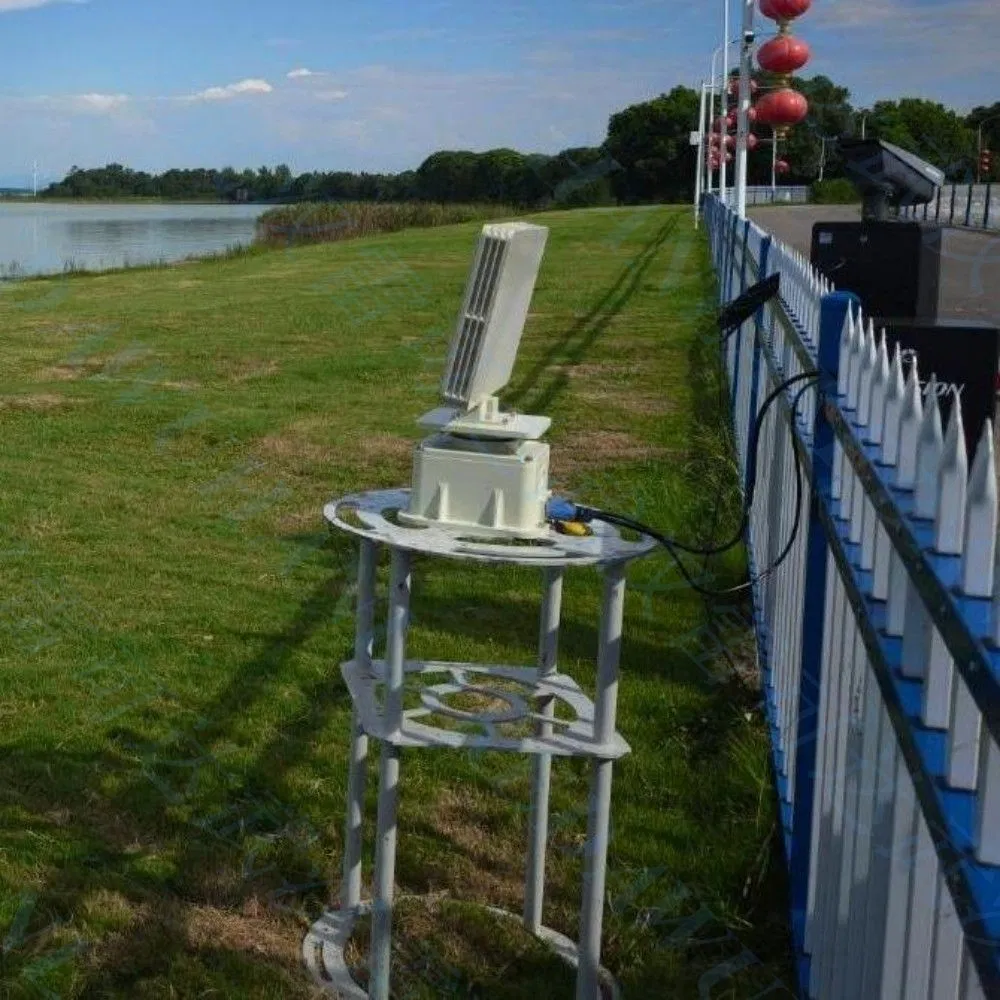

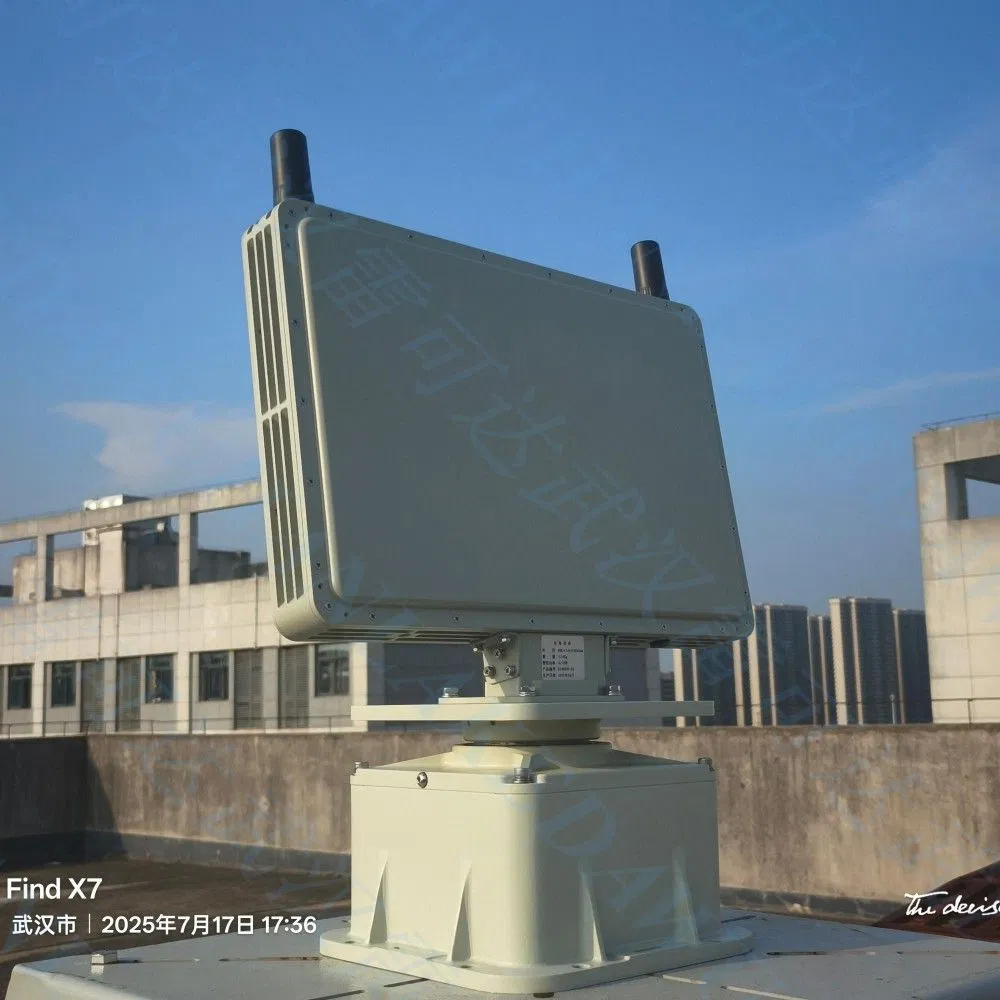

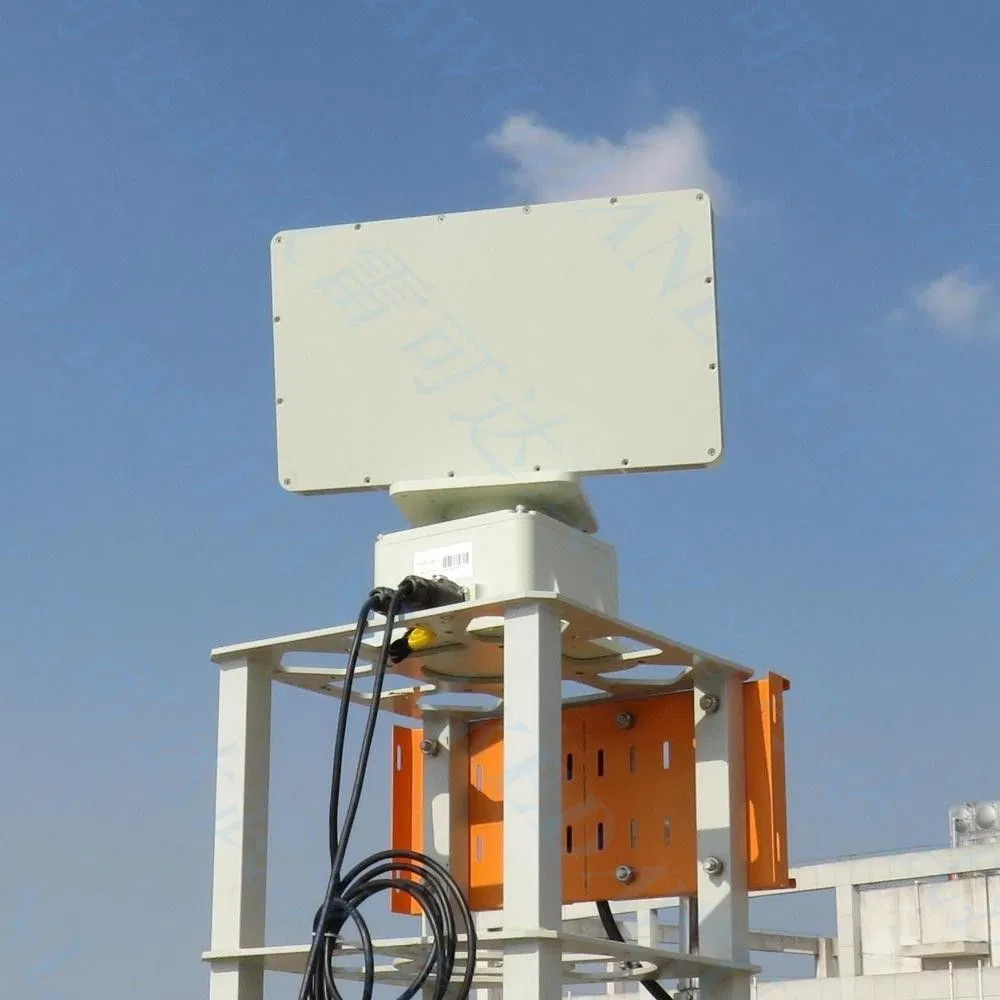

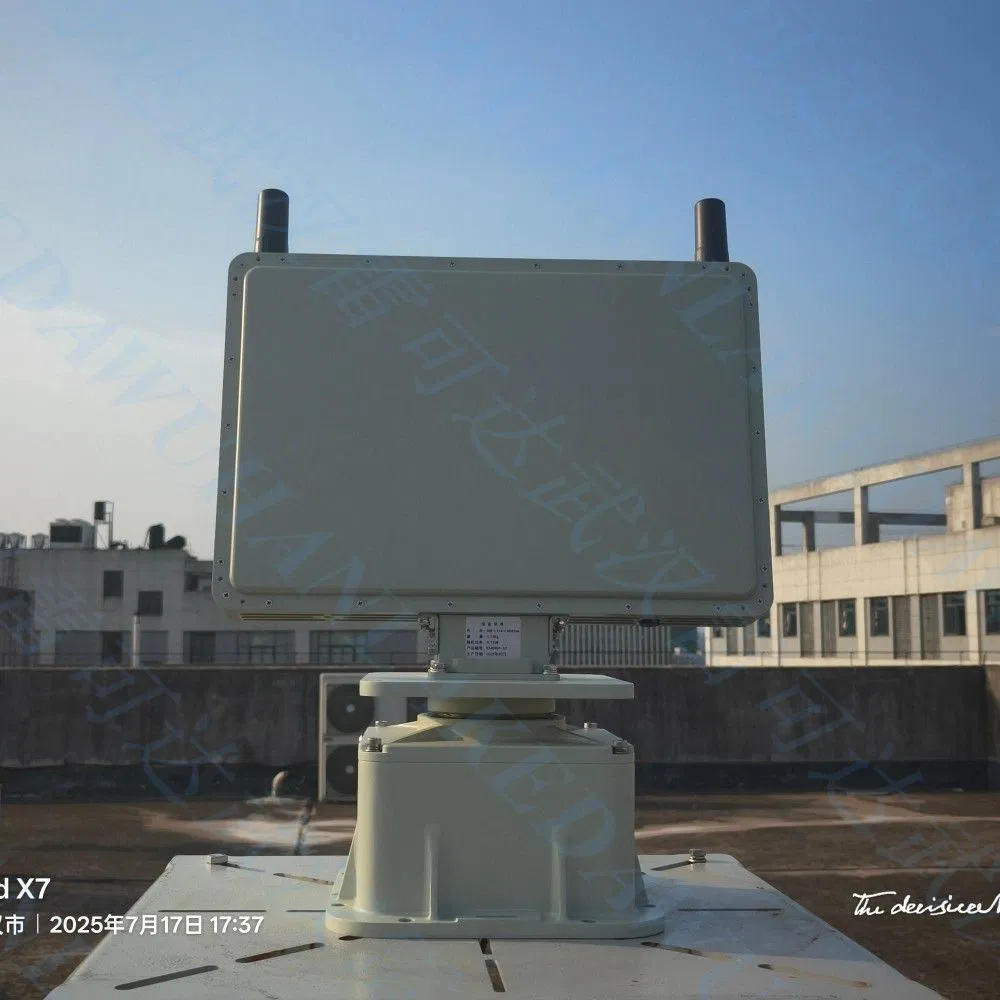

CS-RAD-A-1500C Ground Surveillance Radar

CS-RAD-A-1500C Radar is an advanced UAV detection and tracking device designed specifically for sensitive areas such as borders, perimeters, and airports. Its core competitiveness lies in technical performance, structural design, and application adaptability.

Operating Frequency: C-band with fully digital active phased array technology.
Design: Modular and refined; utilizes adaptive moving target detection, digital T/R, and DBF (Digital Beamforming).
Environmental Tolerance: 24/7 operation in rain, snow, haze, and dust (IP65 standard).
Real-time Sensing: High sensitivity for real-time target detection and rapid trajectory tracking.

Technical Specifications

Parameter Category	Specific Parameters
Operating System	Phased Array System
Operating Mode	Pulse Doppler
Operating Frequency	C-band
Transmit Peak Power	4W
Coverage Range	Azimuth: 360° \| Elevation: ≥30°
Detection Range	UAVs (RCS=0.01m²): 1.5 km
Min Operating Distance	≤100m
Detection Speed Range	0.5m/s - 30m/s
Accuracy	Speed: ≤0.30m/s \| Distance: ≤10m
Data Rate	≥0.2 frames/s
Max Targets	200
Interface	RJ45
Power Consumption	≤100W
Environmental Adaptability	IP65 \| -40℃ to +55℃

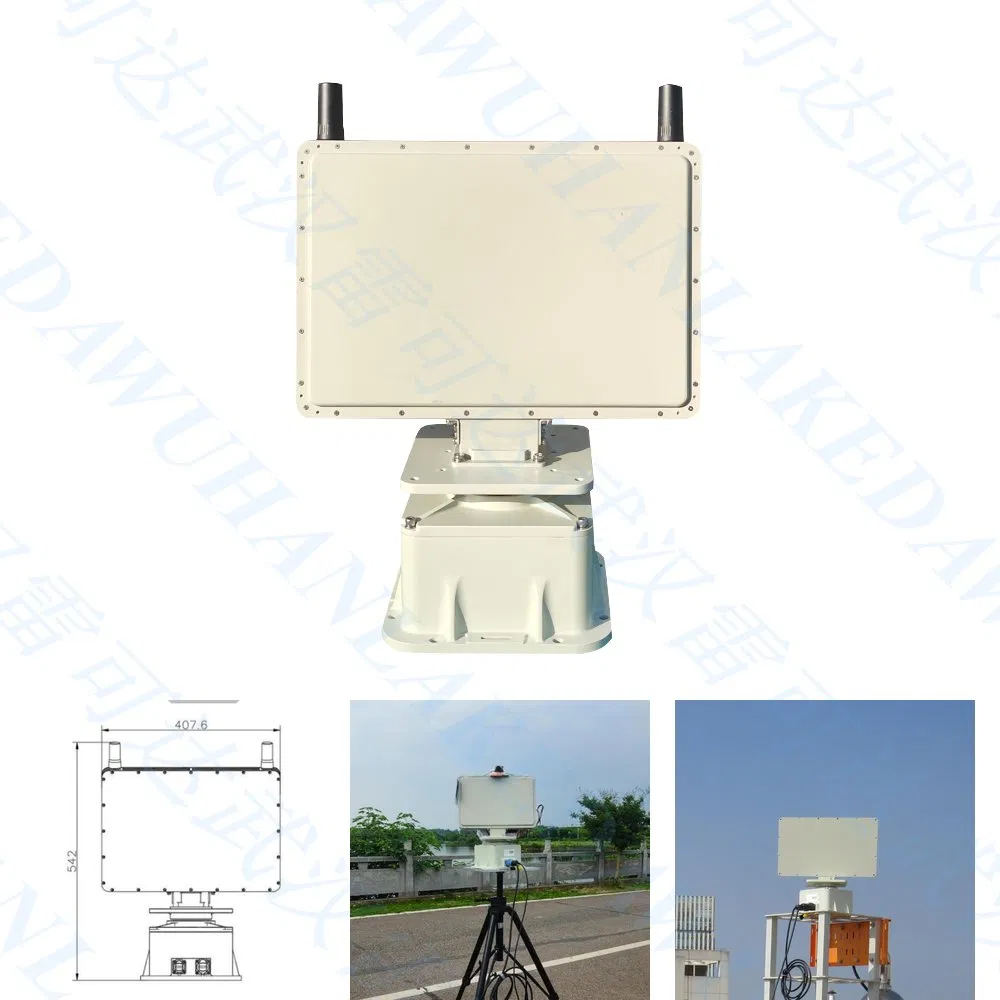

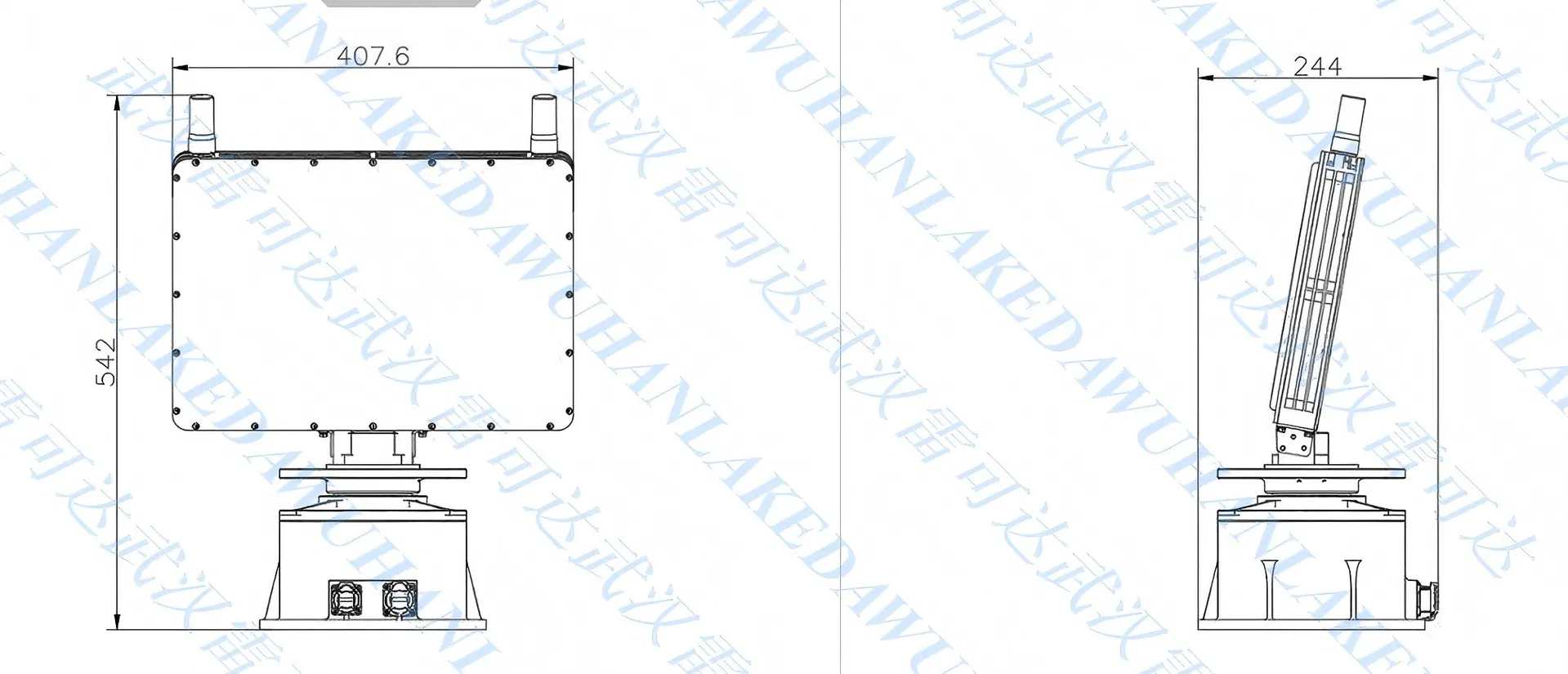

Drawings & Dimensions

Service & Support

Standard Warranty: 12 months.
Extended Warranty: Optional up to 36 months.
Global Support: 24/7 technical assistance.
Training: On-site or remote operation and maintenance training.

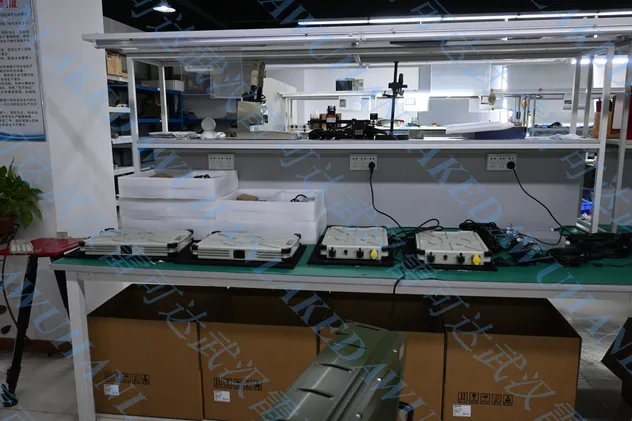

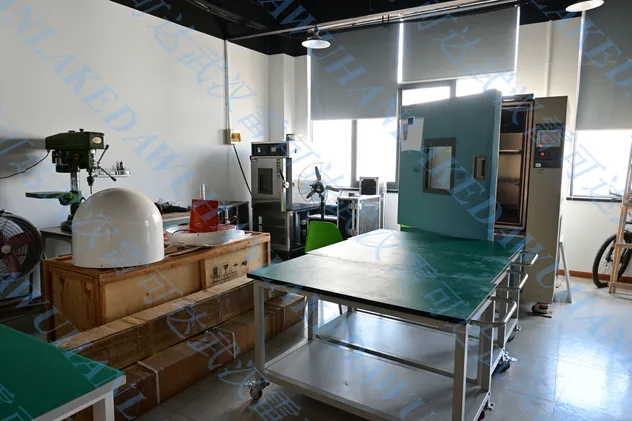

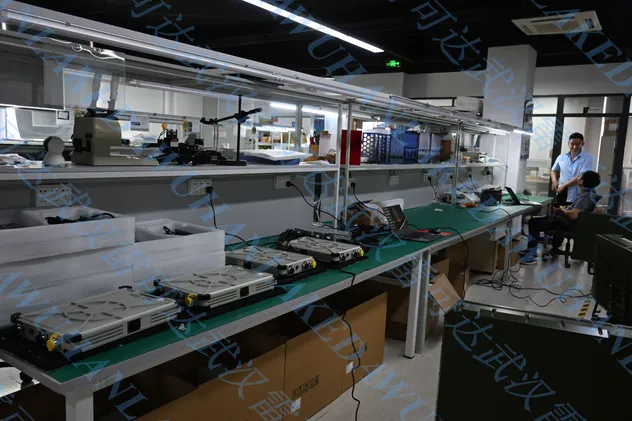

Company Profile & Capability

Founded in July 2016, our enterprise holds independent intellectual property rights focusing on R&D and manufacturing of military-civilian radar systems. We provide first-class products to support radar security across multiple fields including illegal immigration detection, bridge collision prevention, and offshore control.

Why Choose Us?

OEM/ODM capabilities, competitive pricing, bulk discounts, and turnkey project solutions.

Other Applications

Illegal Immigration Detection, Bridge Collision Prevention, Agricultural Theft Prevention, Offshore Control.

Frequently Asked Questions

Q: What is the lead time for radar orders? A: Standard models typically ship within 15–30 days. For customized units, the timeframe is usually 30–45 days.

Q: Do you provide international after-sales service? A: Yes, we provide 24/7 technical assistance and have partnered service centers in key global regions.

Q: Can the radar system be customized for specific needs? A: Absolutely. Custom configurations for detection range and specific attachments are available upon request.

Q: What documentation is provided for international shipping? A: We provide a full export package including Commercial Invoice, Packing List, Bill of Lading, and Certificate of Conformity (COC).

Q: How do we initiate an order? A: You can reach out via our official communication channels to request a quote and confirm with a Purchase Order (PO).

Q: Is training provided for operating the radar? A: Yes, we offer both on-site and remote training sessions for system operation and routine maintenance.
