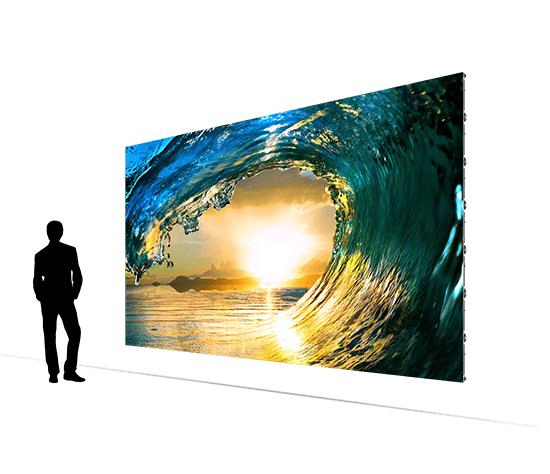

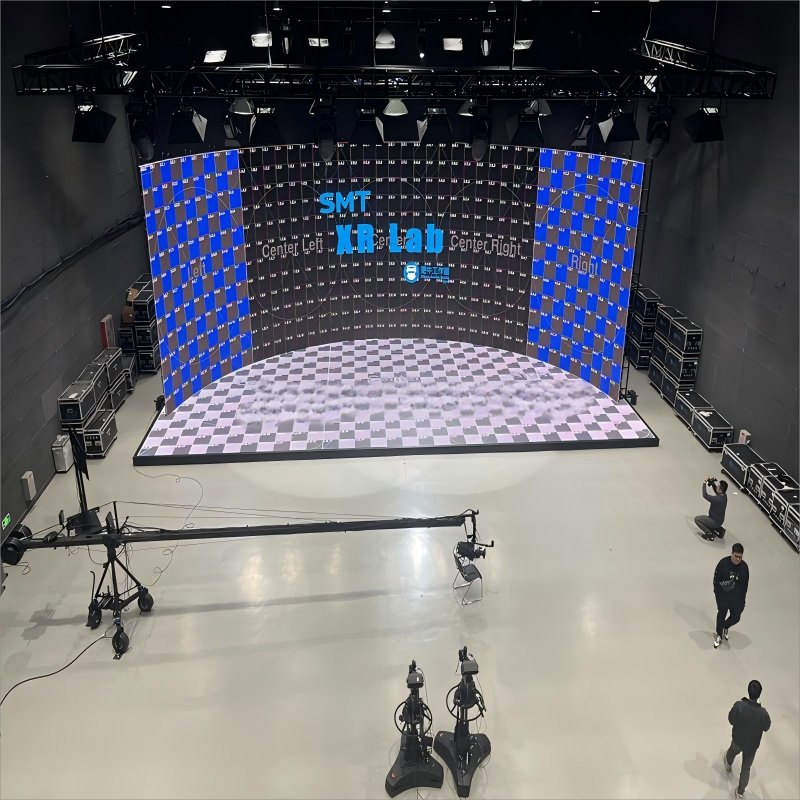

Top Selling LED Panel Video Wall Screen P1.8 P2.5 P3 P4 P5 P6 Indoor/Outdoor LED with Video Display Screen

📋 Basic Information

Model NO.

AY1.86

Pixel Pitch

1.86mm

Configuration

1R,1G,1B

Pixel Density

288906 pixels/M2

Platform

Windows10

Display Type

LED Video Display

Application

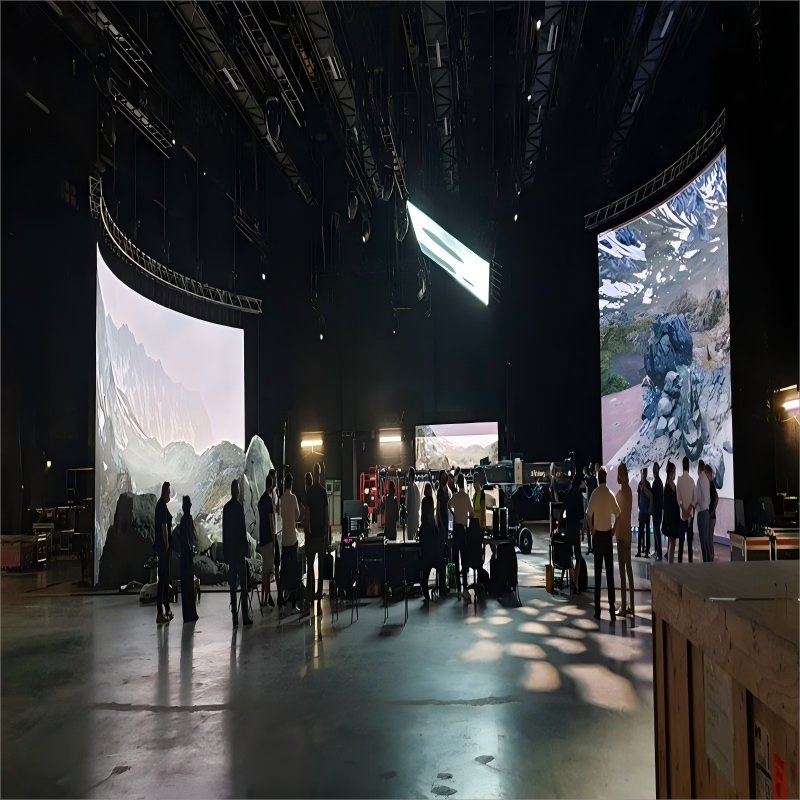

Stage, Advertising, Shopping Guide

IP Rating

IP20

Certification

CE, RoHS, CCC

LED Type

SMD

Unit Resolution

344*258 dots

Module Size

320mm(W)X160mm(H)

Unit Size

640mm*480mm

Drive Mode

43-Sweep Constant Current

HS Code

8528591090

📦 Packaging & Delivery

Package Size

71.00cm * 25.00cm * 55.00cm

Gross Weight

11.800kg

Package Type

Wooden Box

✨ Product Description

Die-cast aluminium case with high flatness and pure front maintenance
High refresh rate, high gray scale
Full black light, high contrast
No fan design, completely silent operation
Seamless splicing, fast installation
Standard module size: 320mm X 160mm

📊 Product Parameters

Category	Parameter Name	Specifications
Unit Parameters	Pixel Pitch	1.86mm
	Pixel Configuration	1R1G1B (SMD)
	Unit Resolution	344 * 258 Dots
	Unit Size (WxHxD)	640mm × 480mm
	Maintenance Type	Front Maintenance
Optical & Electrical	Brightness	≤600cd/M2
	Color Temperature	3200K-9300K (Adjustable)
	Viewing Angle	H:≥140° ; V:≥120°
	Refresh Frequency	3840Hz
	Gray Scale	16bit
Usage Conditions	Lifespan	≥50,000 Hours
	Operating Temp	-10ºC ~ +40ºC
	Connection	CAT5 Cable (≤100m); Fiber (≤15km)

* Statement: Power and specifications are subject to change without notice based on actual production.

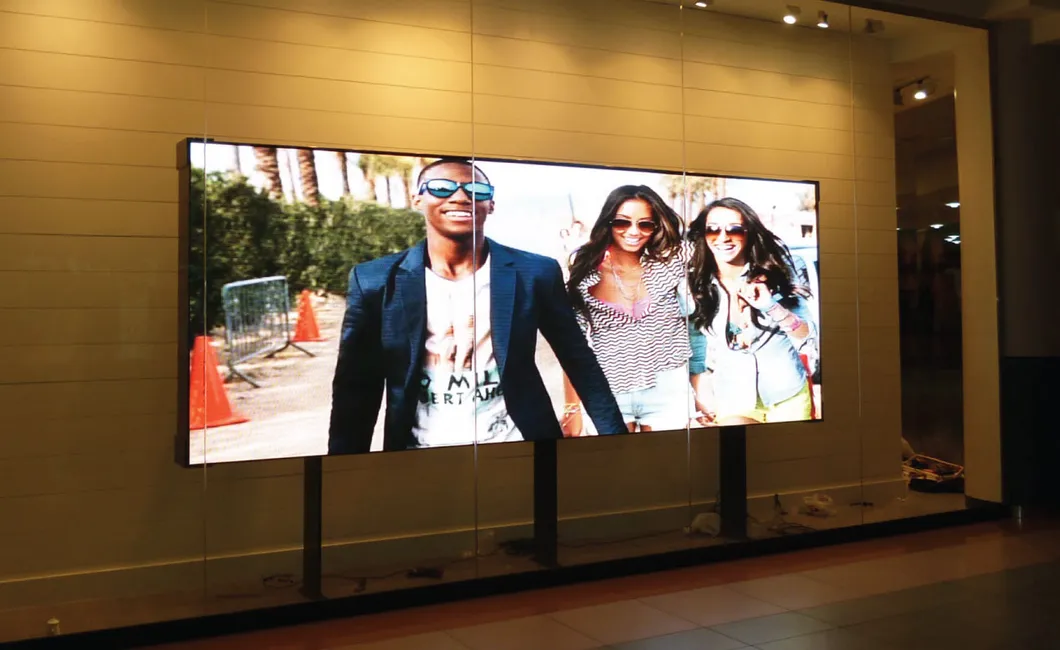

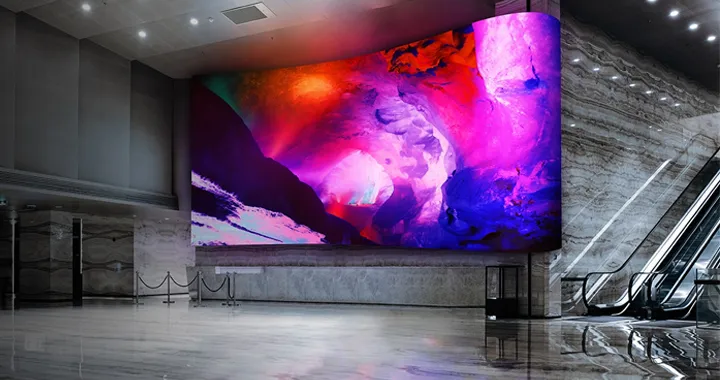

🖼️ Product Gallery

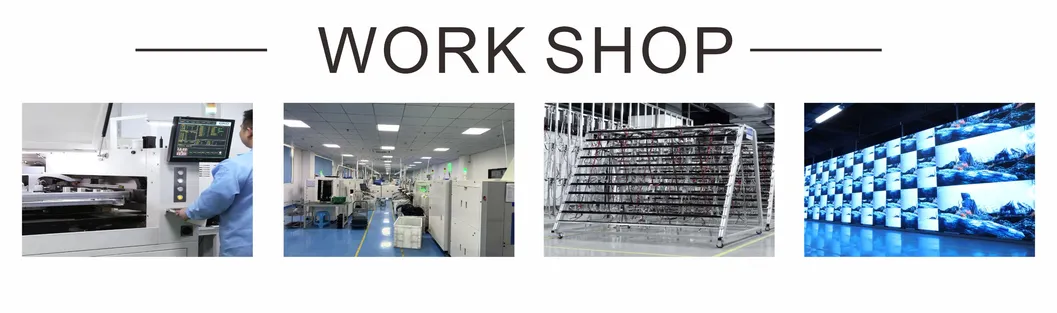

🏢 Production & Quality Control

❓ Frequently Asked Questions

How to proceed an order for LED display?

First, let us know your requirements or applications. Then, we quote accordingly. Third, the customer confirms the design document and places a deposit for the formal order. Finally, we arrange production.

How can you ensure the LED display product quality?

Before shipment, all screens undergo aging tests, waterproof tests, and shake tests to ensure transportation safety and normal functional use.

What is the typical lead time for an order?

Lead times vary depending on order size and customization requirements, typically ranging from 15 to 25 working days after receiving the deposit.

Do you provide technical support for installation?

Yes, we provide comprehensive technical support, including installation drawings, software configuration guidance, and remote troubleshooting.

Can the LED panels be serviced from the front?

Yes, this specific model (AY1.86) supports pure front maintenance, allowing for easy access and module replacement without disassembling the entire structure.

What is the warranty period for your LED products?

We generally offer a standard 2-year warranty, with options for extended warranty based on project requirements.
