5 Years Warranty Hydraulic Parking Lot Car Parking Lift for Indoor and Outdoor Use

Customization:	Available
Parking Post:	2 Cars
Level:	2 Levels

Basic Specifications

Model NO.

HP1127/1123 / TPP-2/TPP-2 Li

Capacity

2300/2700kg

Installation

Indoor / Outdoor

Lifting Height

2100mm

Material

Aluminum & Steel

Operation

Manual Key Switch

Drive Mode

Hydraulic

Finishing

Powder Coating

Certification

CE, ISO, TUV compliant

Safety Locks

Automatic Anti-Falling Lock

Introduction

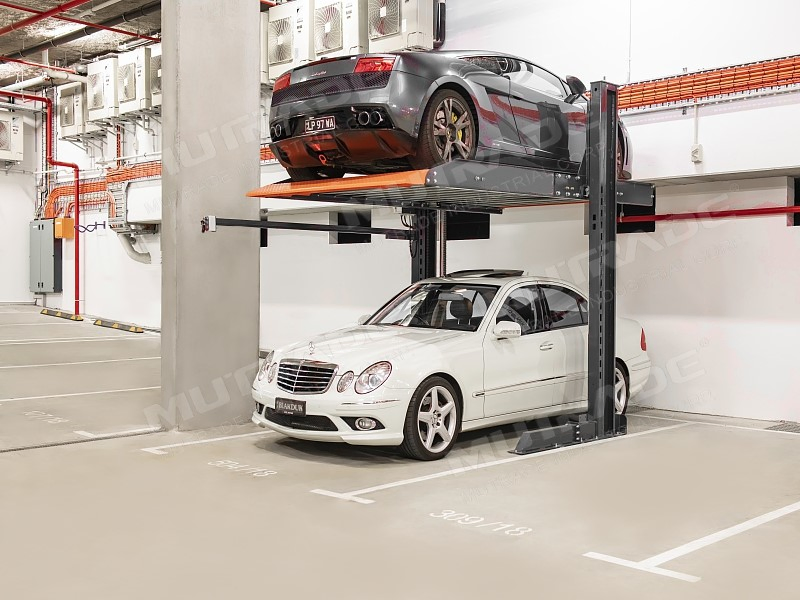

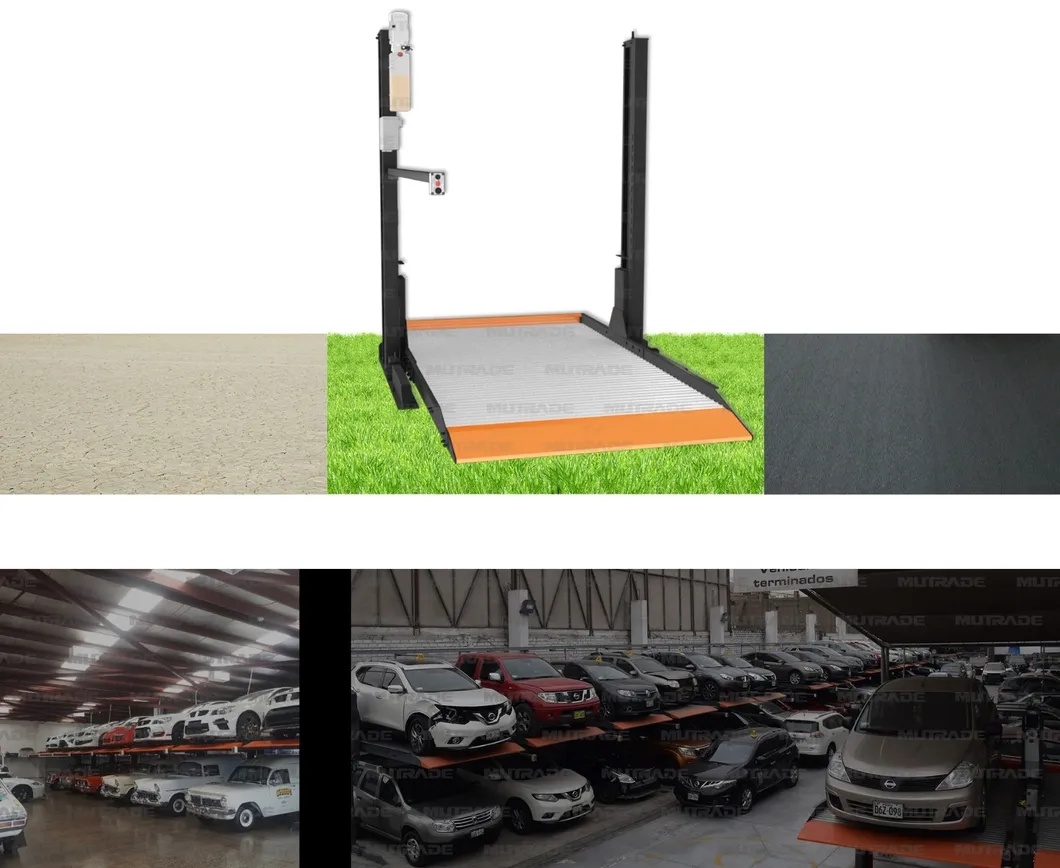

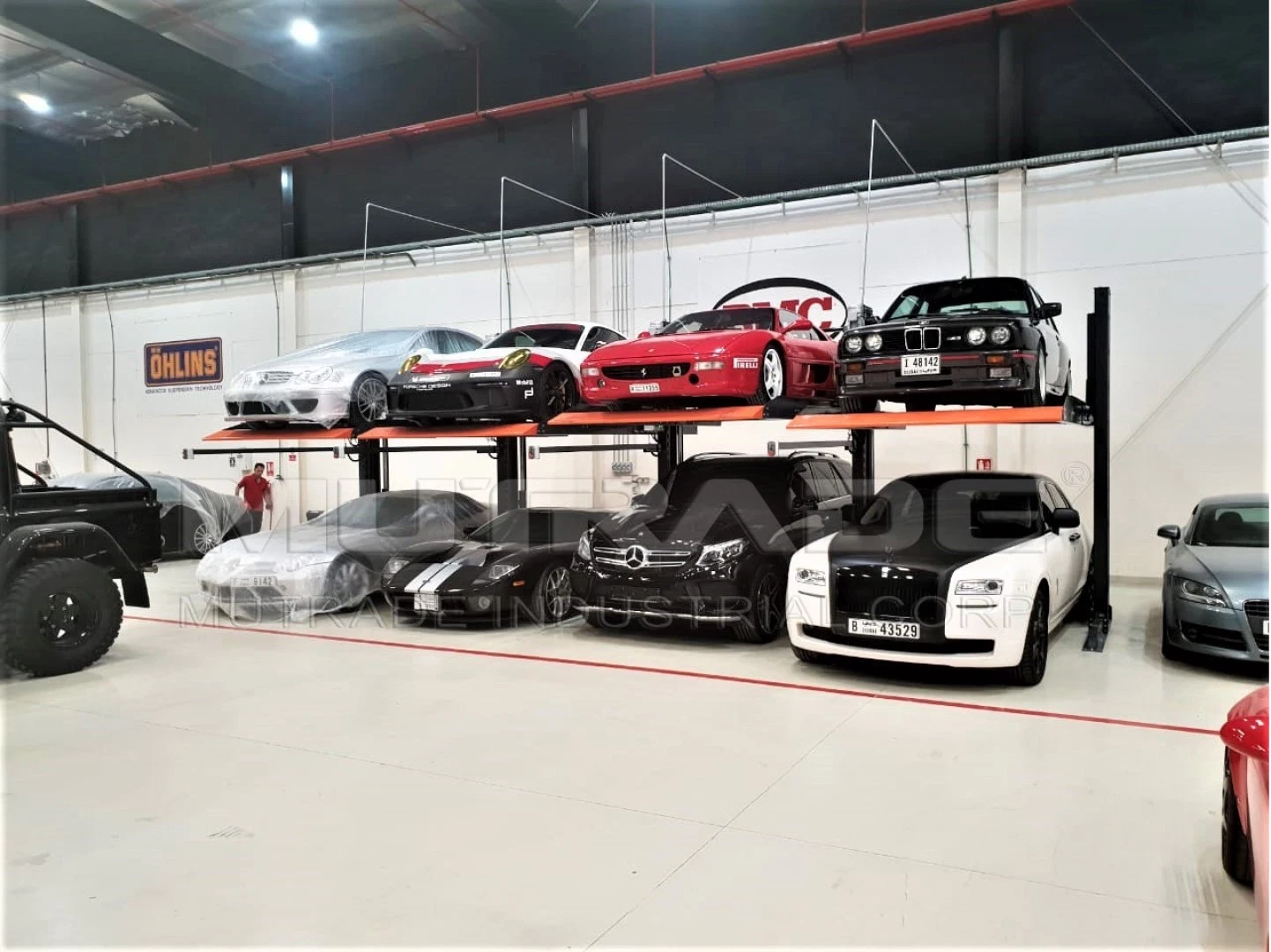

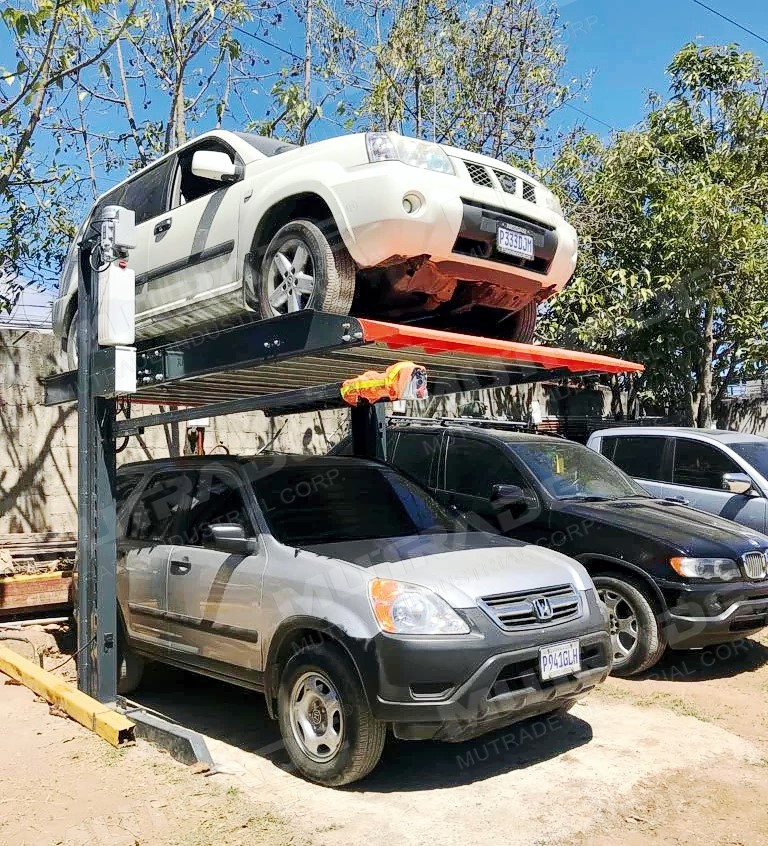

This equipment is a 2 post parking lift where the platform moves only vertically. Users must clear the ground level to lower the higher-level car. It is a dependent car parking system suitable for both commercial and residential purposes. Ideal for sedans and small SUVs, it can be used in offices, hotels, and residential buildings with valet or attendant parking.

Key Features & Advantages

1

TUV Compliant Certification Meets 2006/42/EC and EN14010 standards, the most authoritative certifications worldwide.

2

Energy Efficient The platform is driven by gravity when moving down, resulting in zero electricity consumption for the hydraulic power pack.

3

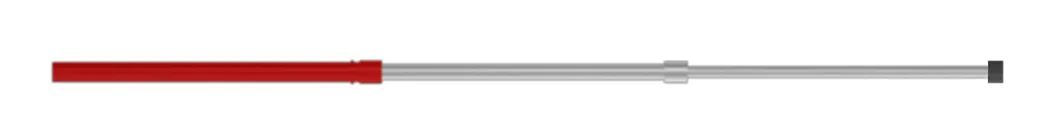

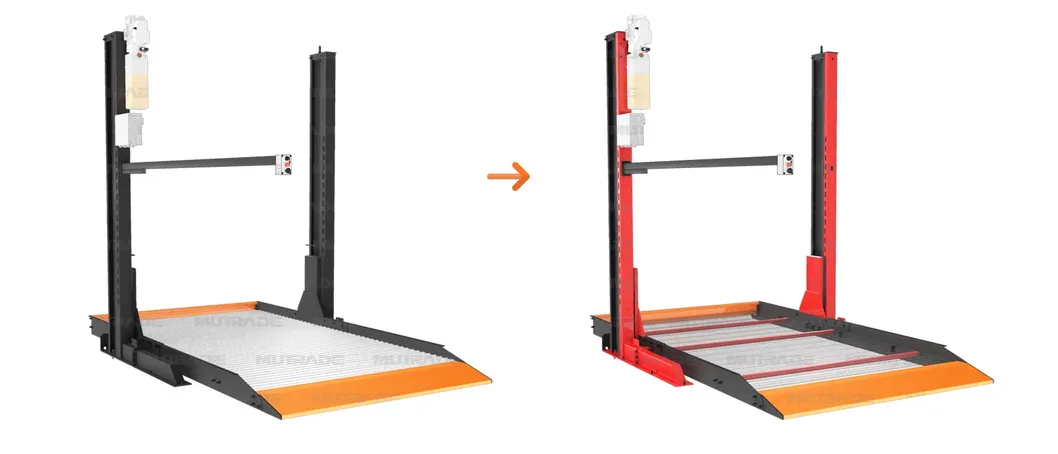

Advanced Hydraulic System Features a stable and reliable structure that doubles the lifetime compared to older models and minimizes maintenance.

4

Zero Accident Security Upgraded security system with dynamic locking devices every 100mm to prevent the platform from falling.

5

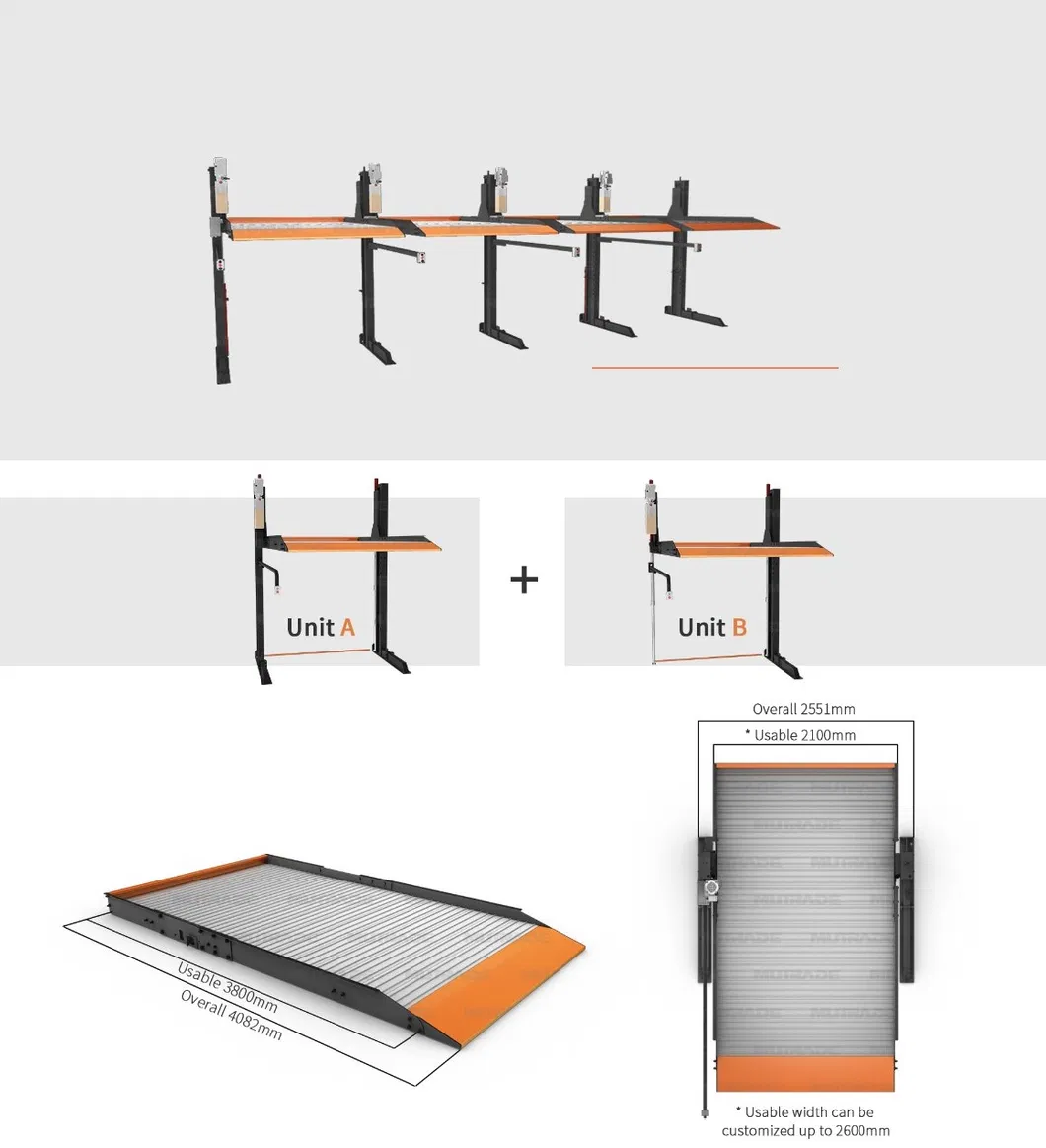

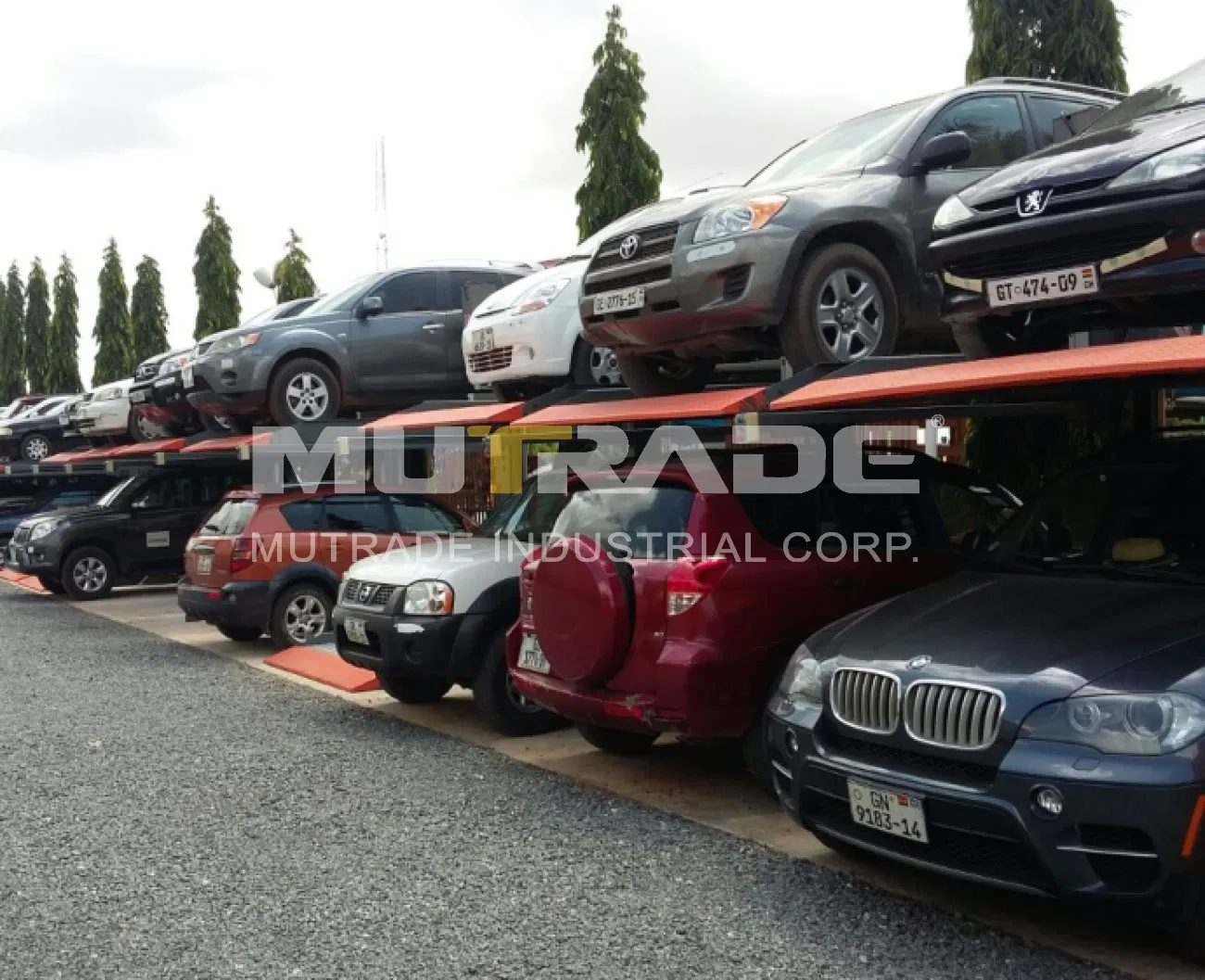

Innovative Sharing Post Design Modular connection allows multiple units to be combined, saving space and increasing usable platform width.

Technical Specifications

Rated Capacity	2300kg
Lifting Height	2100mm
Usable Platform Width	2100mm
Power Pack	2.2Kw hydraulic pump
Available Voltage	100V-480V, 1 or 3 Phase, 50/60Hz
Operation Mode	Key switch (24V operation voltage)
Safety Lock	Dynamic mechanical anti-falling lock
Lock Release	Electric auto release
Rising / Descending Time	<55s

Product Gallery

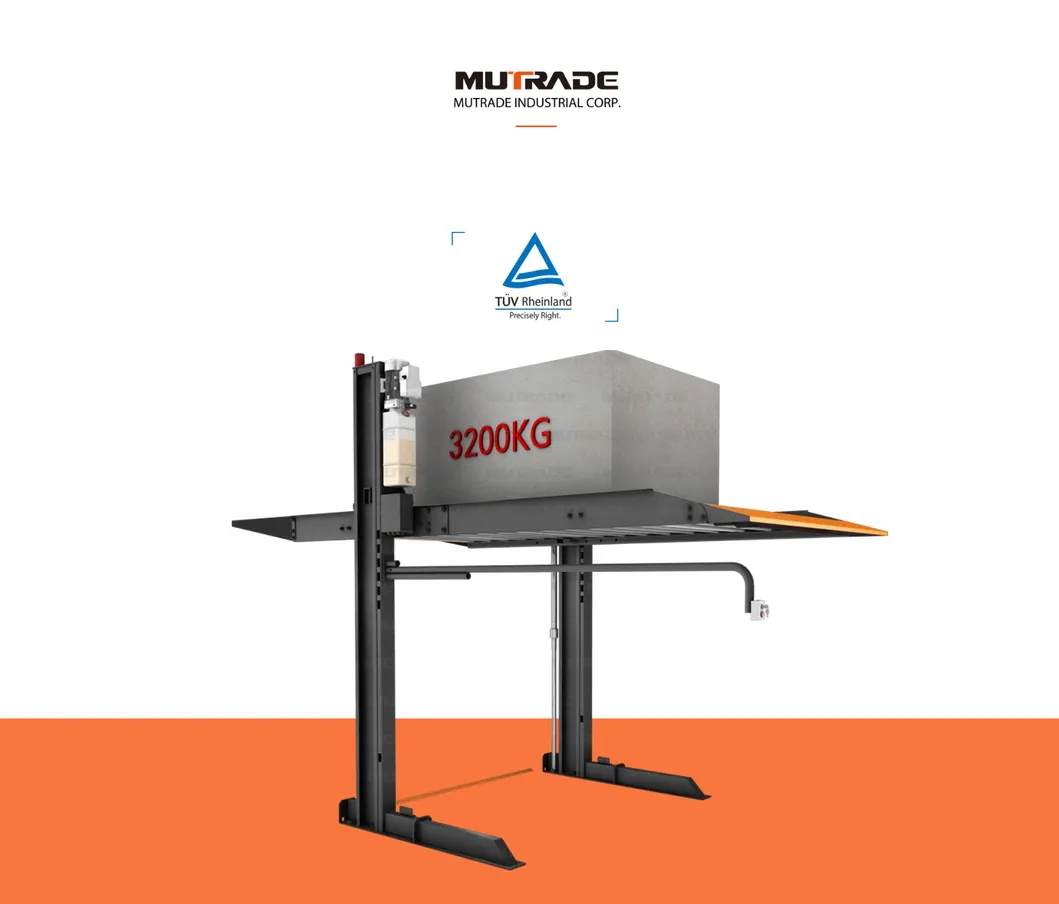

TUV Compliant Structure

Frequently Asked Questions

What types of vehicles are compatible with this lift?

The system is designed for sedans and small SUVs with a maximum weight capacity of up to 2700kg depending on the specific model configuration.

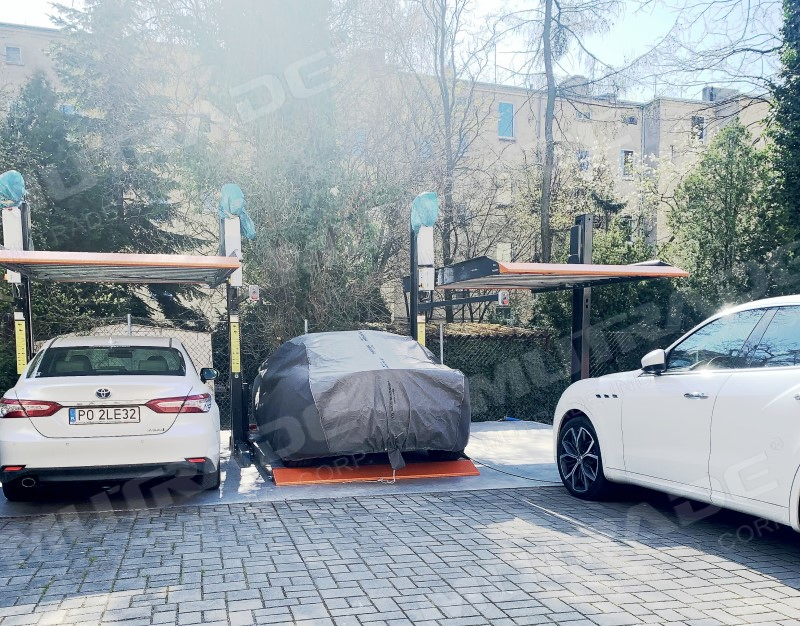

Can this parking lift be installed outdoors?

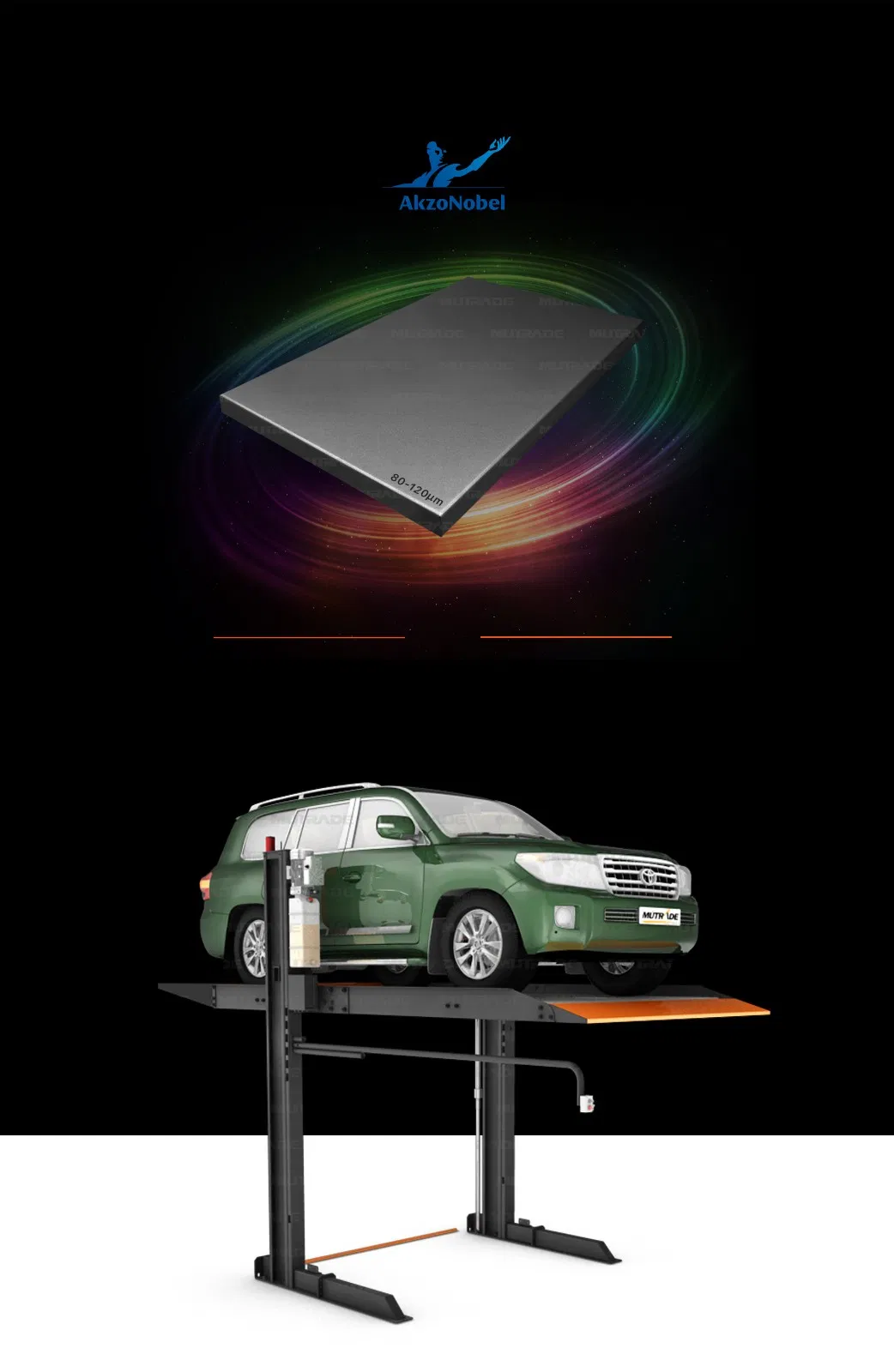

Yes, the equipment is suitable for both indoor and outdoor installations. For outdoor use, the AkzoNobel powder coating provides excellent weather resistance.

Is the lifting platform safe from falling?

Absolutely. It features a dynamic mechanical anti-falling lock with locking tabs every 100mm along the posts to ensure the car remains secure at any height.

Does the lift consume a lot of electricity?

No. While it uses a 2.2Kw motor to lift the platform, the descent is driven entirely by gravity, meaning zero power consumption when lowering the vehicle.

What is the advantage of the "Sharing Post" design?

The shared column design allows multiple units to be connected side-by-side, which reduces the overall footprint and provides more usable width for parking.

What kind of maintenance is required?

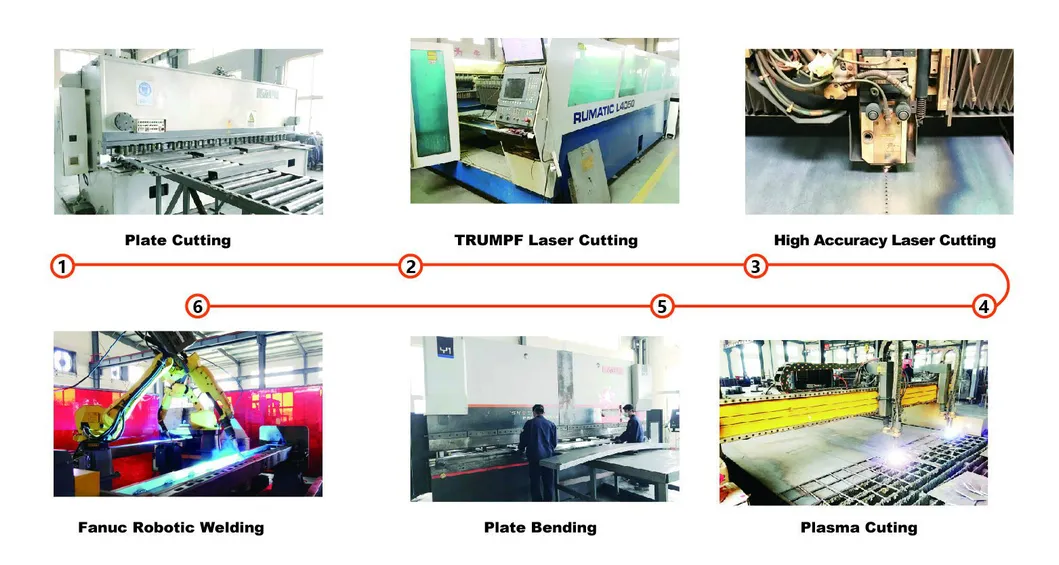

Thanks to the advanced German-structured hydraulic system and robotic welding, the unit is highly reliable and requires minimal maintenance compared to traditional lifts.
