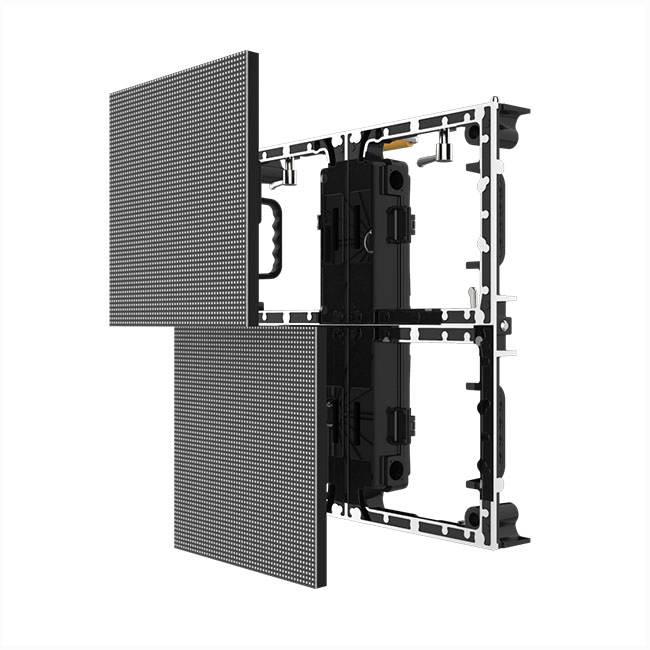

SMD P4.8 Outdoor LED Video Wall Screen P4 Indoor Rental LED Display Panel

📊 Basic Specifications

Model NO.

ELO-4.8

Pixel Pitch

4.81mm

Display Function

Video, Image, Text

Power Consumption

224W/Sqm (Avg)

Pixel Density

10000 dot / m²

Scanning Mode

1/9 Scan

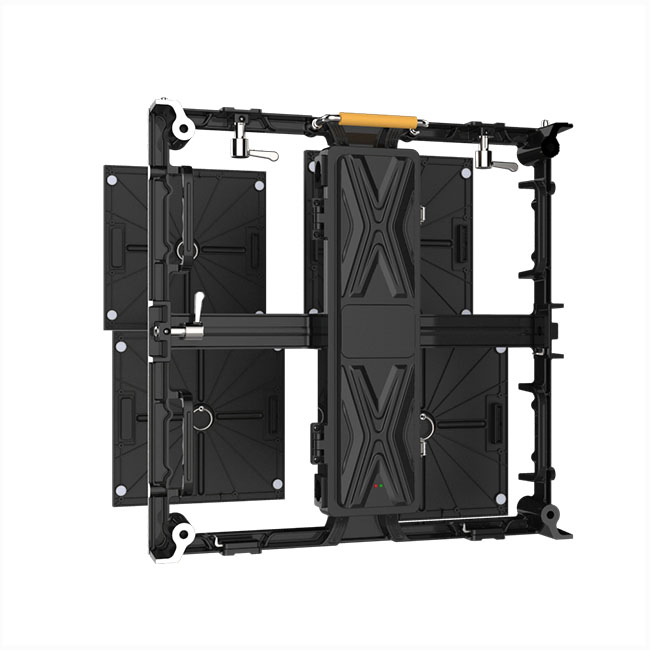

Cabinet Material

Die Cast Aluminum

Cabinet Size

500mm*500mm

Maintenance

Back Service

Certification

CE, FCC

📺 Product Description

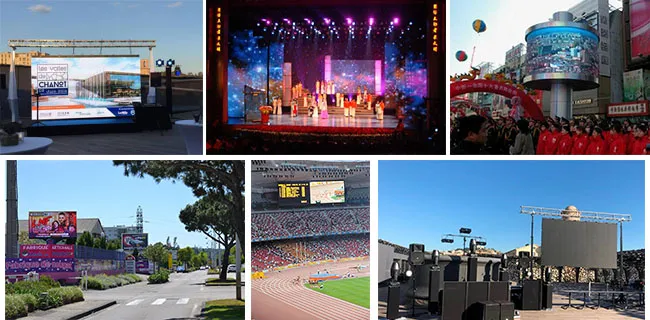

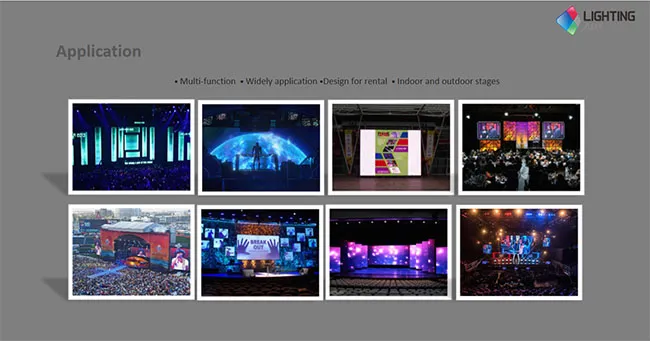

Applications:

Advanced LED screen series designed for easy installation and removal. Ideal for outdoor/indoor commercial advertising billboards, stages, banks, stock exchange centers, theme parks, airports, schools, exhibition halls, meeting rooms, cinemas, and hotels.

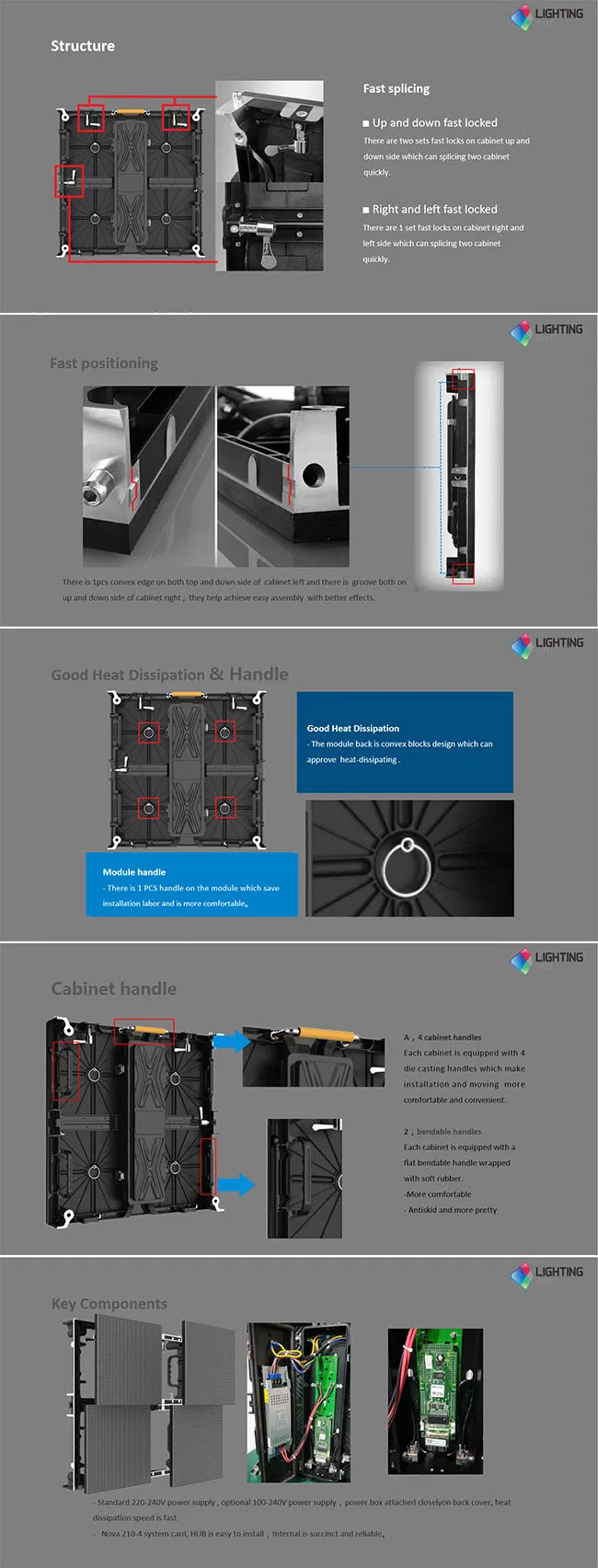

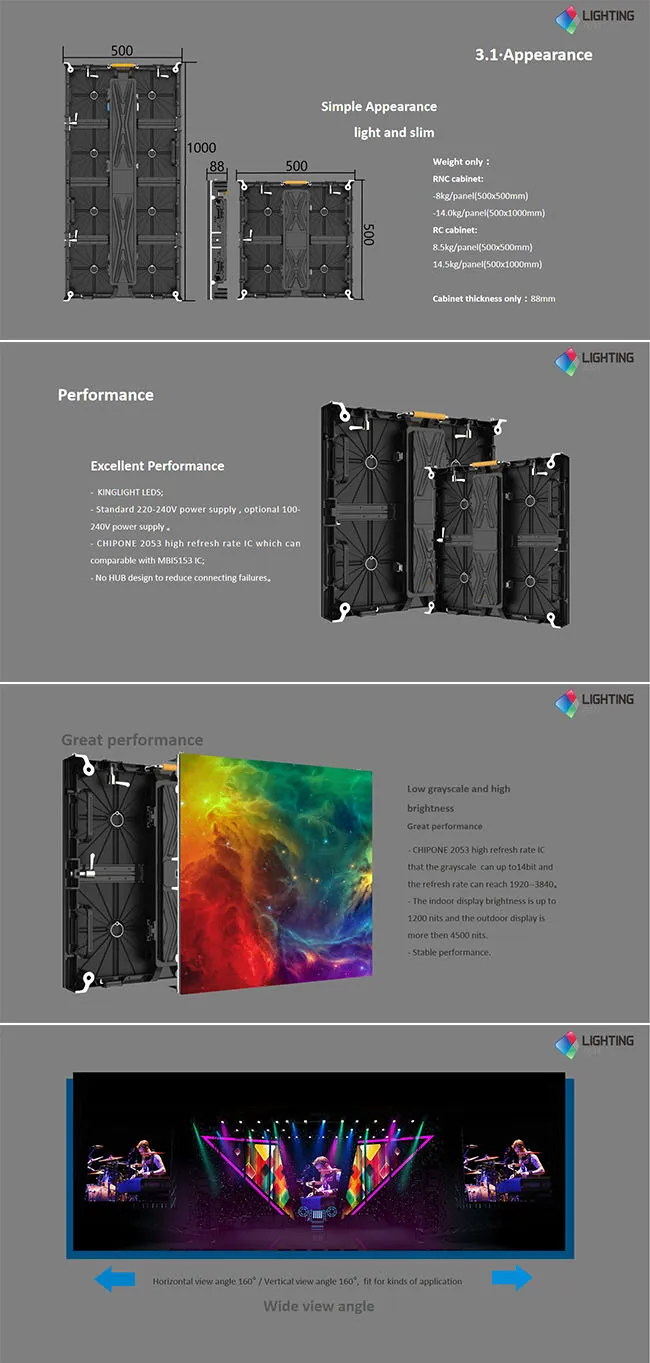

⭐ Key Features

Slim and light weight design, convenient for installation and save transportation costs.

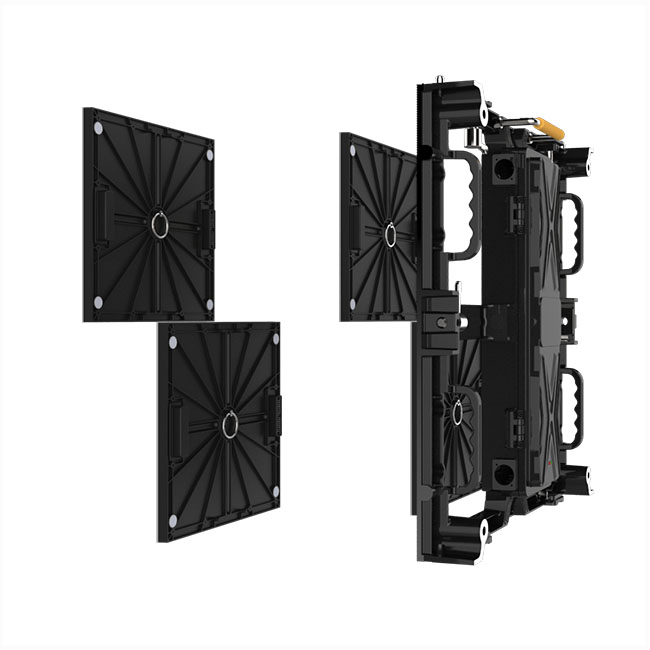

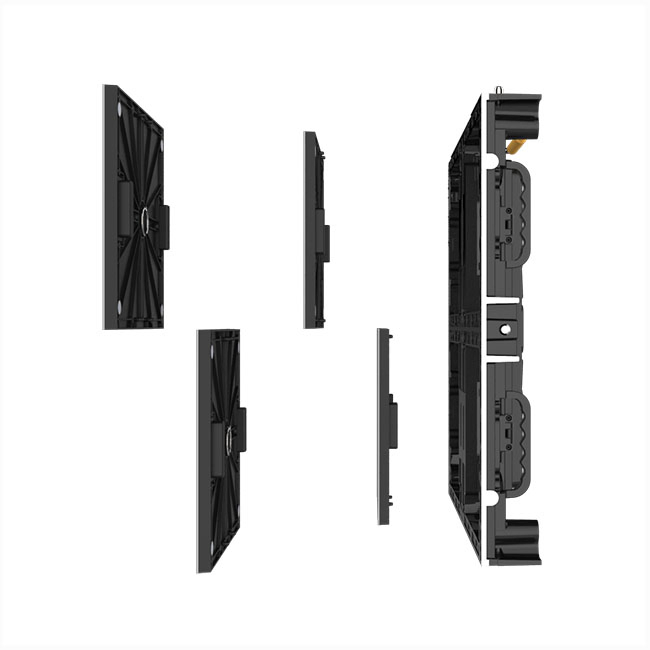

Die-casting aluminum forming process, cabinet tolerance controlled within 0.1mm.
Whole screen flatness with stitching gaps less than 0.5mm using special connection locks.
Low power consumption PCB and anti-noise cabinet design.
Supports hanging and floor-standing installation; fast stitching without tools.
Front service option and angle adjustment supported.

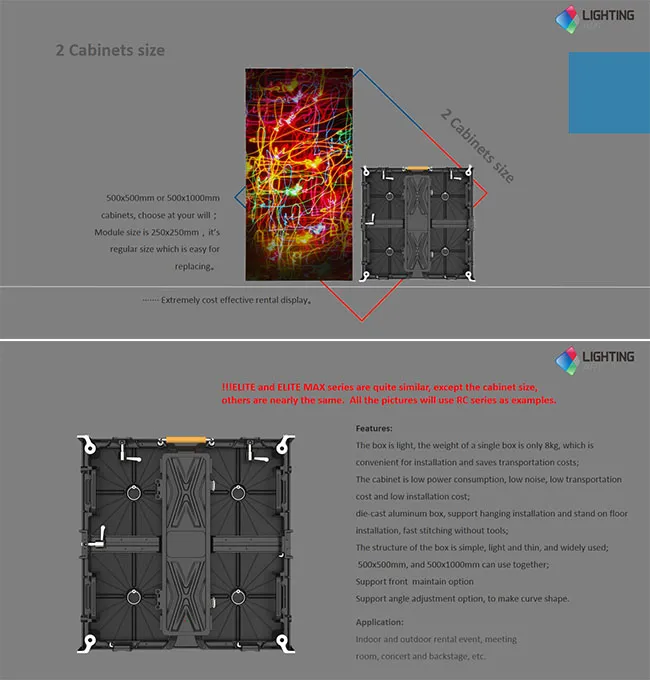

Compatible use of 500x500mm and 500x1000mm cabinets.

📝 Technical Specifications

No.	Parameter	ELI-2.84	ELI-3.91	ELI-4.81	ELO-3.91	ELO-4.81	ELO-5.68	ELO-6.25
1	Pixel Pitch (mm)	2.84	3.91	4.81	3.91	4.81	5.68	6.25
2	Environment	Indoor			Outdoor
3	Cabinet Size (mm)	500x500x88
4	Weight (kg)	7.5			8
5	LED Encapsulation	SMD2020	SMD2020	SMD2020	SMD1921	SMD1921	SMD2727	SMD3535
6	Brightness (NIT)	800	800	800	5000	5000	5000	5000
7	Refresh Rate (Hz)	3840
8	Protection Grade	IP30			IP65

🏭 Factory & Production

Expertise in designing and manufacturing high-end rental LED display screens. All accessories including hanging bars, sending cards, video processors, and flight cases can be provided for complete projects.

Production time for 0-200 m²: Approximately 25 days (including aging test).

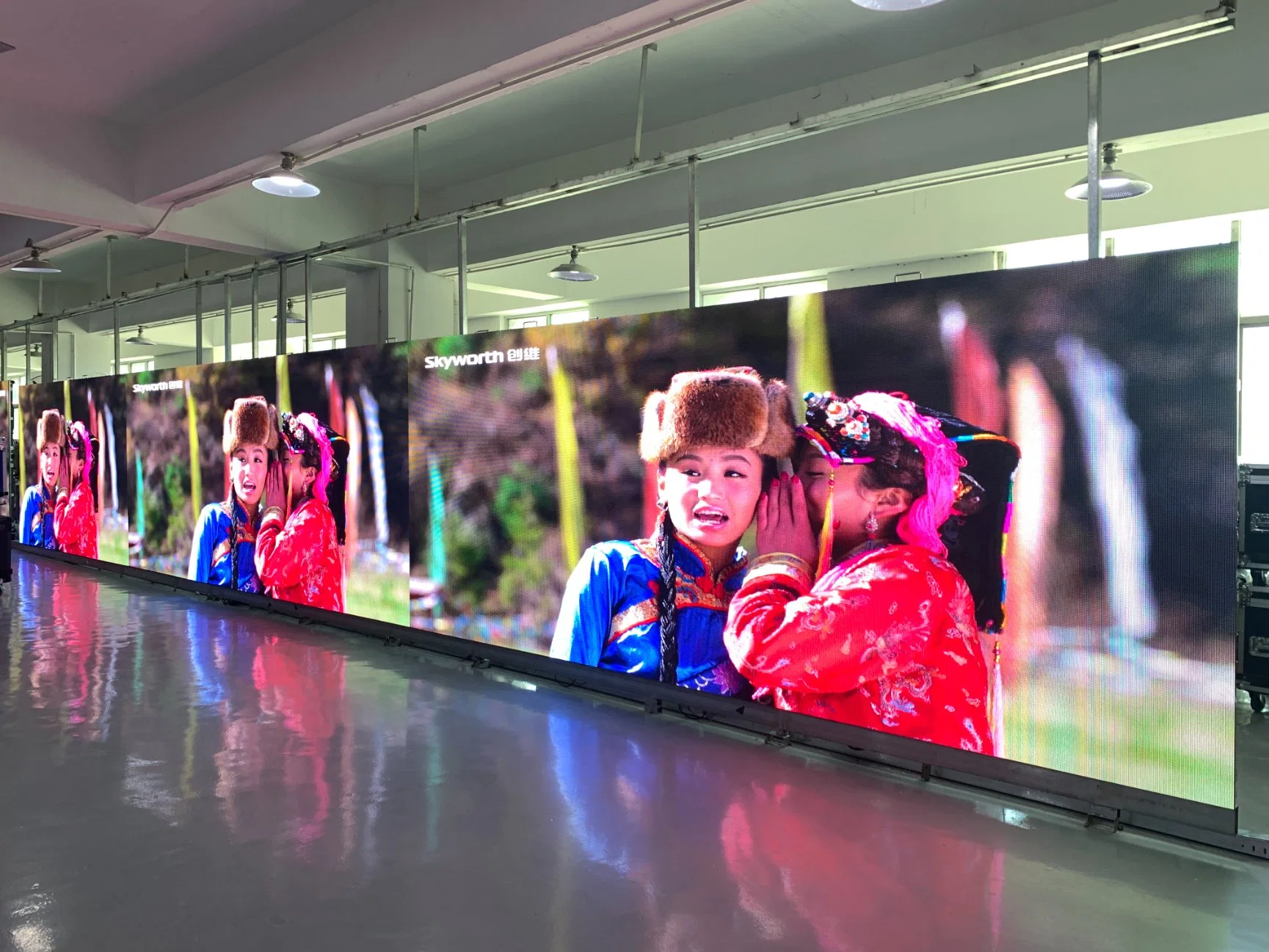

Each module undergoes rigorous aging and grayscale testing.

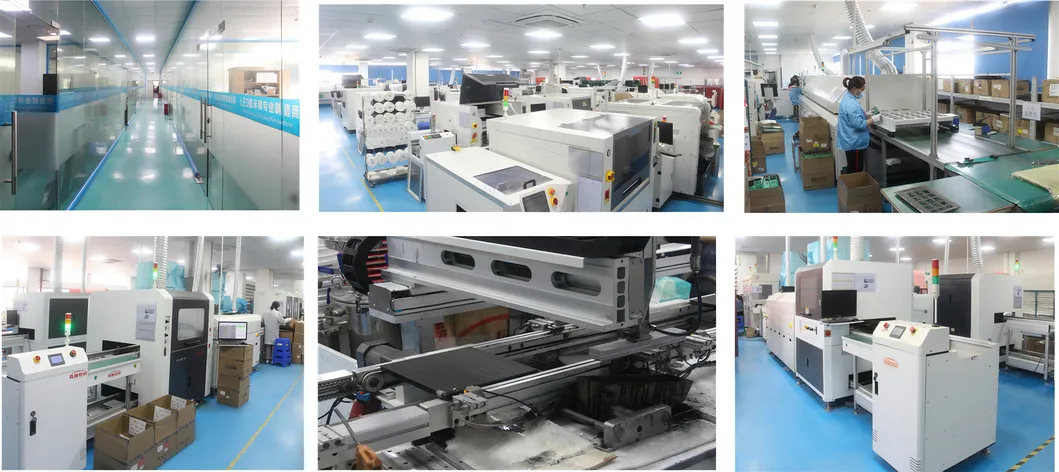

High technology automatic machines ensure precision.

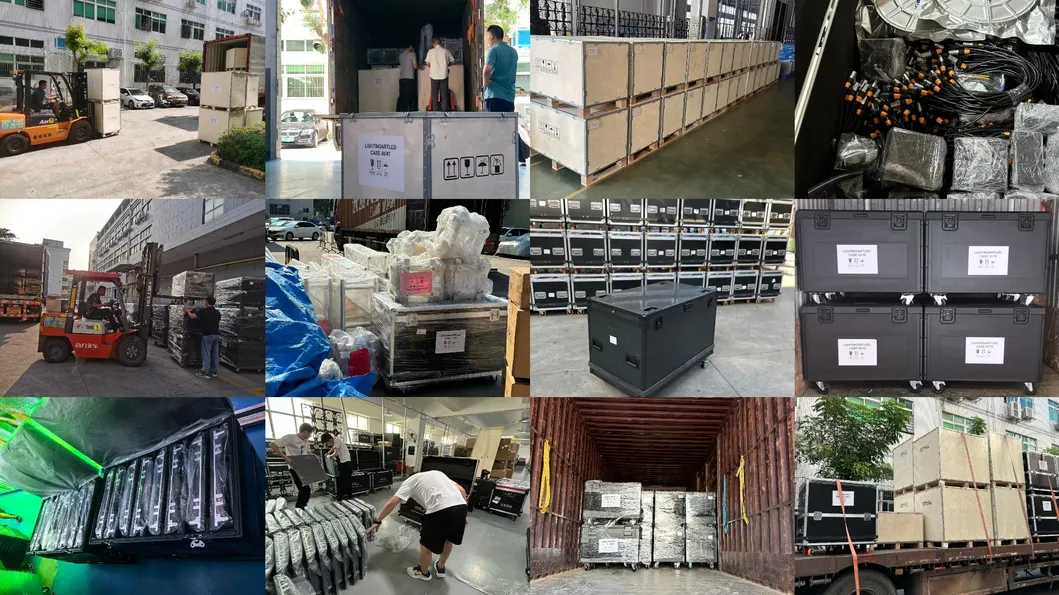

Packaging options: Plywood case or Flight case.

❓ Frequently Asked Questions

What are the main applications for these LED screens?

They are ideal for commercial advertising, stage backgrounds, airports, cinemas, meeting rooms, and various public facilities both indoors and outdoors.

What is the advantage of die-casting aluminum cabinets?

Die-casting aluminum provides high precision (within 0.1mm tolerance), lightweight handling, and superior flatness for seamless large-scale displays.

Can I mix different cabinet sizes?

Yes, our design allows 500x500mm and 500x1000mm cabinets to be used together for flexible screen dimensions.

Do you support front maintenance?

Yes, front service options are available to allow for easier maintenance in tight installation spaces.

What is the typical production lead time?

For orders up to 200 m², the production time is usually around 25 days, which includes the essential aging and quality testing period.

What protection grades are available?

Indoor models typically feature IP30 protection, while outdoor models are rated at IP65 for weather resistance.
